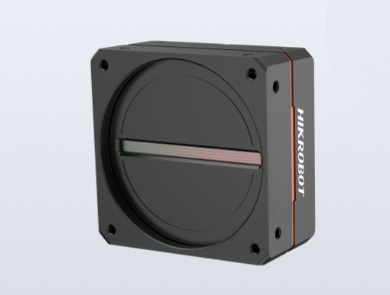

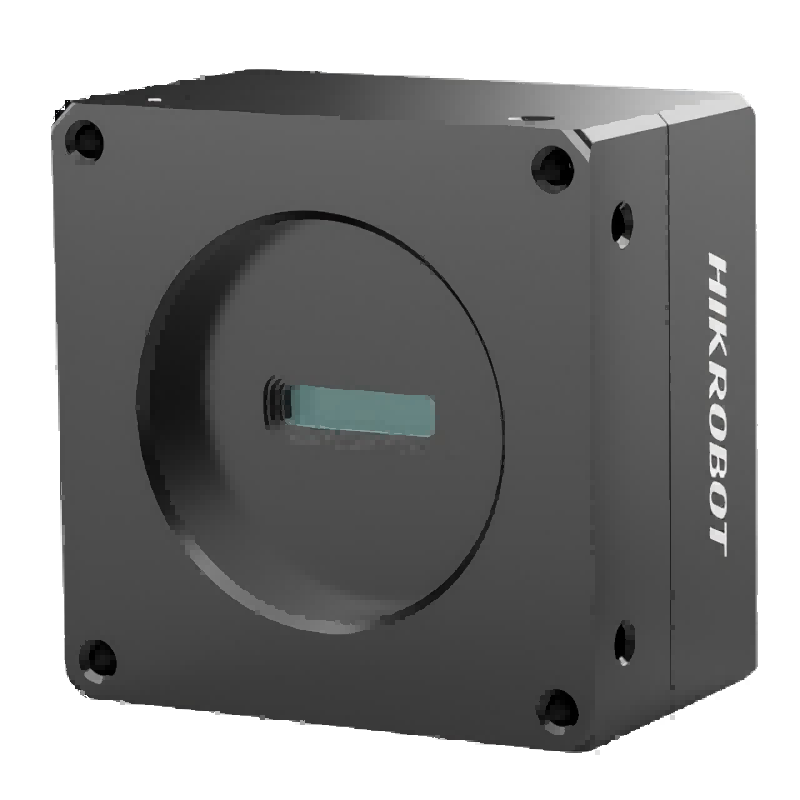

| The High-Resolution Industrial Line Scan Camera is an advanced imaging solution designed for continuous motion or large-area static target detection in industrial environments. It utilizes a linear image sensor to capture images via a “line-by-line scan + motion synchronization” process, offering superior image resolution compared to traditional area scan cameras. This makes it ideal for applications in printing, textiles, lithium battery, and photovoltaics industries.
Core Advantages:
1. Line-by-Line Scanning:
The camera assembles 2D images through the sequential scanning of one pixel row at a time, relying on the relative motion between the camera and the target (e.g., conveyor belts or constant-speed scanning). This enables the capture of ultra-long or wide targets, such as continuous rolls of printed paper or textiles, surpassing the limitations of area scan sensors.
2.Ultra-High Resolution:
With pixel counts ranging from thousands to tens of thousands per line, the resolution of the stitched image exceeds that of comparable area scan cameras in the same price range, making it perfect for precision defect detection like micron-level print defects, fine cracks in lithium electrodes, and surface scratches on photovoltaic panels.
3. High Scan Frequency:
With line rates reaching up to several thousand kHz, this camera adapts to high-speed production lines without sacrificing imaging accuracy. It is ideal for applications like surface quality inspection on fast-moving thin-film production lines, running at speeds exceeding 200 meters per minute.
4.Global Shutter for Dynamic Scenes:
The camera features a global shutter (synchronized exposure line-by-line) to eliminate image distortion or motion blur in high-speed moving targets, ensuring accurate image stitching. Exposure times are adjustable to suit a wide range of reflective targets, such as metal sheets and transparent films.
5.High Data Throughput:
Due to its ultra-high resolution and high line frequency, the camera generates a large amount of data, requiring high-performance transmission interfaces like Camera Link HS and CoaXPress 2.0, and specialized back-end visual processing platforms to handle the data without lag.
6.Industrial Durability:
Built to withstand harsh environments, the camera features a wide operating temperature range (-20°C to 60°C) and high protection ratings (IP65/IP67), making it suitable for dusty, humid, or extreme temperature environments. Special models are also available with electromagnetic interference protection, ideal for applications in industries like lithium battery production and metallurgy. |
