Variable Pitch Slide Module – Precision Servo-Driven, Equal/Unequal Spacing, Multi-Slider Synchronous Motion

High Precision Equal Pitch Module for Flexible Manufacturing – Multi-Station, High Load Capacity, Modular, Smart Control for CNC, Robotics & Automotive Applications

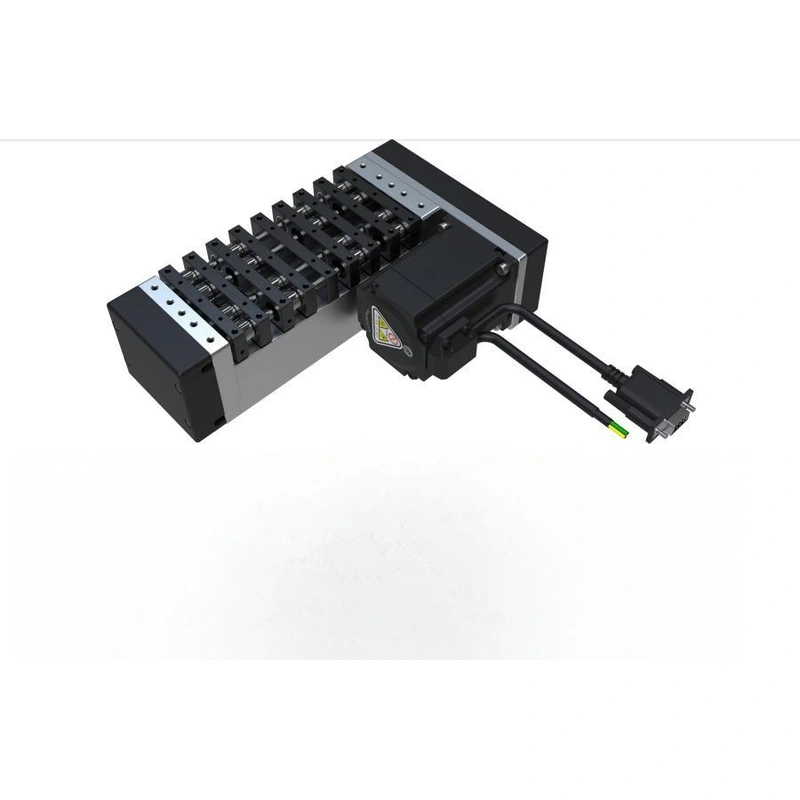

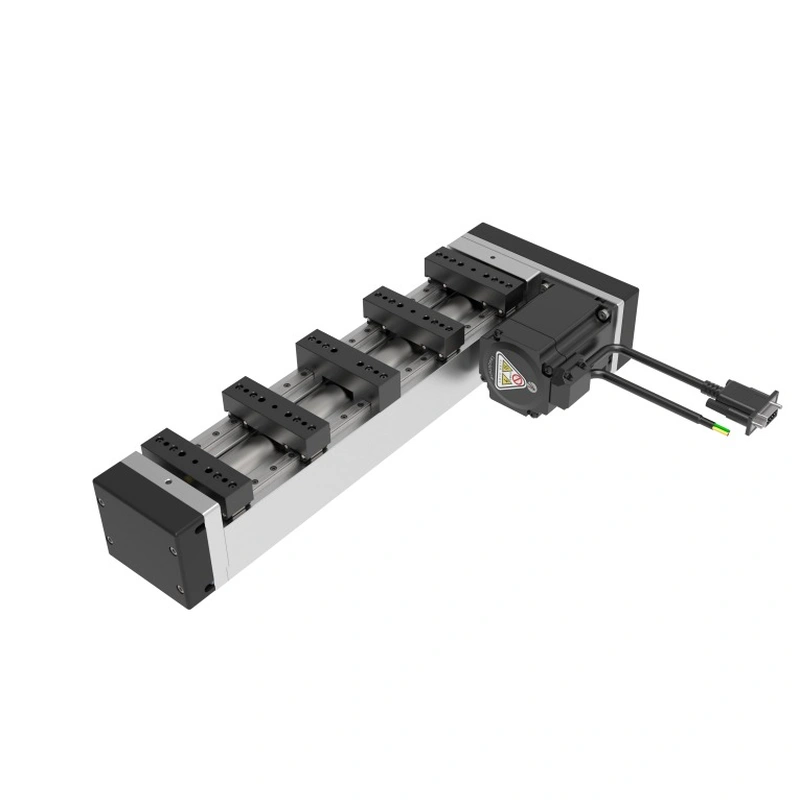

The variable pitch slide module is a high‑performance linear motion unit engineered for precision spacing adjustment and multi‑station positioning. Driven by servo or stepper motors with ball screw drive and high‑rigidity linear guides, it converts rotary motion into smooth linear movement with closed‑loop feedback for exceptional accuracy.

Featuring repetitive positioning accuracy up to ±0.01mm, it supports equal and unequal pitch control, with 6–18 sliders operating synchronously or independently via bus control. Built with lightweight 6063‑T5 aluminum alloy, it combines high rigidity, low deflection, fast speed (up to 2m/s), and long service life (500,000+ cycles)

Dynamic Pitch Adjustment Linear Module with Multi-Station Synchronous Drive

Core Advantages

• 1. Ultra-High Precision & Flexible Pitch Control

  Repetitive positioning accuracy up to ±0.01mm–±0.025mm, supporting equal & unequal pitch adjustment with pitch spacing error ≤0.05mm. It accommodates 6–18 sliders for synchronous or independent motion via EtherCAT/CAN bus, delivering micron-level precision for automated handling.
• 2. High Rigidity, High Speed & Long Service Life

  Constructed with 6063‑T5 lightweight aluminum alloy for strong rigidity and low deflection; no-load speed up to 1–2m/s, full-load speed up to 230mm/s, opening/closing cycle as fast as 2 seconds. Endures 500,000 dynamic load cycles without cracking, with low maintenance and eco-friendly recyclability.
• 3. Strong Adaptability & Versatile Control

  Works in -10℃~60℃, protection class up to IP67; supports horizontal/vertical mounting, customizable stroke (e.g., 500mm). Driven by servo/stepper motors with closed-loop feedback (encoder/linear scale) for stable, reliable operation under diverse loads and harsh conditions

      Application

• 3C & Consumer Electronics

  Camera module assembly, lens arranging, chip handling, precision component positioning & testing.
• Semiconductor & New Energy (Lithium Battery)

  Wafer sorting, cell inspection, battery module loading/unloading, automated transfer in production lines.
• Medical & Laboratory Automation / Packaging & Daily Chemicals

  IVD pipetting, test tube sorting, automatic cartoning, precision dispensing, blow molding & high-speed packaging
