High Precision EtherCAT 5-Phase Stepper Driver
Leadshine DM5 series premium 5-phase stepper drivers include pulse control and high-speed EtherCAT bus versions, thoroughly overcoming performance drawbacks of traditional 2-phase stepping systems. Delivering ultra-precise positioning, low vibration, fast response and 100Mb/s real-time EtherCAT communication with compact design & simple operation, it acts as a cost-effective import replacement solution for high-precision industrial automation equipment.

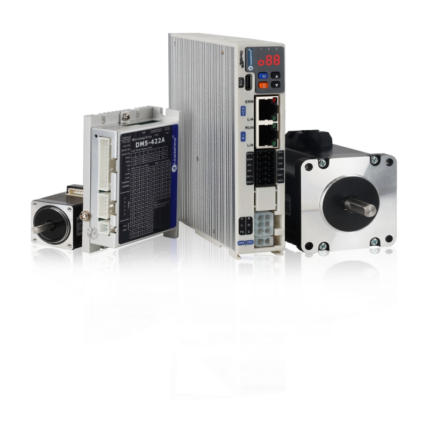

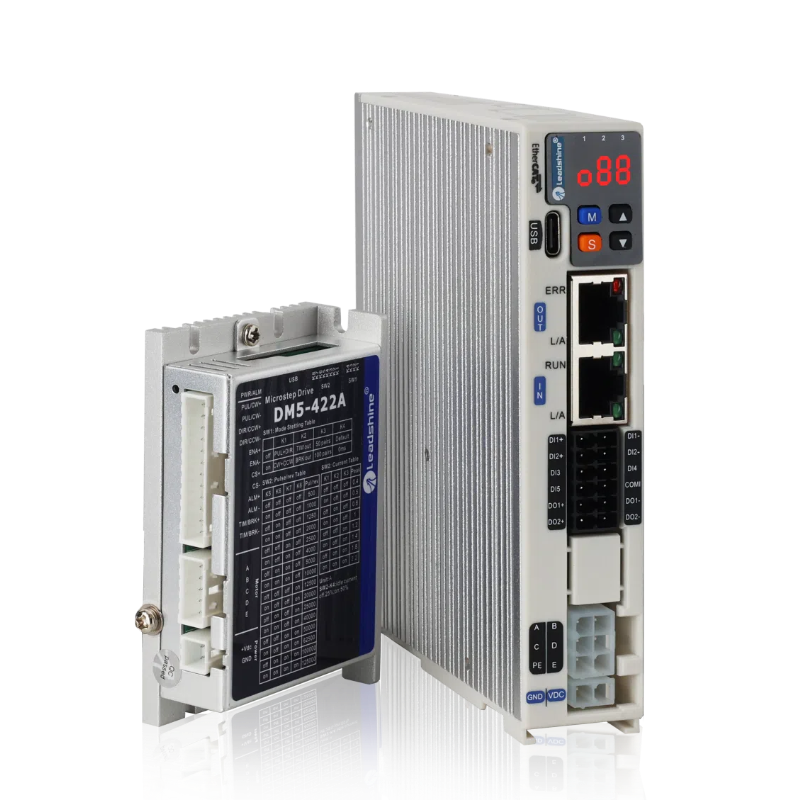

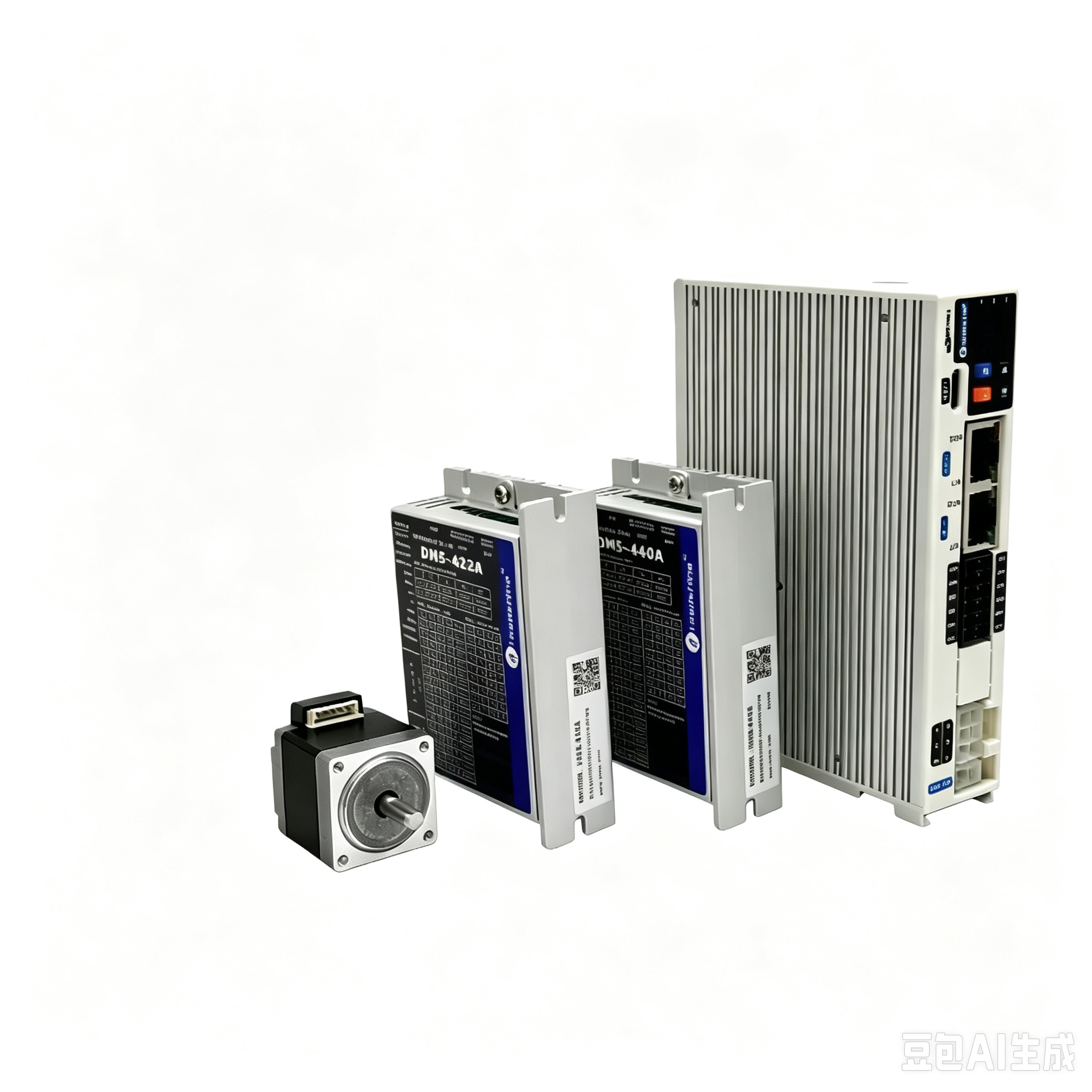

Leadshine DM5 Series 5-Phase Stepper Driver
Leadshine DM5 series premium 5-phase stepper drivers include pulse control and high-speed EtherCAT bus versions, thoroughly overcoming performance drawbacks of traditional 3-phase stepping systems. Delivering ultra-precise positioning, low vibration, fast response and 100Mb/s real-time EtherCAT communication with compact design & simple operation, it acts as a cost-effective import replacement solution for high-precision industrial automation equipment.
Crafted with two decades of accumulated stepper drive development expertise, Leadshine DM5 Series represents our newly upgraded high-end 5-phase stepper driver lineup, split into two configurations: pulse-type and EtherCAT bus-type (DM5-EC).
Compared with conventional 3-phase stepper drivers, DM5 series drastically optimizes overall operating performance: it features superior positioning accuracy, minimized speed fluctuation and torque ripple across full speed ranges, faster acceleration, higher maximum running speed and greatly reduced vibration & operational noise. The DM5-EC variant adopts standard EtherCAT slave communication architecture, supporting 100Mb/s high-speed fieldbus transmission to realize real-time motion control and synchronous data transmission for multi-axis stepping systems. Compact structure, flexible mounting options, abundant built-in functions and user-friendly commissioning collectively make it an ideal alternative to expensive imported stepping drive systems for premium automation equipment.

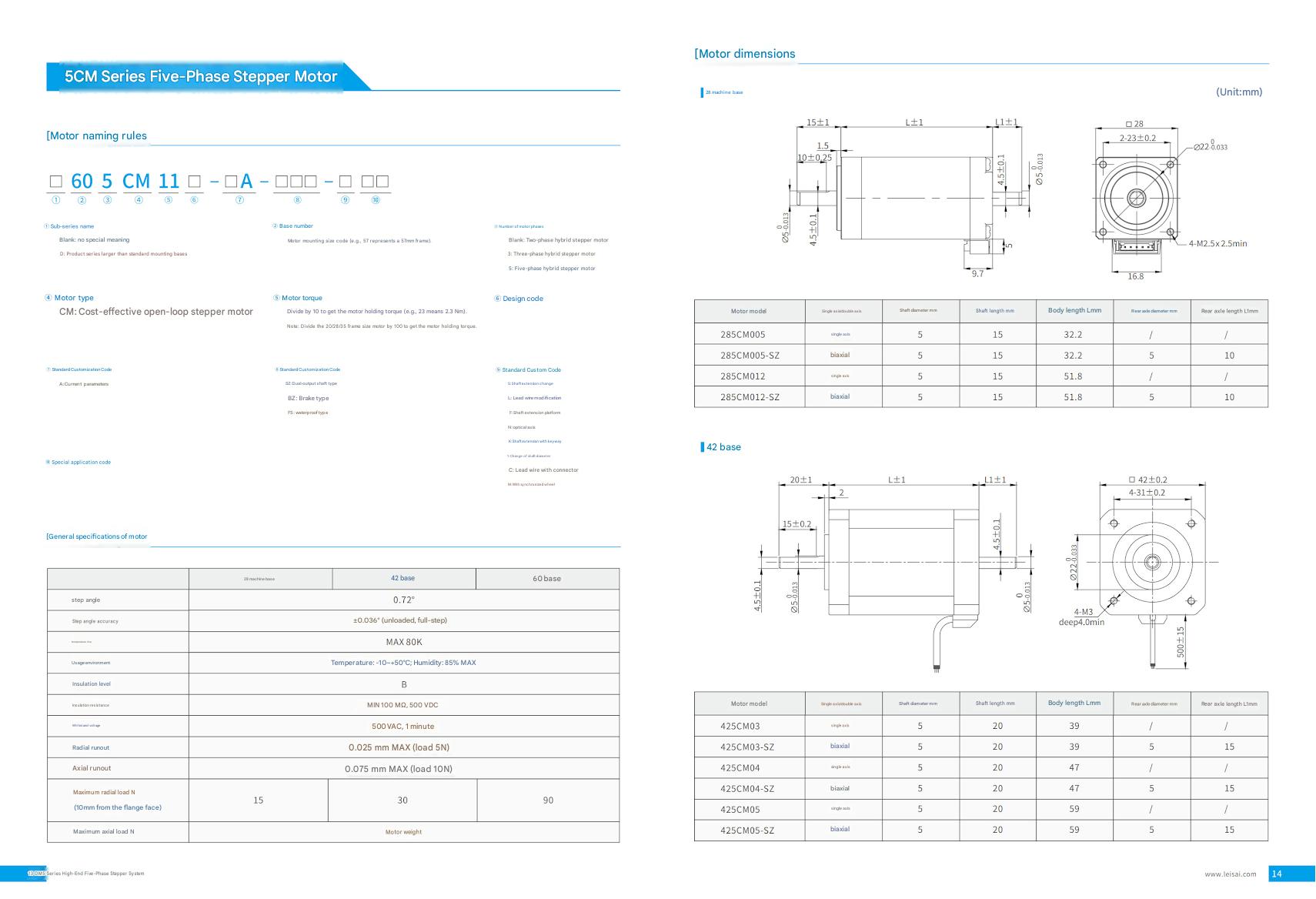

5 Phase Stepper Motor VS 5 Phase Stepper Motor
| Comparison Dimension | 3-Phase Stepper Motor | 5-Phase Stepper Motor |
| Step Angle & Accuracy | Larger step angle, typically 1.5° or 3° | Smaller step angle, usually 0.72° or 0.36°; higher positioning accuracy |
| Output Torque | Relatively low output torque | More phases generate higher torque; stronger load-driving capability |
| Running Smoothness | Noticeable vibration and noise at low speeds; less smooth operation | Smoother operation; significantly reduced vibration and noise |
| Control & Cost | Simple control; easy driver design; lower cost | Complex control; requires more sophisticated drivers; higher cost |
| Typical Applications | General automation lines, basic CNC machines — moderate precision & stability requirements | Precision CNC machines, medical equipment, robotics — high-demand applications |

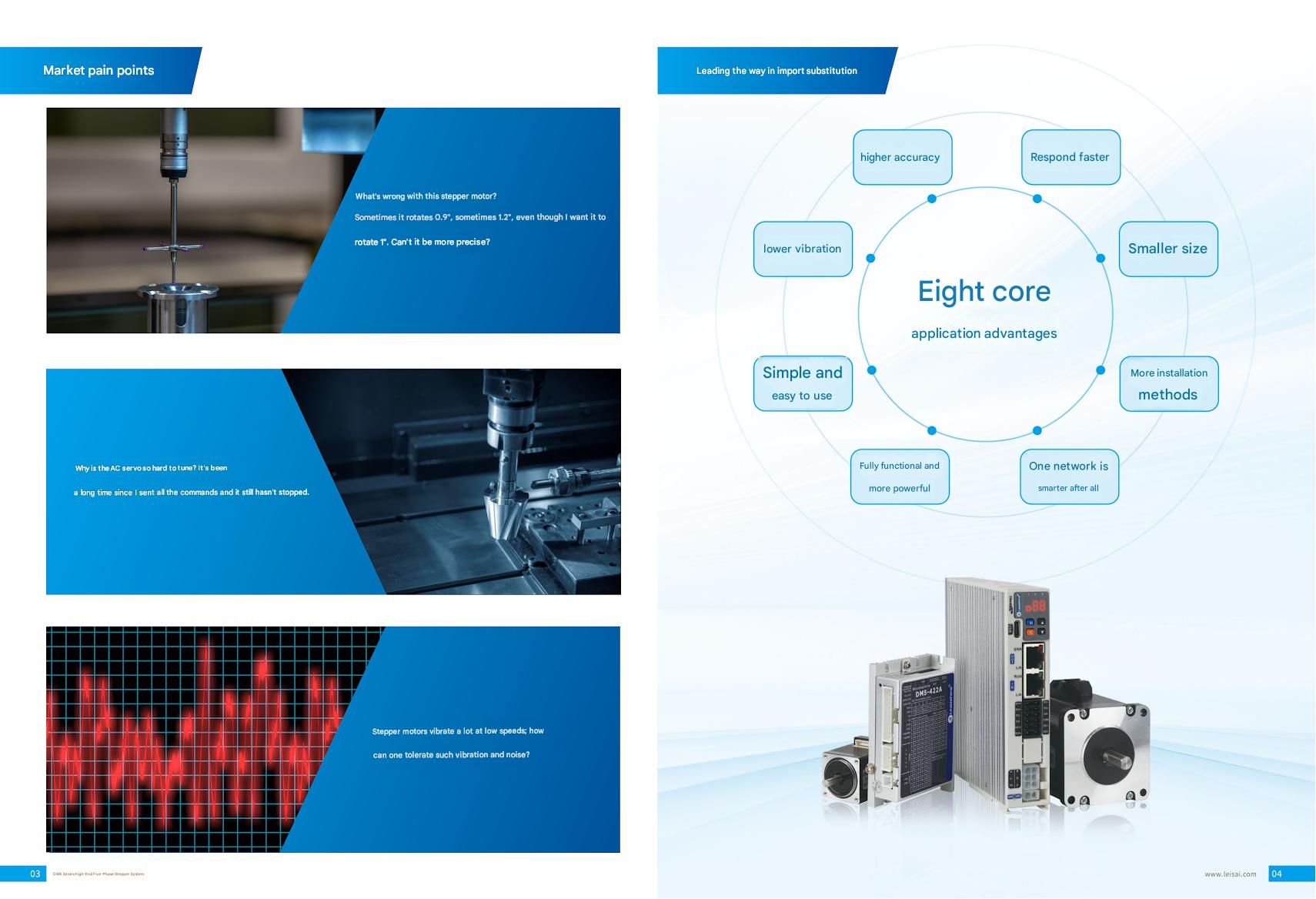

Leadshine DM5 Series 5-Phase Stepper Driver Core Advantages
*Superior Motion Performance
Outperforms traditional 2-phase stepper drives: higher positioning precision, tiny torque fluctuation, smoother full-speed operation, quicker acceleration, higher top speed and ultra-low vibration & noise
*Two Optional Control Modes
Pulse input version for general automation; DM5-EC EtherCAT bus version for multi-axis synchronous high-speed linkage
*100Mb/s Real-Time EtherCAT Bus Communication
Standard EtherCAT slave protocol, stable real-time data transmission, simplified wiring for multi-axis equipment
*Compact & Flexible Installation
Smaller body size, diverse mounting ways, saves cabinet installation space
*Easy Commissioning & High Stability
Intuitive operation, comprehensive functional modules, reliable continuous running for long-term industrial scenarios
*Premium Import Substitution Value
Matches imported high-end 5-phase stepping performance with more competitive total cost
Application Industries
The DM5-EC Series excels in high-precision industrial applications where accuracy and reliability are non-negotiable:
- Optical Communication Module
- Semiconductor Manufacturing:
- Medical Devices
- Precision Dispensing
- Laser Processing
- Wire EDM
- CNC Machining
- precision automation

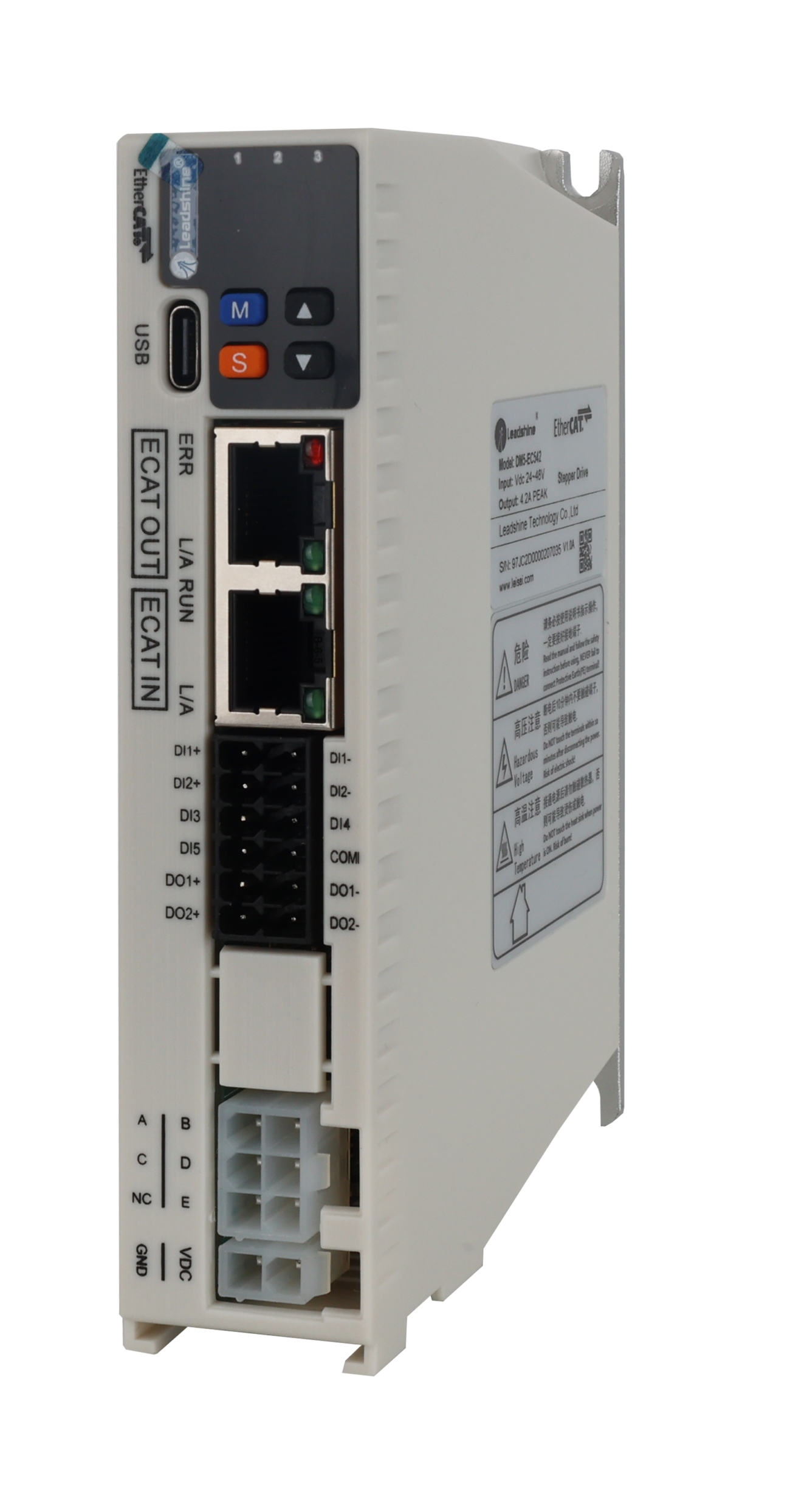

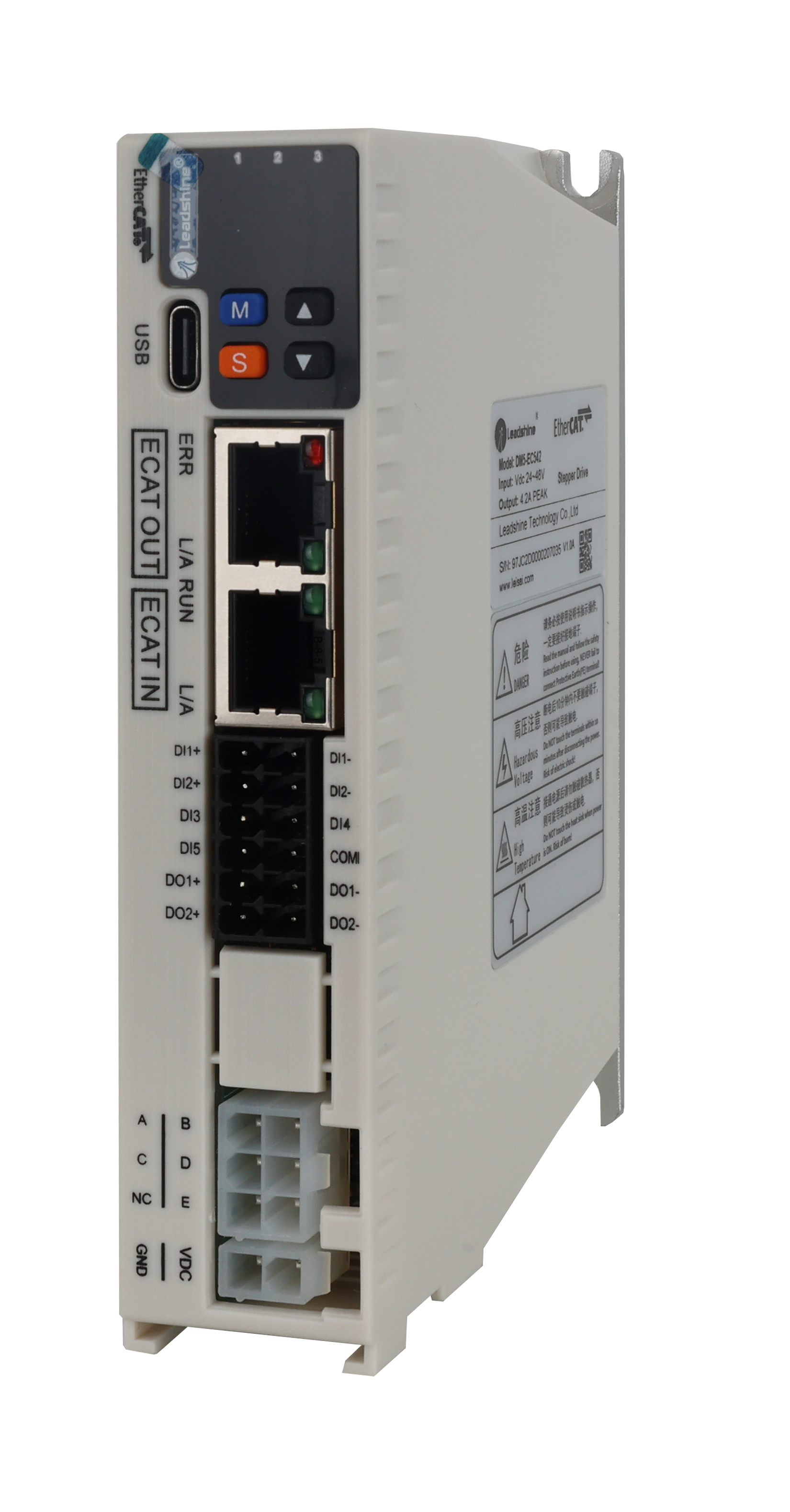

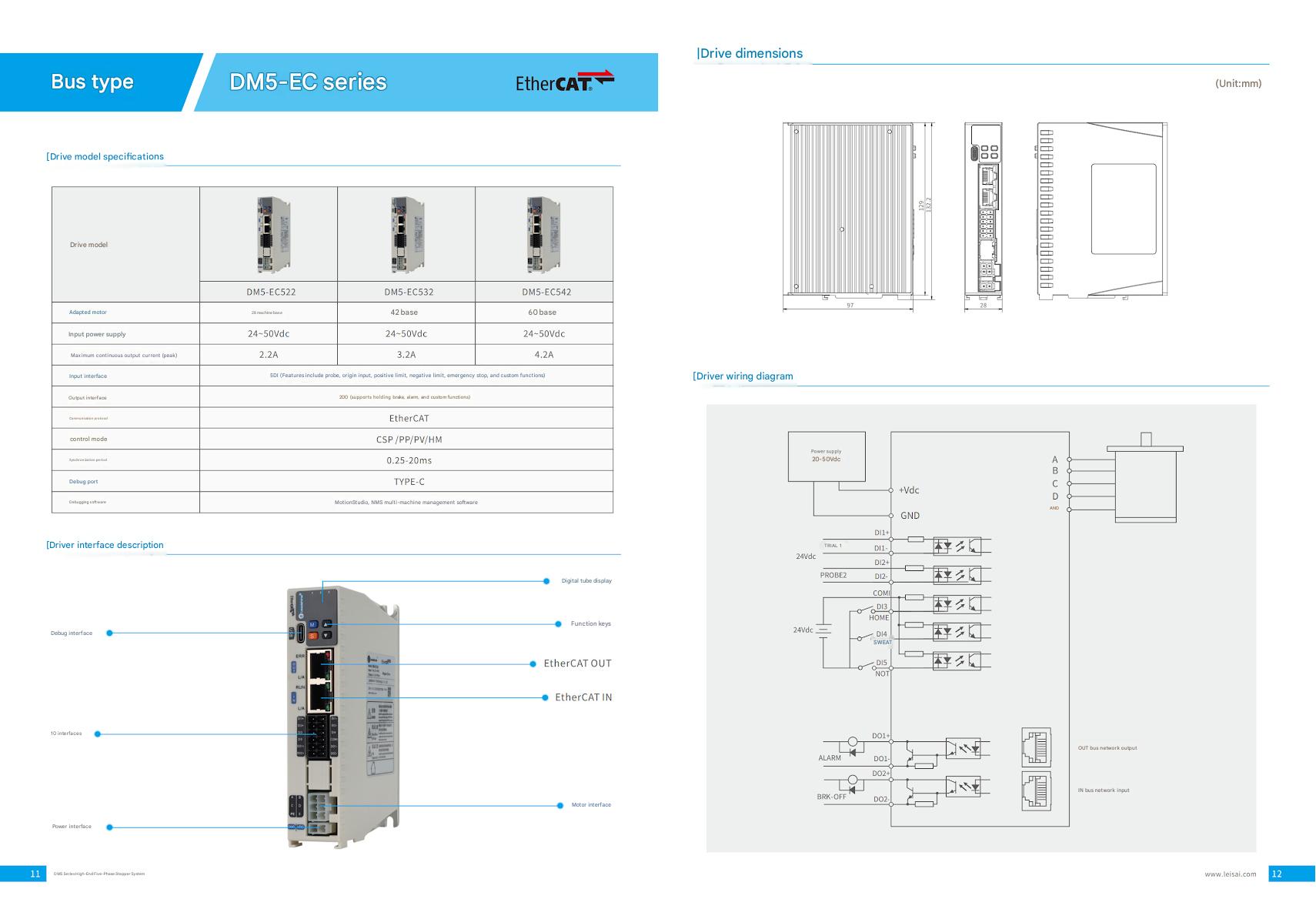

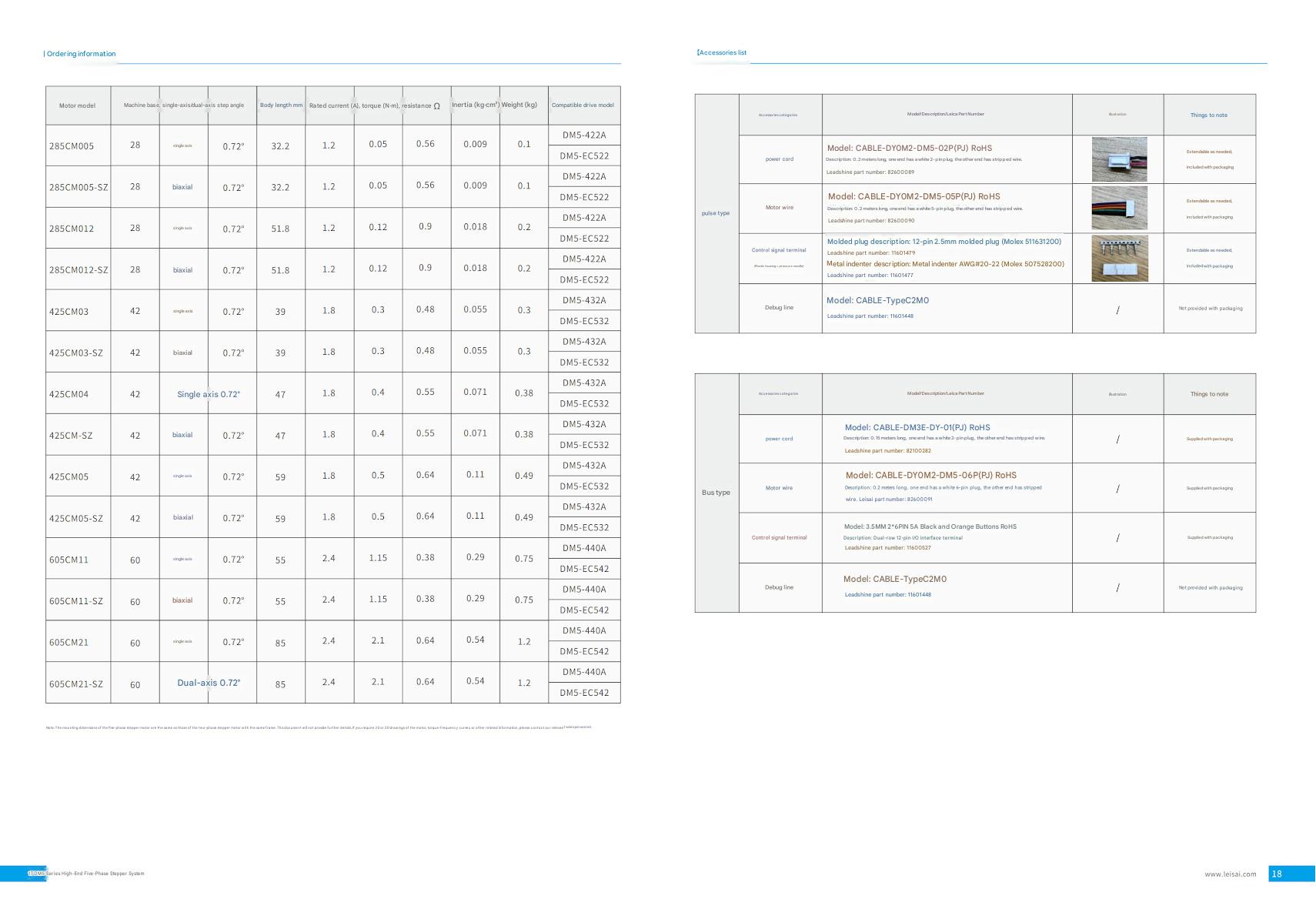

| Description |
5-Phase Stepper Driver |
|---|---|
| Model |
DM5-EC522, DM5-EC532, DM5-EC542 |
| Peak Current（A) |
2.2 |
| Rated Voltage(A） |
20~50VDC |
| Matching Motor |
28, 42, 60 |
| Size(mm) |
129*97*28 |
| Debug Port |
TYPE-C |
