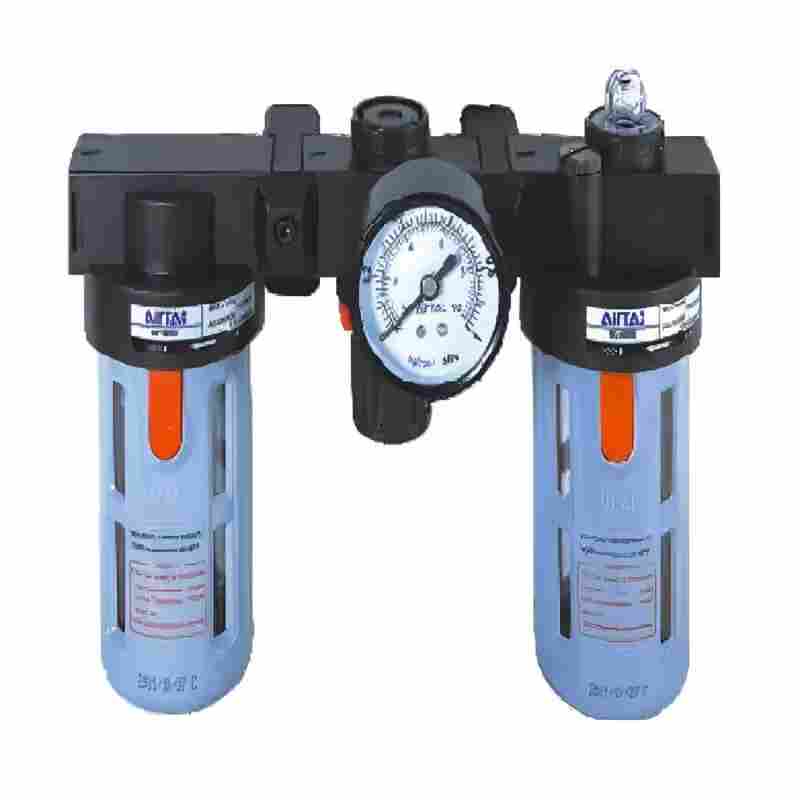

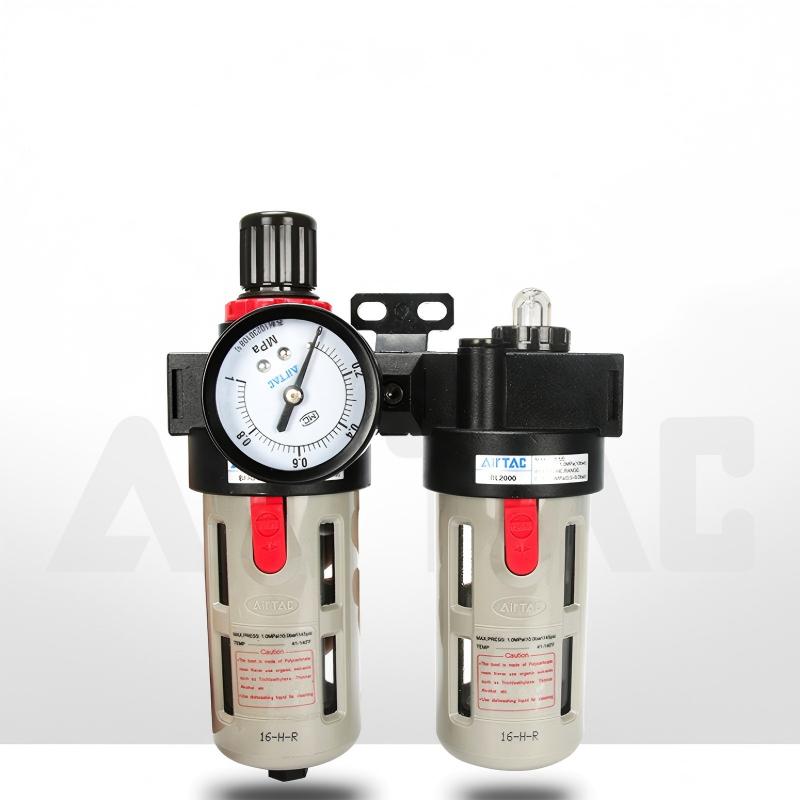

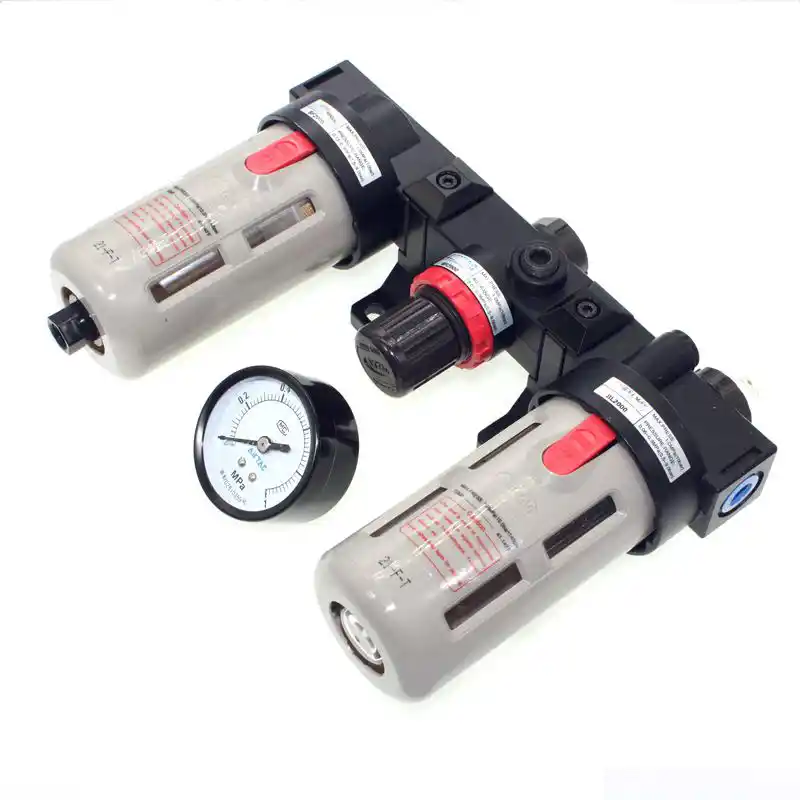

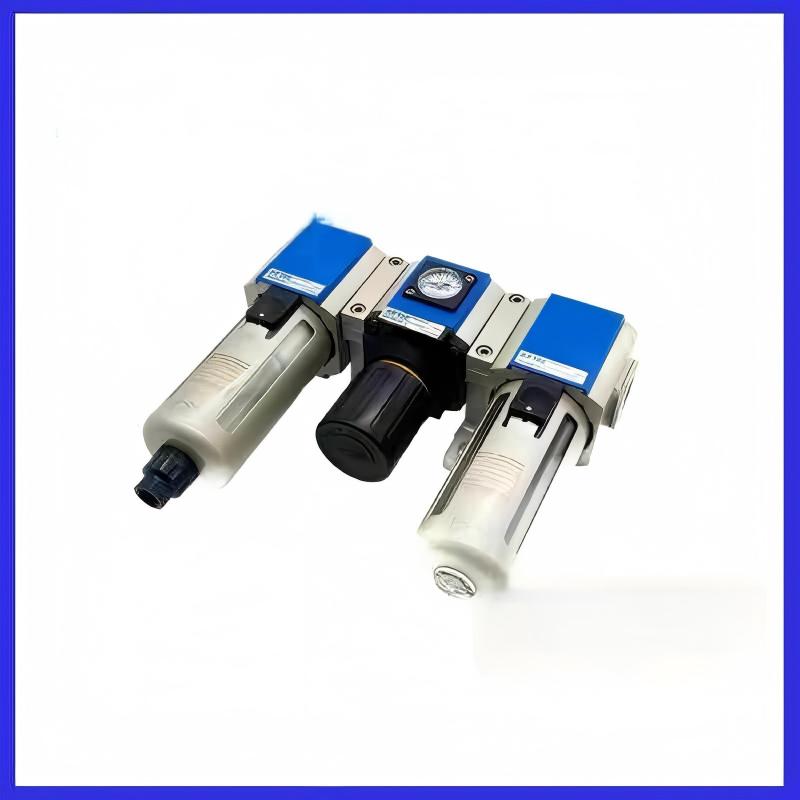

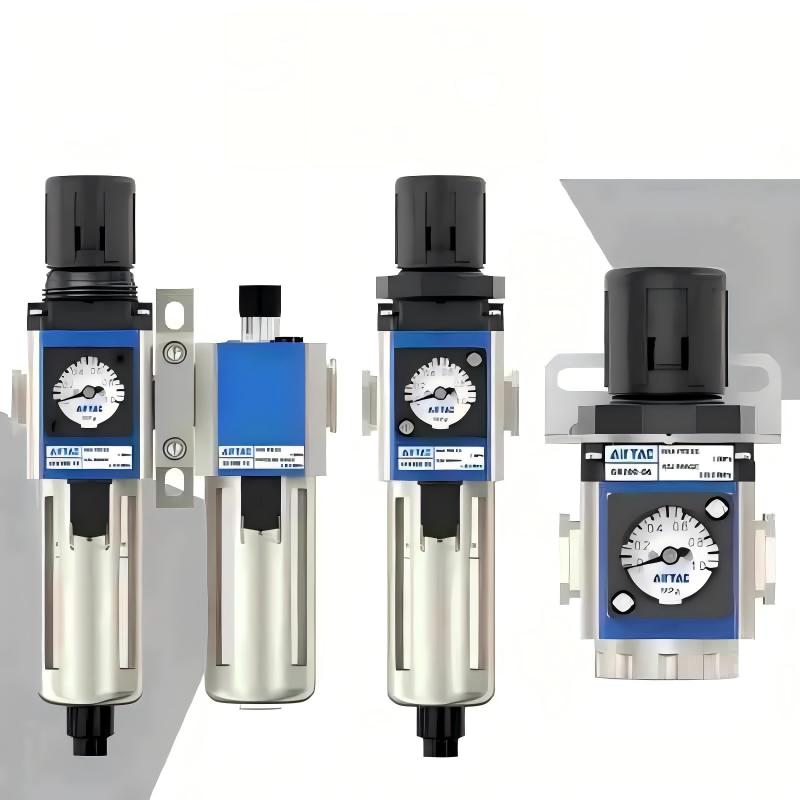

Airtac Air Source Treatment Three-in-One Unit Preparation Units Filter Regulator & Lubricator for Industrial Automation Systems

Airtac, SMC Air Source Treatment Three-in-One Unit integrates a high-efficiency filter, precision pressure regulator, and automatic lubricator to ensure clean, stable, and lubricated air for pneumatic systems in industrial automation. This compact solution reduces maintenance, saves space, and enhances system performance, making it ideal for robotic systems, manufacturing lines, and pneumatic tools. Perfect for improving efficiency and extending the life of equipment

Categories: Air Preparation Units, Airtac, Pneumatic Components

Description

AIRTAC Air Preparation Units (FRL) | Official Authorized Supplier | Industrial Pneumatic Solutions
🌟 Why AIRTAC Air Source Treatment Is the Heart of Your Pneumatic System
AIRTAC (AirTAC) air preparation units (also known as FRL units – Filter, Regulator, Lubricator) are the critical first line of defense for any compressed air system, ensuring clean, stable, and properly lubricated air reaches your automation equipment, machinery, and tools . As a Taiwanese brand with global recognition and official distribution through Ningbo AIRTAC Automation Industrial Co., Ltd., these components deliver unmatched reliability and performance for industrial applications worldwide .

⚙️ Core Components & Functions: Clean, Stable, Lubricated Air

AIRTAC air preparation elements can be flexibly combined to create custom solutions tailored to your specific needs:

1. Air Filter (5μm or 40μm Precision)

Removes 99.9% of moisture, oil droplets, and solid particles from compressed air
Protects downstream components (cylinders, solenoid valves, sensors) from premature wear
Available with manual, automatic, or differential pressure drainage (some models support non-stop operation drainage)
Filter bowl capacities: 10 mL to 230 mL (GFR series)

2. Pressure Regulator (0.05–0.9 MPa Adjustment Range)

Stabilizes output pressure with ±0.02 MPa precision for consistent performance
Features push-in self-locking mechanism to prevent pressure fluctuations from external interference
Balanced pressure adjustment design for stable regulation with minimal drift
Low-pressure models available (up to 0.4 MPa) for sensitive applications

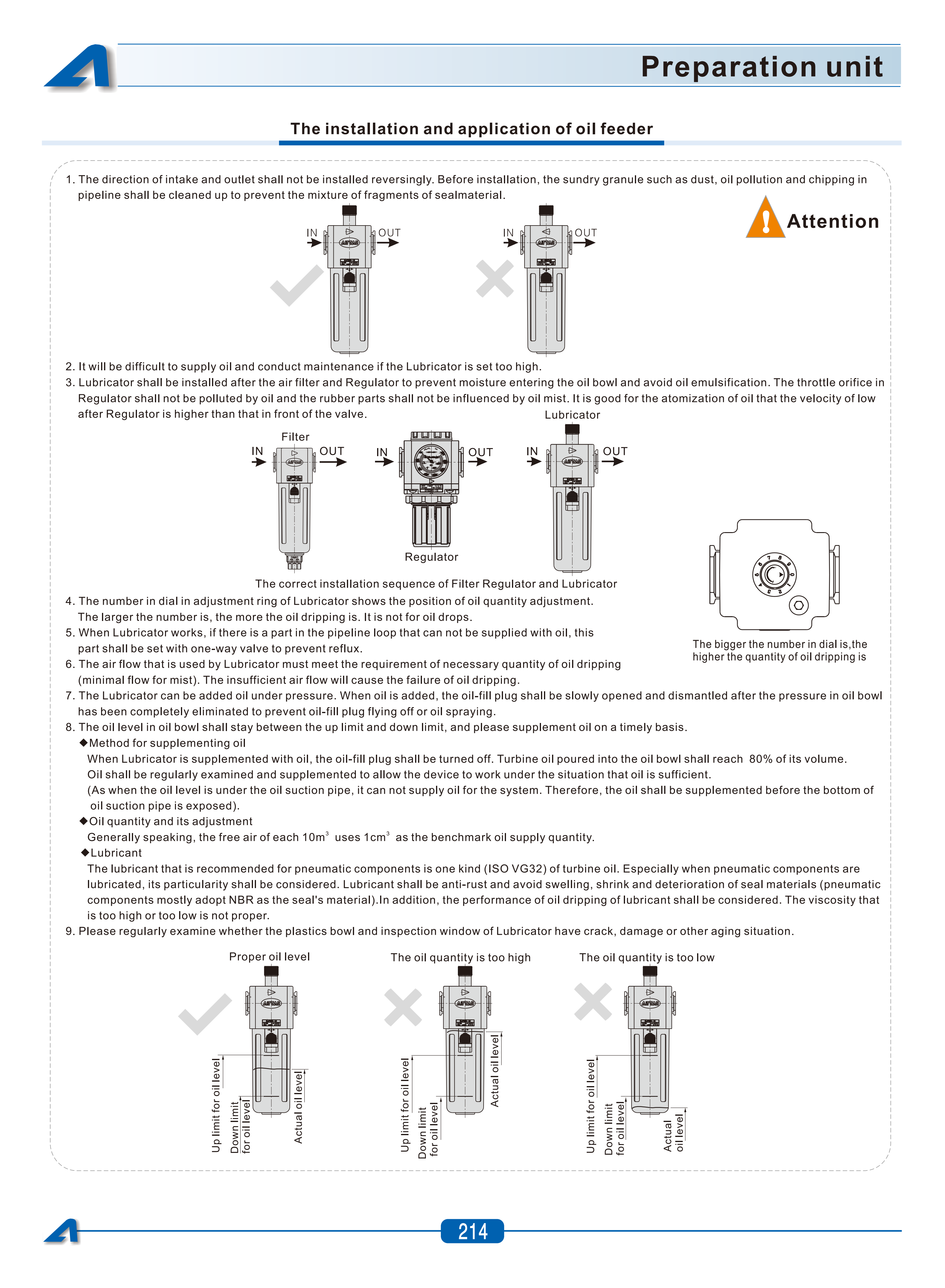

3. Lubricator (ISO VG32 or Turbine Oil No.1 Recommended)

Atomizes lubricant into compressed air stream to reduce friction in moving parts
Oil cup capacities: 15 mL or 150 mL (model-dependent)
Transparent sight glass for easy monitoring of oil levels and droplet size

🧩 Popular Configurations: Flexible Solutions for Every Application

Model Series	Configuration	Best For

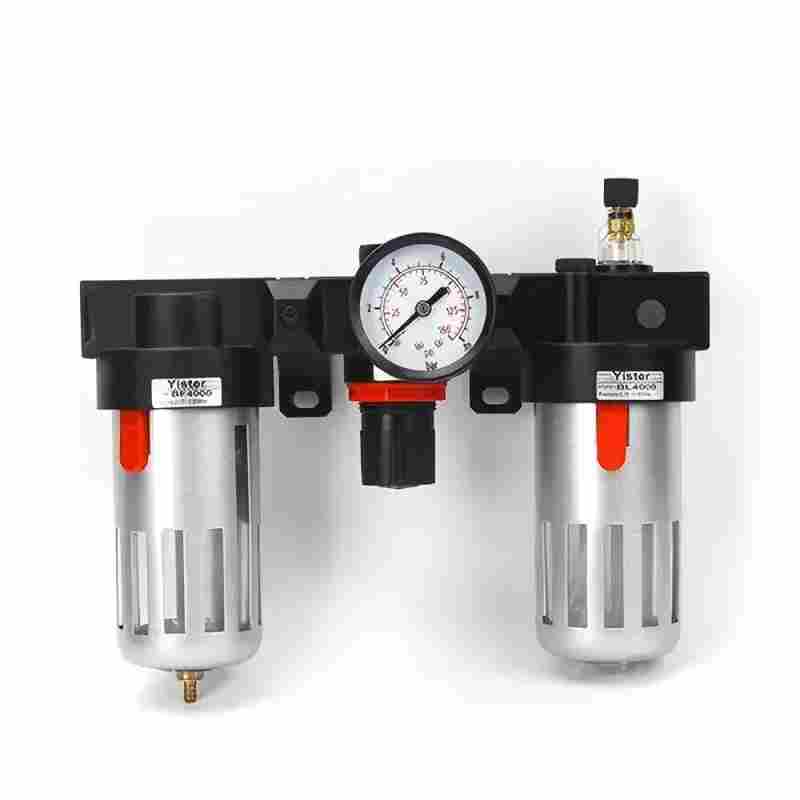

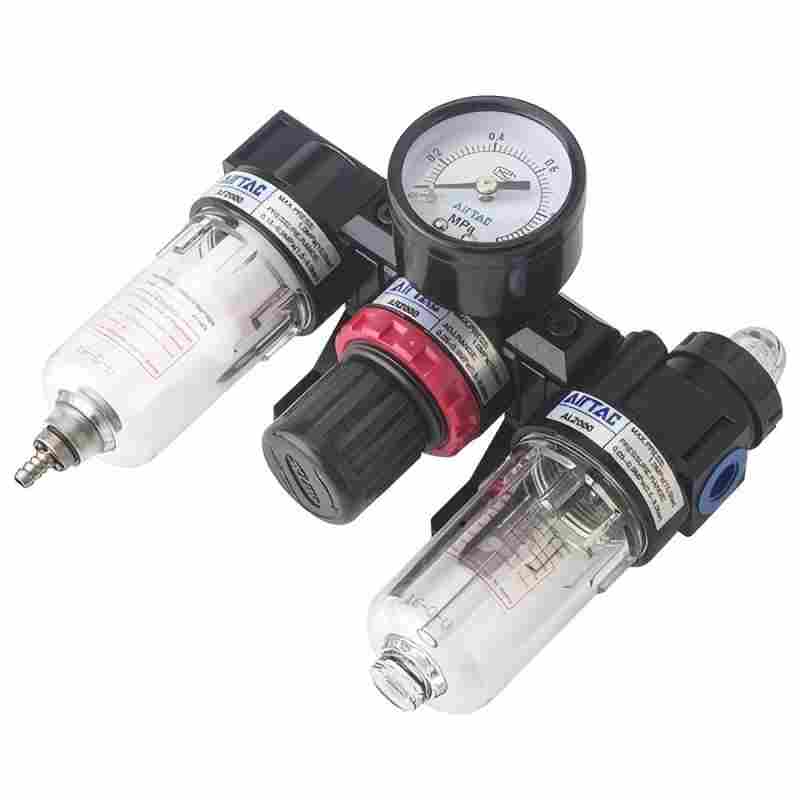

AC2000, BC4000	Triple Unit (Filter + Regulator + Lubricator)	General industrial automation, full system protection

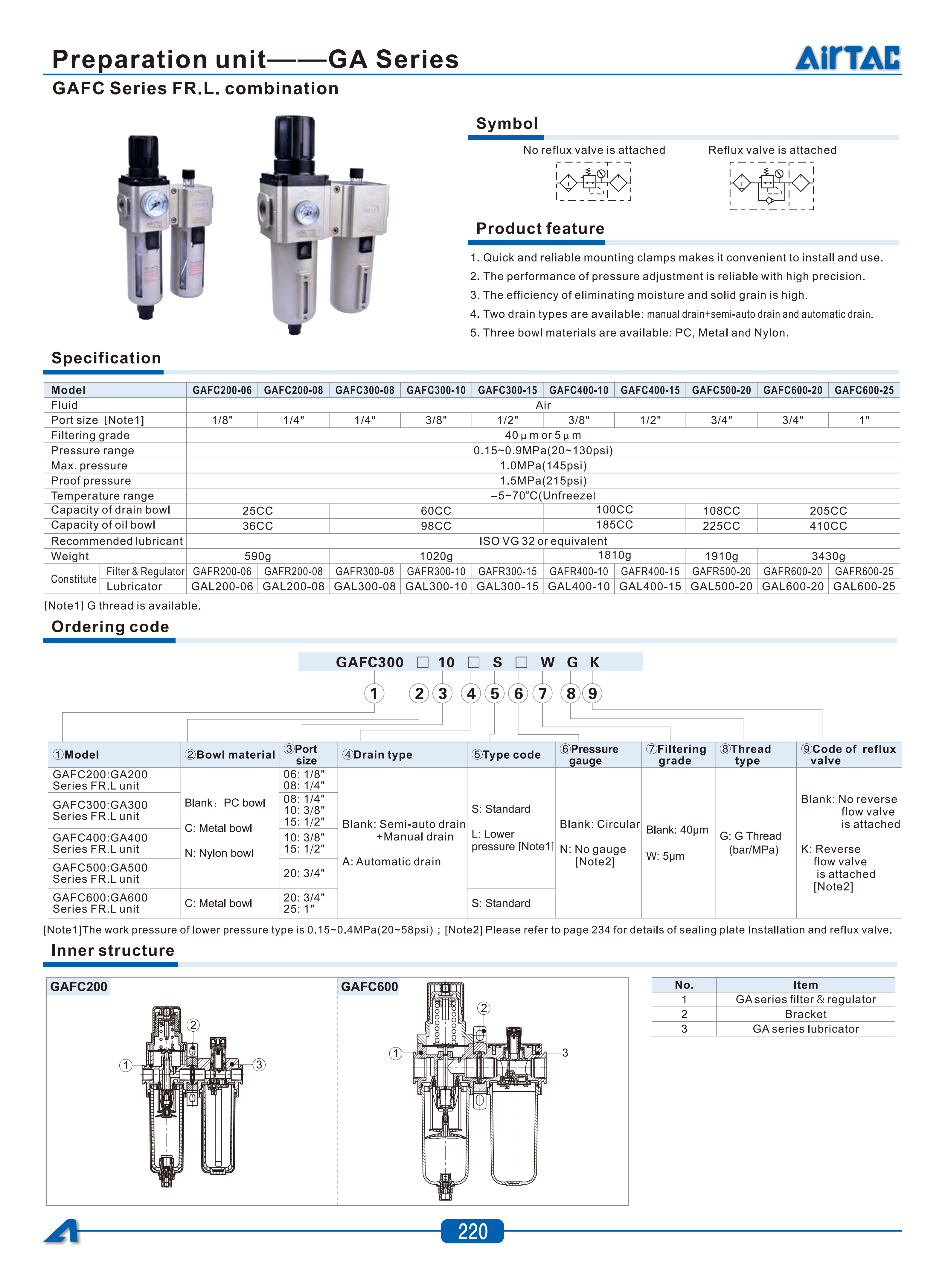

AFC2000	Double Unit (Filter + Regulator)	Oil-free applications, clean environments
GFR Series	Standalone Filter Regulator	Space-constrained installations, targeted filtration
GL Series	Standalone Lubricator	Supplemental lubrication for specific components

📊 Key Technical Specifications: Engineered for Performance

Port Sizes: PT1/8 to PT1/2 (most common: 1/4″ NPT/G1/4, 2-point thread)
Maximum Operating Pressure: 1.0 MPa (10 kg/cm²) with 1.5 MPa proof pressure
Operating Temperature: -5°C to 70°C (non-freezing conditions)
Certifications: Compliant with international pneumatic component standards
Material Quality: High-grade aluminum alloy body with corrosion-resistant coating

Applications

Precision equipment requiring high-purity, stable air supply (valve positioners, pneumatic instruments)
3C electronics production (PCB assembly, semiconductor manufacturing)
Food and beverage processing (hygienic air requirements)
Logistics automation (conveyor systems, sorting equipment)
Medical device manufacturing (cleanroom environments)
