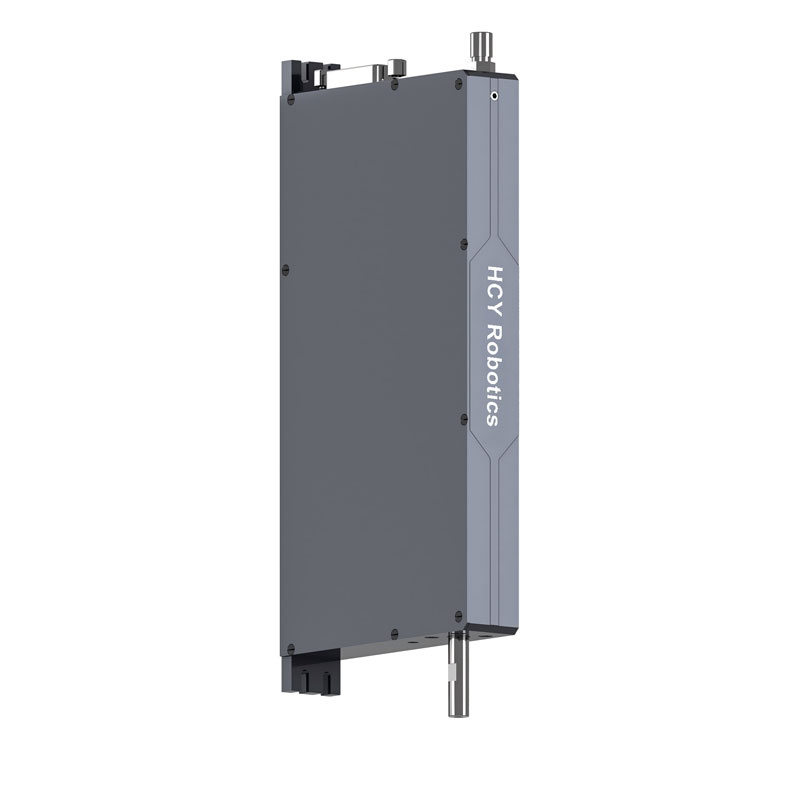

High Precision ZR Voice Coil Linear Actuator Micron Positioning Fast Dynamic Response Direct Drive Linear Motor For Semiconductor 3C Electronics Medical Equipment

Direct-drive ZR voice coil linear actuator delivers ultra-precise linear motion with outstanding stability and rapid dynamic response

Categories: Robotic Arm, ZR Voice Coil Actuators

Description
Technical Parameters

High-Precision Robotics Voice Coil Linear Actuator for Industrial Automation – Fast Response, Low Vibration, Compact Design

Searching for reliable high precision voice coil linear actuator for precision automated production? Our ZR series voice coil linear actuator adopts optimized magnetic circuit design and advanced drive control technology, achieving accurate micron-level positioning and excellent high dynamic response performance, which is widely adopted in various high-standard precision industrial fields.

Working based on the classic Lorentz force principle, this actuator converts electric energy into linear mechanical energy directly. Different from traditional rotary motor matched with auxiliary transmission structures, it outputs pure linear motion straightly, completely removes gaps, friction and wear caused by gears, belts and other intermediate transmission parts, successfully boosting dynamic response speed by more than 3 times.

Equipped with mature closed-loop control system, it can real-time adjust internal current via driver, stably maintain accurate ±1g force control accuracy even under variable load conditions. Adopting high-quality aluminum alloy material, it effectively reduces heat generation during long-term continuous operation. Strict practical test proves that its displacement repeatability error is less than 0.002mm after 8 hours uninterrupted working, supporting long-time stable precision operation. It is equipped with 35mm standard working stroke and compatible with 6000RPM high-efficiency operating speed, meeting diversified precision motion demands.

Core Advantages

Micron-Level Positioning Precision

✅ 8-hour continuous operation: Displacement repeatability error ≤ 0.002mm

✅ ±1g force control accuracy, protects fragile materials (semiconductor wafers/electronic components)

3x Faster Dynamic Response

✅ Direct drive design: Eliminates gear/belt gaps, no backlash or friction

✅ Response speed 3x faster than traditional rotary motor + transmission systems

Low-Heat & Durable Structure

✅ Aluminum alloy material: Reduces heat generation during long-term use

✅ Wear-resistant internal components: Supports 24/7 heavy-duty industrial operation

Versatile Technical Specifications

✅ Standard stroke: 35mm (customizable for special needs)

✅ Max speed: 6000RPM for high-efficiency production lines

✅ Closed-loop control: Real-time current adjustment to maintain stability under variable loads

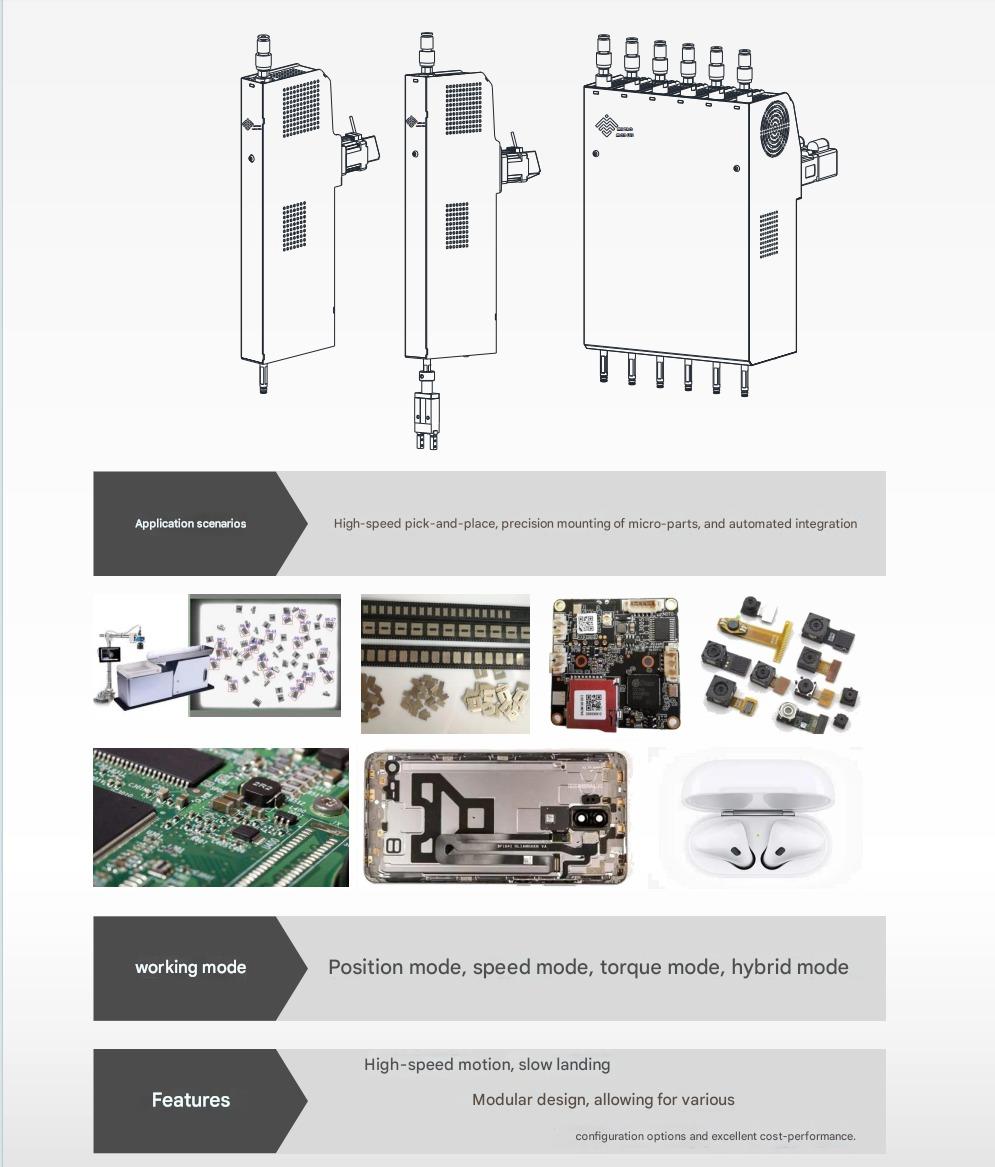

Wide Industrial Application Range

Semiconductor Industry: Perfect for wafer handling, chip mounting and other core processes, effectively protecting fragile raw materials from damage with precise force control.
3C Electronics Industry: Great for assembly of mobile phone camera modules, fingerprint identification modules and other miniature electronic components to improve production efficiency.
Biomedical Industry: Applied to micro liquid pumping, microscopic manipulation and other medical precision equipment, requiring low heat and high operational stability.
Other Fields: Also widely used in new energy battery pole piece inspection, intelligent robot joint drive and other precision automation equipment.

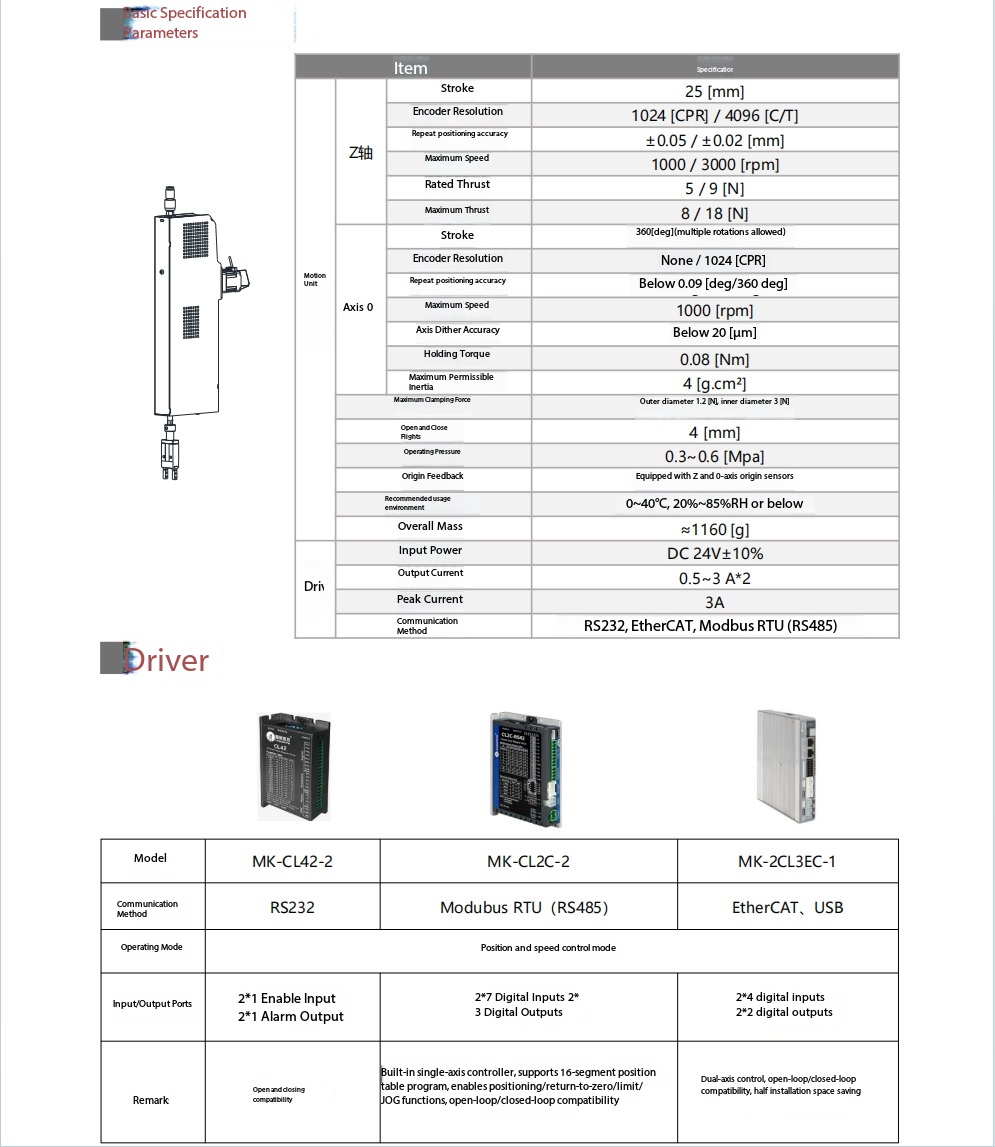

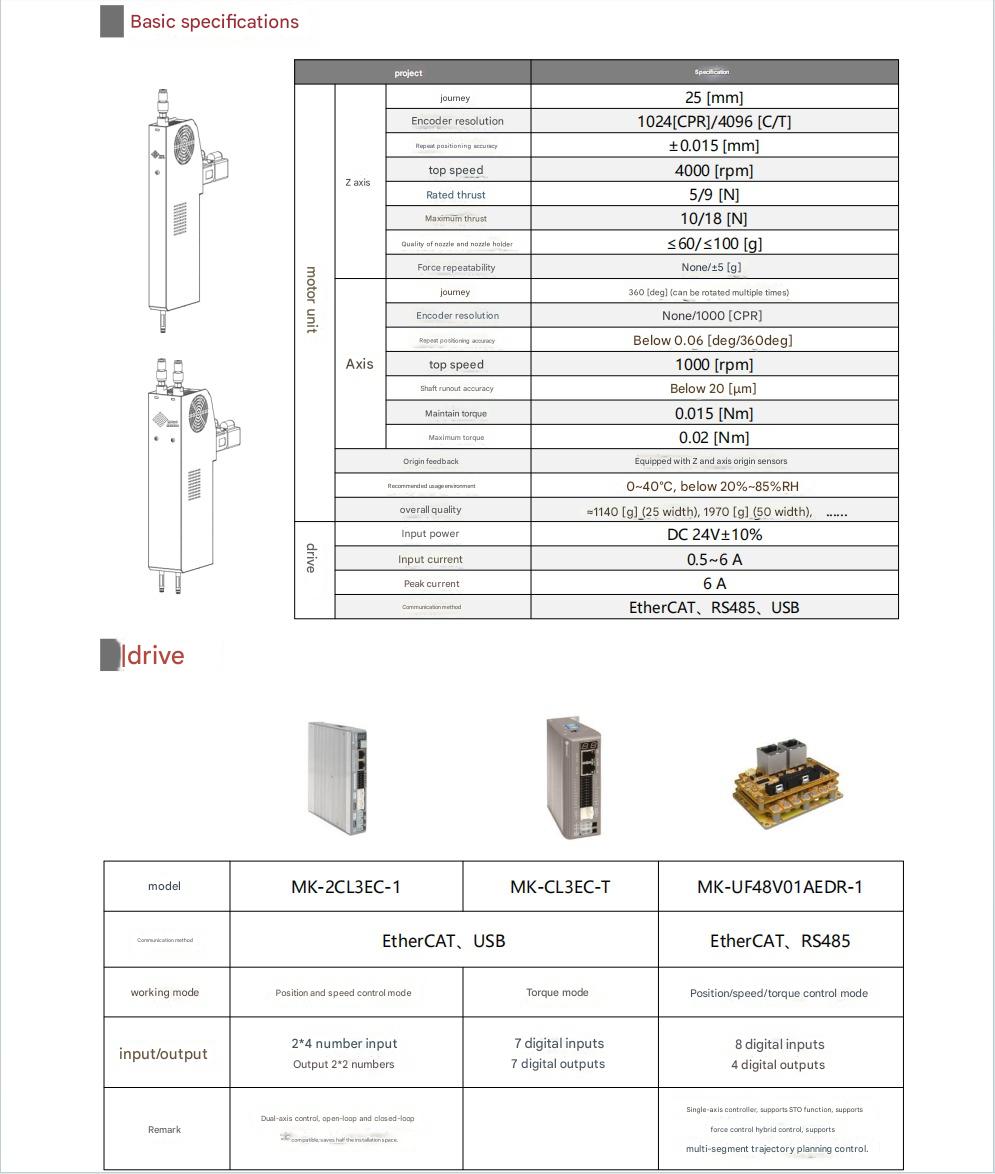

Model	MK-2CL3EC-1/MK-CL3EC-T/MK-UF48V01AEDR-1
Communication Method	EtherCat, USB
Working mode	Position speed/ Torque
Input/Output	24number input Output22numbers
