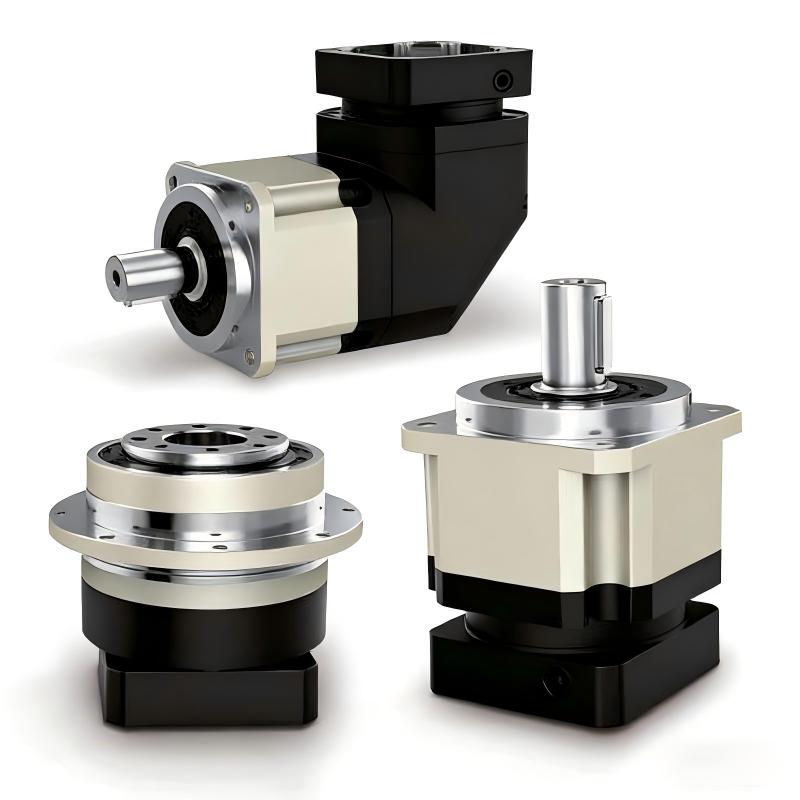

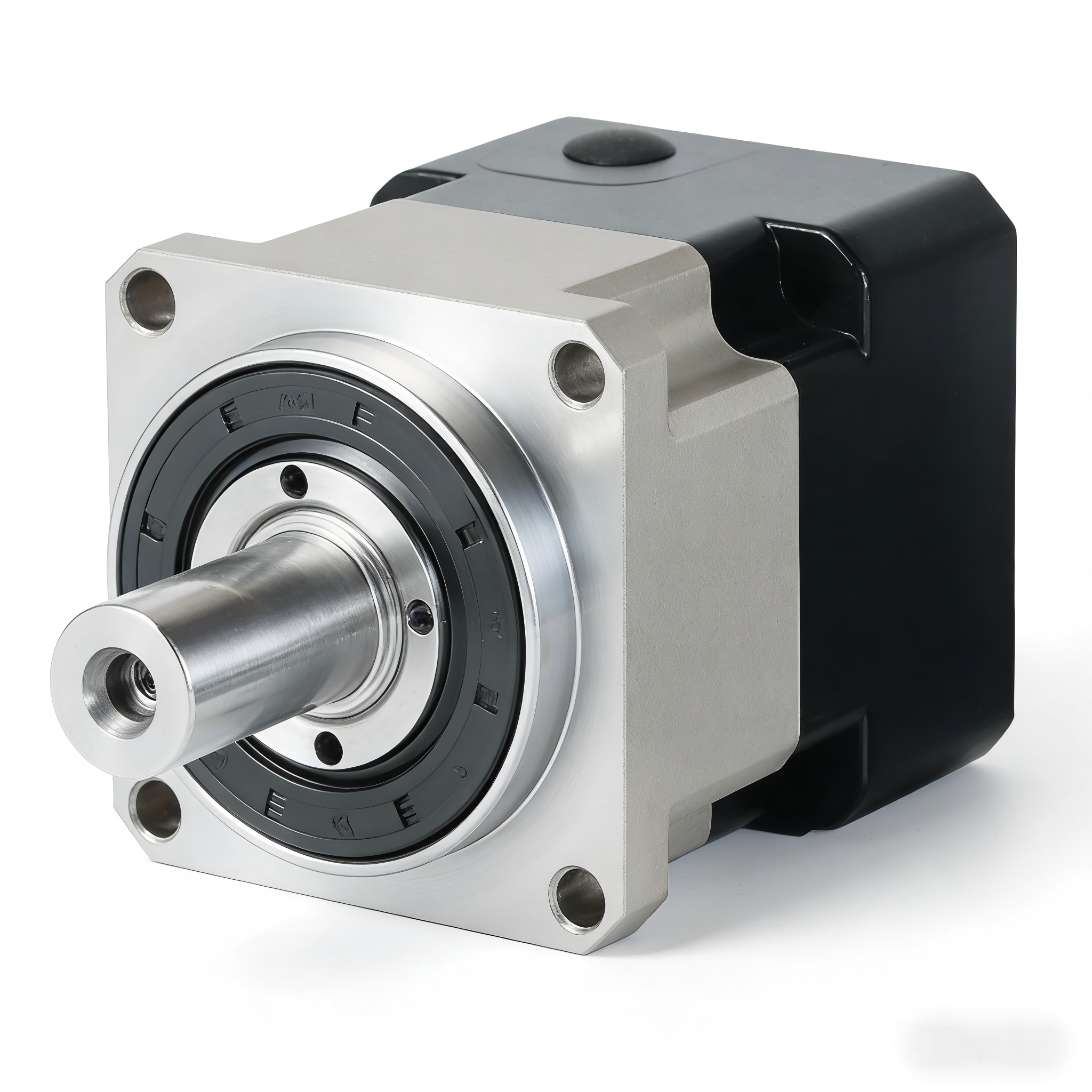

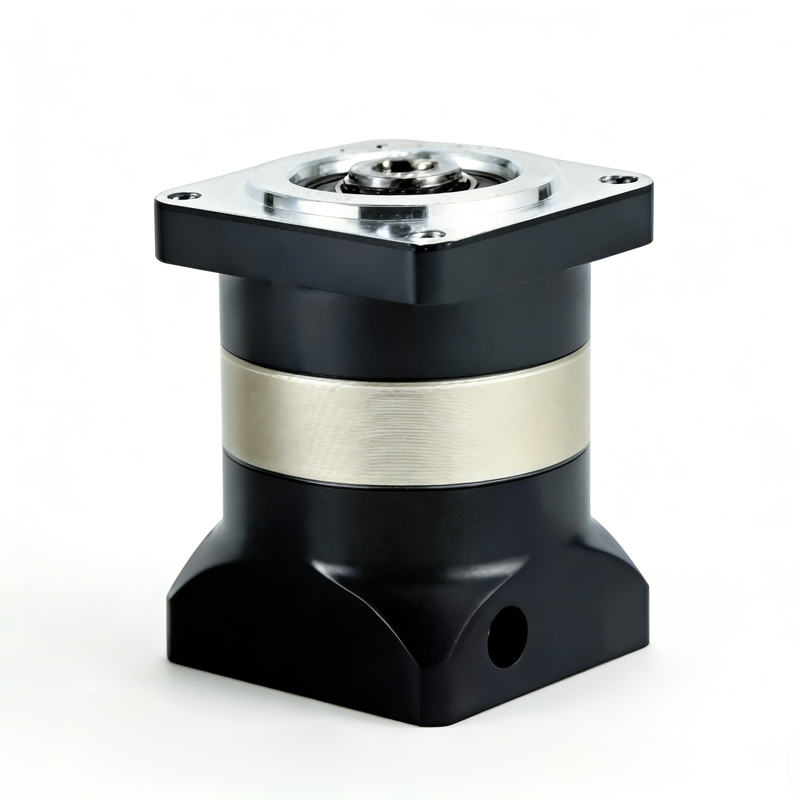

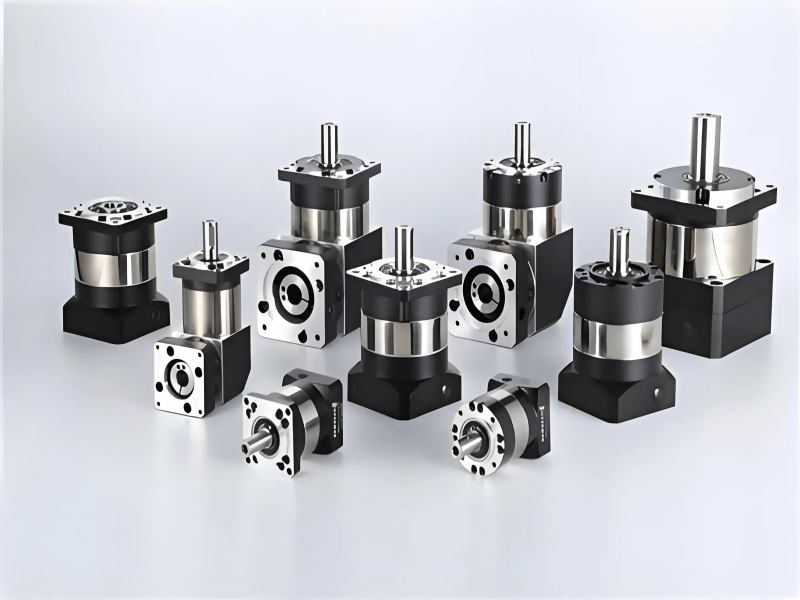

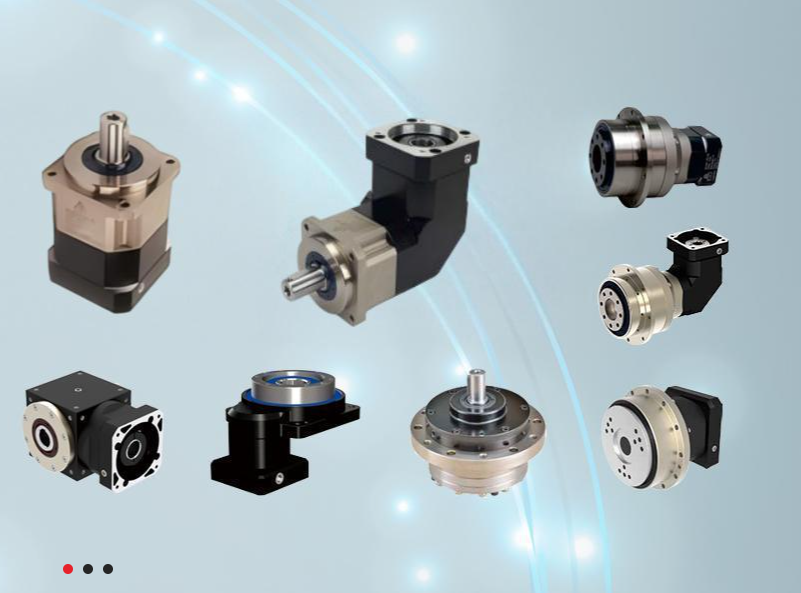

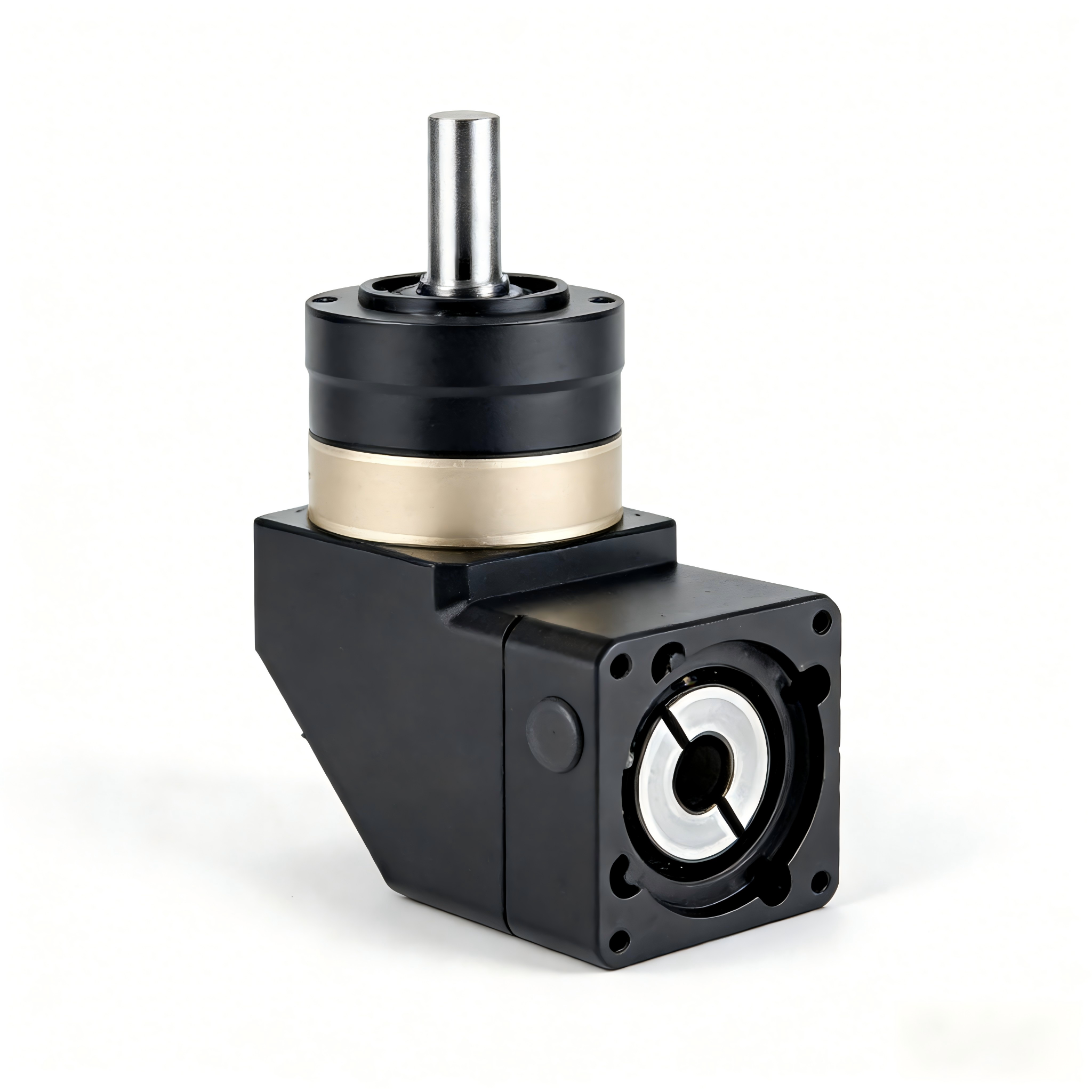

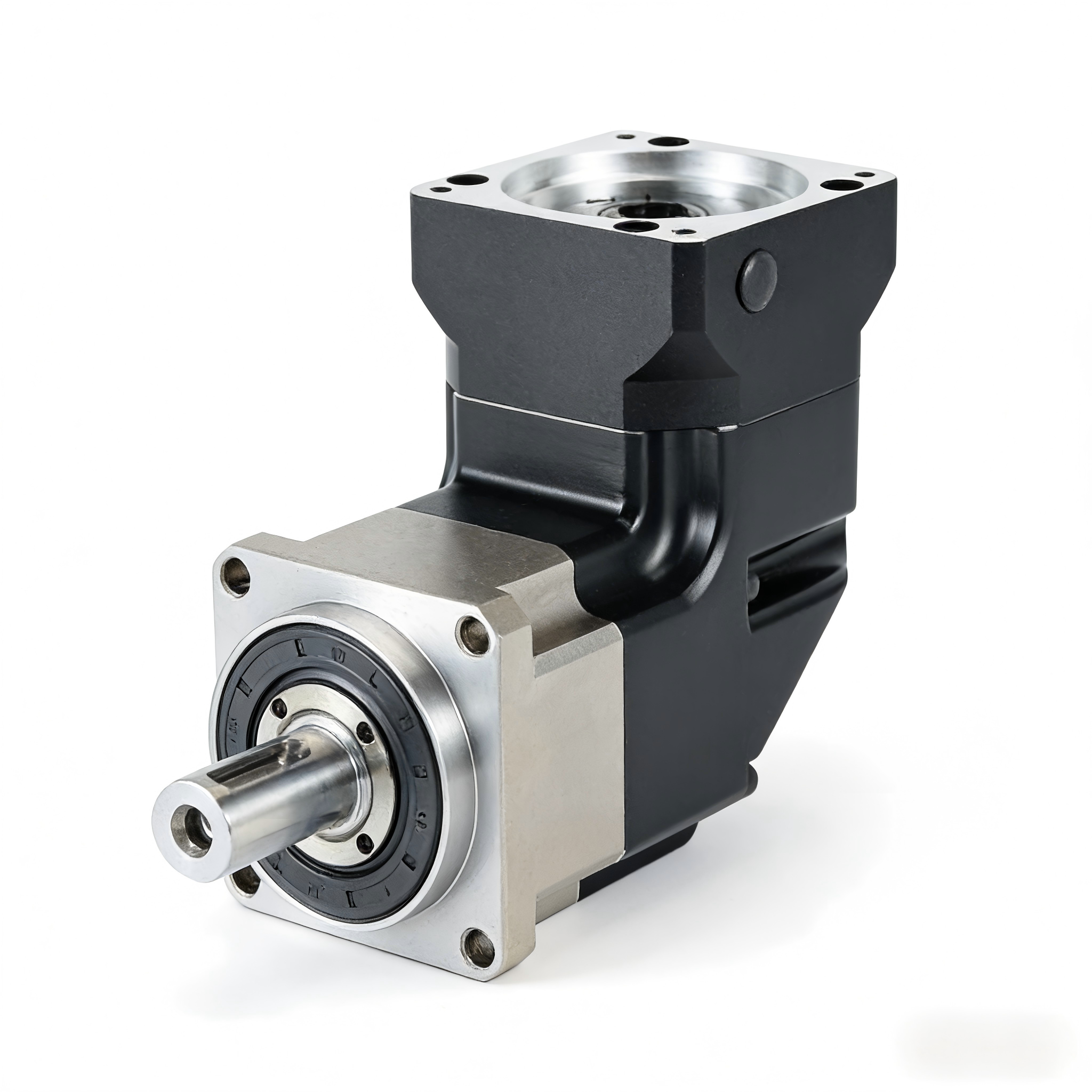

High Torque Precision Planetary Gear Reducer

Planetary Reducer – High Precision Industrial Precision Transmission Equipment

Planetary Reducer, also known as planetary gear reducer, is a high-precision industrial power transmission core component widely adopted in global automation, robotics, new energy, CNC machining and sophisticated equipment industries. Constructed with sun gear, planetary gears, inner ring gear and planet carrier meshing structure, it realizes multi-stage speed reduction and torque amplification efficiently.

Designed with universal modular architecture, our planetary reducer supports flexible customized combination. It perfectly matches AC servo motors, DC servo motors and mainstream servo brands worldwide. With ultra-wide speed ratio range, huge torque output, stable transmission and compact footprint, it breaks through technical bottlenecks in overload continuous transmission scenarios, realizing unitization, generalization and standardization of internal transmission modules.

As one of the three core precision reducers alongside harmonic drive and RV reducer, precision planetary reducer serves as the pivotal joint component of industrial robots and humanoid robots, occupying the largest market share among industrial robot precision transmission parts. Besides traditional machinery manufacturing, it gains soaring demand in wind power, photovoltaic tracking systems, semiconductor, medical devices, new energy vehicles and intelligent logistics sectors globally. Proper lubrication maintenance and precise coaxial calibration between motor and reducer can greatly extend service life and stabilize long-term operating accuracy.

Working Principle

The planetary transmission system consists of four core structural units: sun gear, planetary gear set mounted on the planet carrier, internal ring gear and stage gear.

1. Power input: Servo motor drives the central sun gear to rotate;
2. Power diversion: Sun gear meshes with multiple planetary gears simultaneously, power is evenly split to planetary gears;
3. Circumferential operation: Planetary gears revolve around the sun gear while rolling along the fixed inner ring gear;
4. Power output: The planet carrier connected with the output shaft rotates synchronously to output low-speed, high-torque power;
5. Multi-stage speed reduction: Stack 2-stage or 3-stage planetary & stage gear assemblies to superpose reduction ratios for larger deceleration and torque gain.

Core Functional Performances

1. Speed Reduction & Torque Boost

   Output torque = Motor Rated Torque × Reduction Ratio;

   Note: Actual operating torque shall never exceed the rated torque of the planetary reducer to avoid gear damage.

2. Load Inertia Reduction

   Load inertia is reduced by the square of the reduction ratio, effectively improving servo response speed, positioning accuracy and motion stability, ideal for high-precision frequent start-stop motion scenarios.

   Core Advantages

   1. High Transmission Efficiency & Energy Saving

      Single-stage transmission efficiency reaches up to 97%; multi-stage design still maintains excellent efficiency, lowers energy consumption during long-duration continuous operation, perfectly fits new energy and high-load production lines.

   2. Ultra-large Torque & Strong Shock Load Resistance

      Max output torque up to 2,600,000 Nm; power split multi-point meshing structure disperses load pressure, outstanding anti-overload and impact resistance, suitable for heavy-duty industrial continuous operation.

   3. Compact Size & Light Weight, Space-Saving Layout

      Compared with helical gear reducers and worm gear reducers of the same torque grade, planetary structure features smaller volume and lighter weight, convenient for limited installation space such as robot joints, AGV vehicles and miniature precision equipment.

   4. Stable Operation & Ultra-Low Running Noise

      All gears adopt carburizing quenching + precision grinding process, smooth tooth surface meshing eliminates vibration; paired with nodular cast iron housing for vibration absorption, low noise during high-speed cyclic operation.

   5. High Rigidity & Long Service Lifespan
   • Housing: High-strength nodular cast iron, greatly enhanced rigidity, shock resistance and deformation resistance;
   • Gear: Carburizing quenching heat treatment for high hardness and wear resistance; post-grinding optimizes meshing precision, reduces wear loss and extends overall service life.

   6. Wide Speed Ratio Range & Flexible Combination

      Standard reduction ratio covers 25~4000 r/min; matched with RX/R/K series reducers to realize ultra-large customized reduction ratios; 2-stage / 3-stage optional to satisfy low-speed high-torque & medium-precision dual demands.

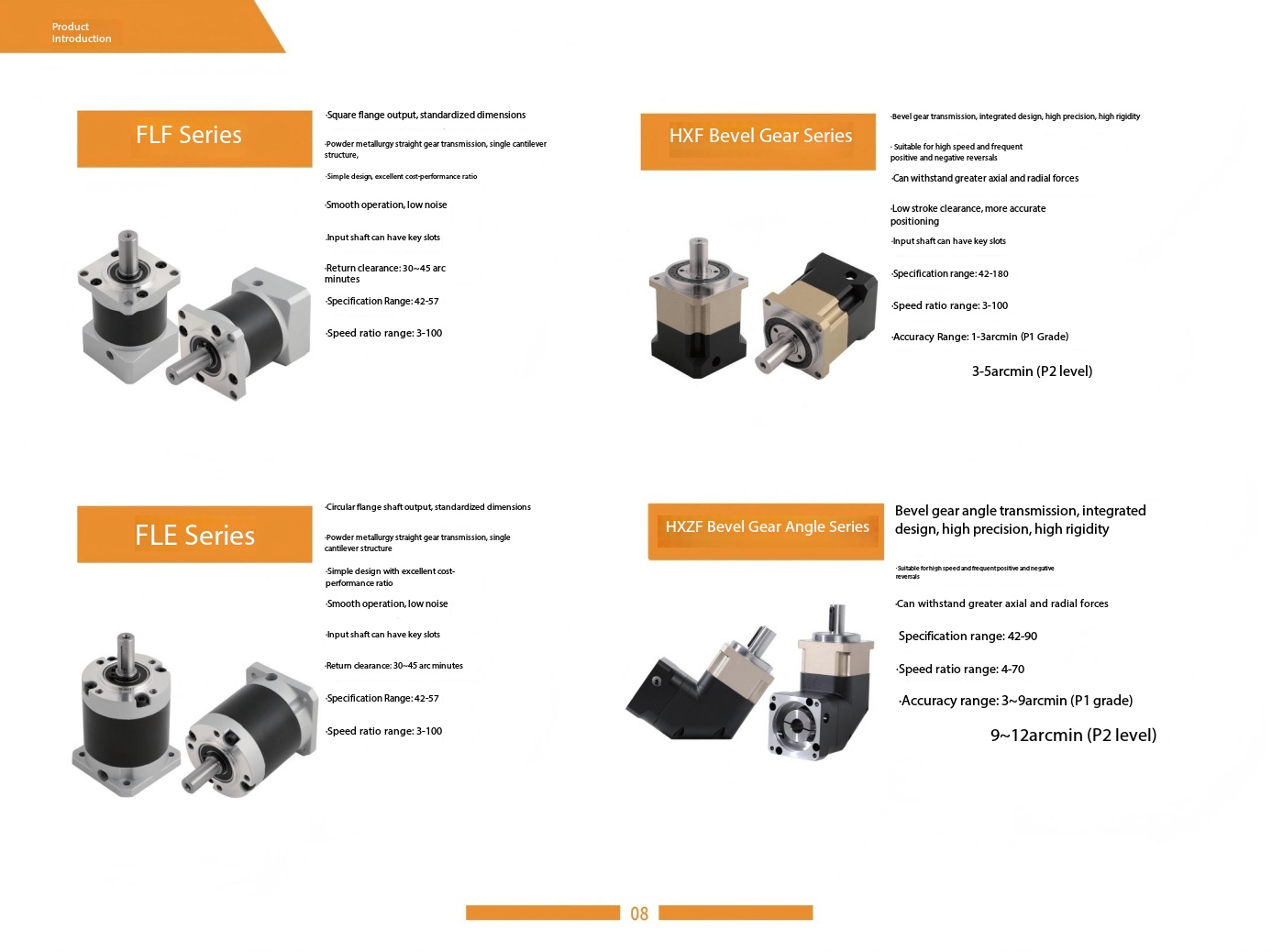

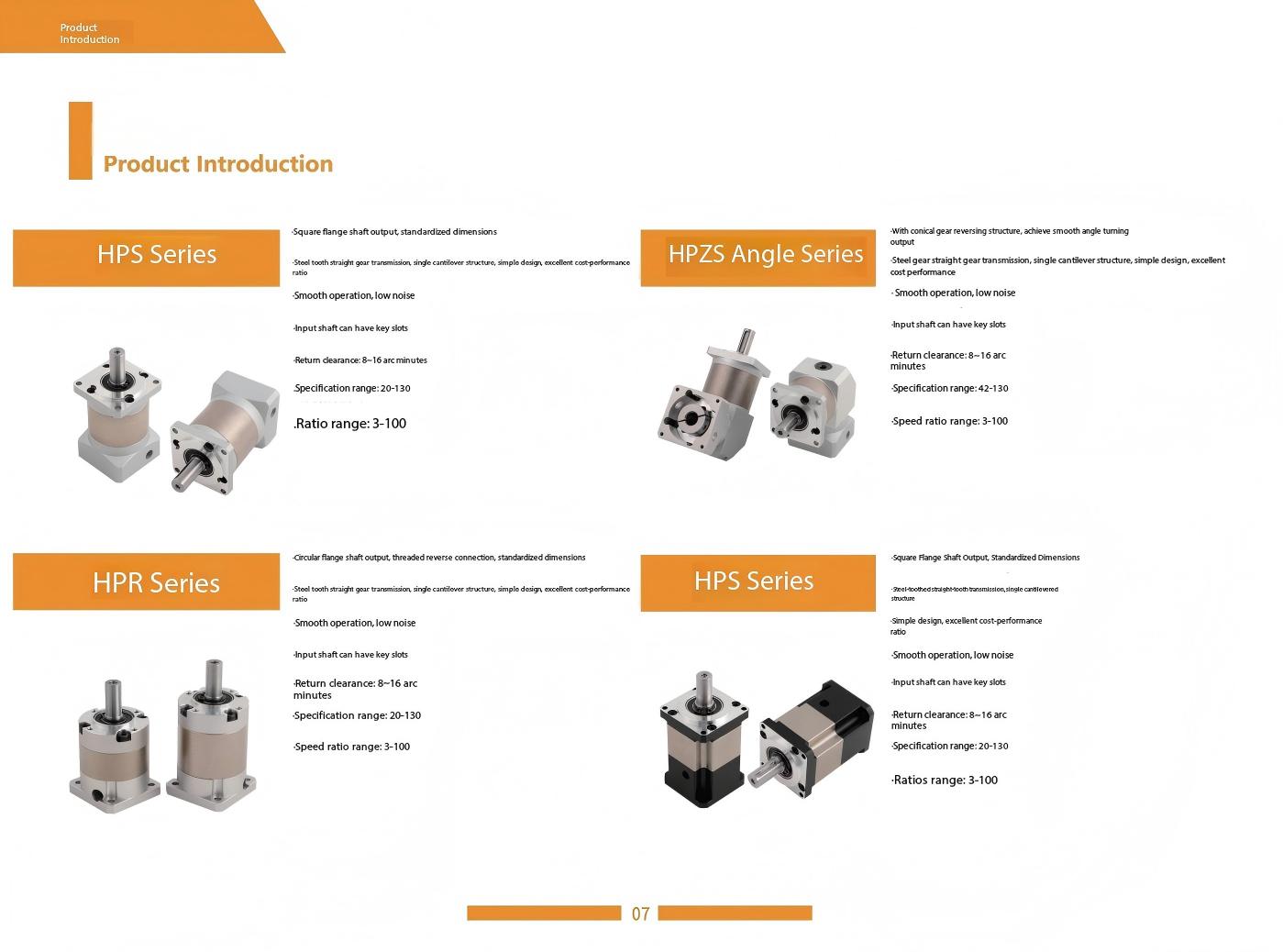

   7. Diversified Installation & Output Configuration, Universal Compatibility

      Supports foot-mounted, flange-mounted, torque arm mounting modes; output options include solid shaft, spline shaft; compatible with all mainstream global servo motor brands, seamless docking for automation equipment renovation and new projects.

   8. Modular Design, Easy Customization & Maintenance

      Standard modular core unit design, flexible combination adjustment according to customer working conditions; standardized spare parts structure, convenient lubricant replacement and daily maintenance; only need to calibrate concentricity between motor and reducer during assembly to guarantee stable operation.

   9. Excellent Adaptability for Harsh Working Conditions

      Adaptable to high-load continuous transmission, dusty workshop, new energy outdoor scenarios, low-temperature & high-temperature environments, widely applicable to diversified global industrial working conditions.



Application

4.1 Robotics & Intelligent Automation (Largest Application Field, 30% Market Share)

Industrial articulated robots, humanoid robots, robotic manipulators, AGV automated guided vehicles, automated assembly lines, intelligent handling robots, precision positioning automation platforms

4.2 CNC Machine Tools & Precision Processing Equipment

CNC lathes, machining centers, CNC pipe bending machines, laser cutting machines, flame cutting equipment, tool machinery, measuring instruments, master machine tools, precision monitoring systems

4.3 New Energy Industry (Fastest Growing Global Demand Sector)

Wind power pitch systems, photovoltaic solar tracking systems (boost annual power generation by 8% with high-precision planetary reducers), new energy vehicle drive systems, energy storage equipment

4.4 Semiconductor, Electronics & LCD Precision Equipment

Semiconductor processing equipment, PCB production equipment, LCD flipping & rotating equipment, communication precision devices, microelectronic testing instruments

4.5 Medical & Pharmaceutical Industry

Medical precision instruments, rehabilitation equipment, pharmaceutical production machinery, drug filling & packaging equipment

4.6 Packaging, Printing & Food Beverage Machinery

Food packaging machines, printing presses, packaging machinery, beverage filling lines, paper processing equipment

4.7 General Machinery & Light Industry

Textile machinery, woodworking machinery, welding equipment, ceramic & glass processing machinery, instrumentation

4.8 Heavy Industry, Construction & Special Equipment

Metallurgy, mining, lifting transportation equipment, petroleum chemical industry, construction machinery, ship equipment, military precision equipment, intelligent transportation, parking systems, automotive manufacturing



• Frequently Asked Questions for Planetary Reducer Selection

• Q1: What core parameters do I need to prepare before selecting a planetary reducer?

  A: 6 key parameters must be confirmed first to avoid wrong model selection:
  1. Servo/stepper motor parameters: rated power, rated speed, rated torque, flange size, shaft diameter
  2. Working condition type: horizontal installation / vertical installation
  3. Actual operating load: continuous torque, peak instantaneous torque (impact load)
  4. Motion requirement: target output speed, required reduction ratio
  5. Motion mode: intermittent reciprocating operation / continuous running, start-stop frequency
  6. Installation environment: temperature, dust, humidity, noise requirement, installation space limitation

  Q2: How to calculate the reduction ratio correctly?

  A: Reduction Ratio = Motor Input Speed ÷ Required Output Speed

  • Standard reduction ratios are available for 2-stage & 3-stage planetary reducers
  • For ultra-low speed and ultra-high torque requirements, combine with RX/R/K series reducers to obtain extra large speed ratios up to 4000
  • Tips: Reserve a proper margin instead of choosing the exact theoretical ratio for stable operation

  Q3: What is the difference between 2-stage and 3-stage planetary reducers? How to choose?

  A:

  表格

  Item	2-Stage Planetary Reducer	3-Stage Planetary Reducer
  Reduction Ratio Range	Small & medium ratio	Large reduction ratio
  Transmission Efficiency	Higher (close to 95%~97%)	Slightly lower
  Backlash & Precision	Better precision, lower backlash	Slightly larger backlash
  Volume & Weight	More compact	Slightly longer body
  Application	CNC equipment, automation platforms, general servo positioning	Heavy-load low-speed equipment, photovoltaic tracking, wind power pitch, large torque machinery

  Torque & Load Selection Questions

  Q4: How to confirm the rated torque to avoid reducer overload damage?

  A:

  1. Continuous working torque of the reducer ≥ actual long-term operating torque of equipment
  2. Instant peak torque ≤ reducer allowable peak torque (usually 2~3 times rated torque)
  3. Formula: Output Torque = Motor Rated Torque × Reduction Ratio

     Important note: Never exceed the reducer’s rated torque for long-term operation; otherwise, gear wear, tooth breakage and shortened service life will occur. Our maximum output torque can reach 2,600,000 Nm for heavy-duty working conditions.

  Q5: Why does inertia matter for planetary reducer selection? How to calculate?

  A: After deceleration, load inertia is reduced by the square of the reduction ratio.

  • Smaller inertia brings faster servo response, higher positioning accuracy, suitable for high-speed frequent start-stop scenarios such as robot joints, laser cutting equipment
  • If the inertia mismatch is too large, servo vibration, positioning deviation will happen; we will match the optimal reduction ratio according to your load inertia.

  Installation & Matching Adaptation Questions

  Q6: Can your planetary reducer fit all brands of servo motors?

  A: Yes. Our planetary reducers adopt universal modular design, compatible with mainstream global servo & DC motor brands.

  We support customized input flange, input shaft aperture to perfectly match various servo motors; multiple installation methods are optional: foot-mounted, flange-mounted, torque arm mounting.

  Q7: What output shaft types are available? How to choose solid shaft and spline shaft?

  A:

  • Solid output shaft: Most widely used, suitable for common automation equipment, CNC machine tools, packaging machinery
  • Spline output shaft: Higher torque transmission capacity, stronger anti-slip performance, applied to heavy load, frequent impact working conditions like construction machinery, new energy equipment

  Q8: Horizontal installation vs vertical installation: any differences in selection and lubrication?

  A:

  1. Horizontal installation: Universal scene, conventional lubricating grease / oil is applicable, simple maintenance
  2. Vertical installation: Need to select special vertical dedicated lubricant; the internal sealing structure is optimized to prevent oil leakage; we will adjust the internal assembly scheme according to vertical working conditions.

  Precision, Efficiency & Working Condition Adaptation

  Q9: What is the single-stage transmission efficiency? Will multi-stage greatly reduce efficiency?

  A:

  • Single-stage planetary transmission efficiency up to 97%
  • 2-stage efficiency: 93%~95%
  • 3-stage efficiency: 88%~92%

    Planetary power split meshing structure guarantees high overall efficiency, much more energy-saving than worm gear reducers, ideal for long-time continuous operation such as wind power and photovoltaic systems.

  Q10: Can planetary reducers work in harsh environments (high temperature, dust, outdoor new energy)?

  A:

  • The housing is made of nodular cast iron with high rigidity, shock resistance and deformation resistance
  • Gears adopt carburizing quenching + precision grinding process, wear-resistant and durable
  • We can configure customized sealing structure, high and low temperature resistant lubricating oil for outdoor photovoltaic tracking, wind power pitch, mining and chemical dusty environments.

    Case: High-precision planetary reducers applied to photovoltaic tracking systems can lift annual power generation by 8%.

  Application Scenario Matching & After-sales Maintenance

  Q11: What industries are planetary reducers most suitable for? What scenarios need to avoid choosing planetary reducers?

  A:

  ✅ Recommended application scenarios:

  Industrial robots, humanoid robot joints, CNC machine tools, laser cutting, semiconductor equipment, medical devices, food packaging, photovoltaic & wind power new energy, AGV vehicles, textile machinery, metallurgy mining heavy equipment

  ❌ Not recommended: Ultra-low precision low-cost transmission scenarios (worm gear reducer is more cost-effective)

  Q12: What should I pay attention to during assembly to extend service life?

  A: Two key points:

  1. Strictly calibrate the concentricity between motor output shaft and reducer input shaft; eccentricity will cause gear eccentric wear, noise rise and short service life
  2. Select matching lubricant according to installation direction and ambient temperature, replace lubricating oil regularly following the operation manual

  Q13: The space for equipment installation is limited, is there a compact customized scheme?

  A: Supported. Modular combined design allows us to adjust the length and structure of the reducer body on demand; small-size lightweight planetary models are specially developed for AGV, semiconductor miniature equipment and narrow installation spaces.

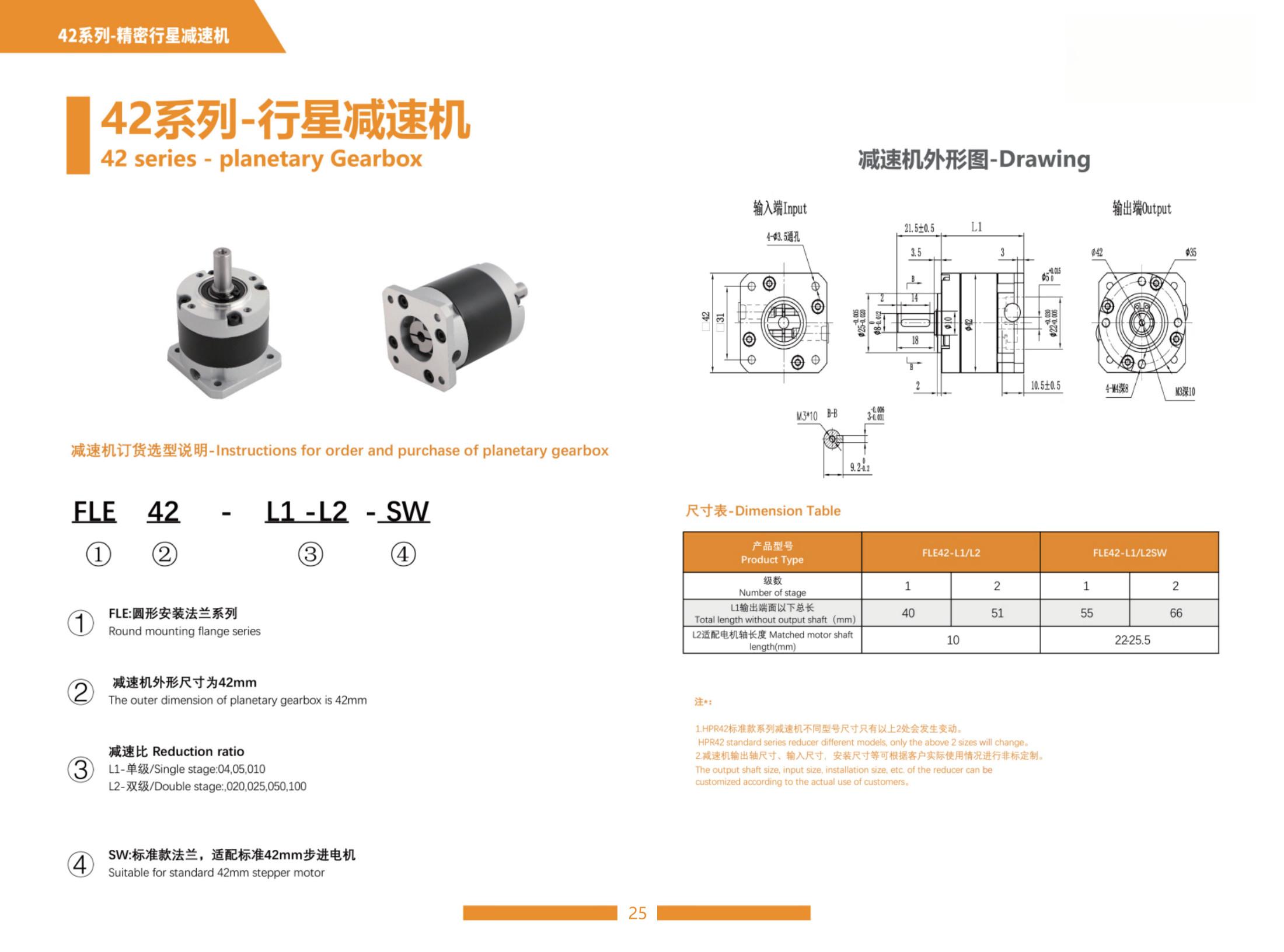

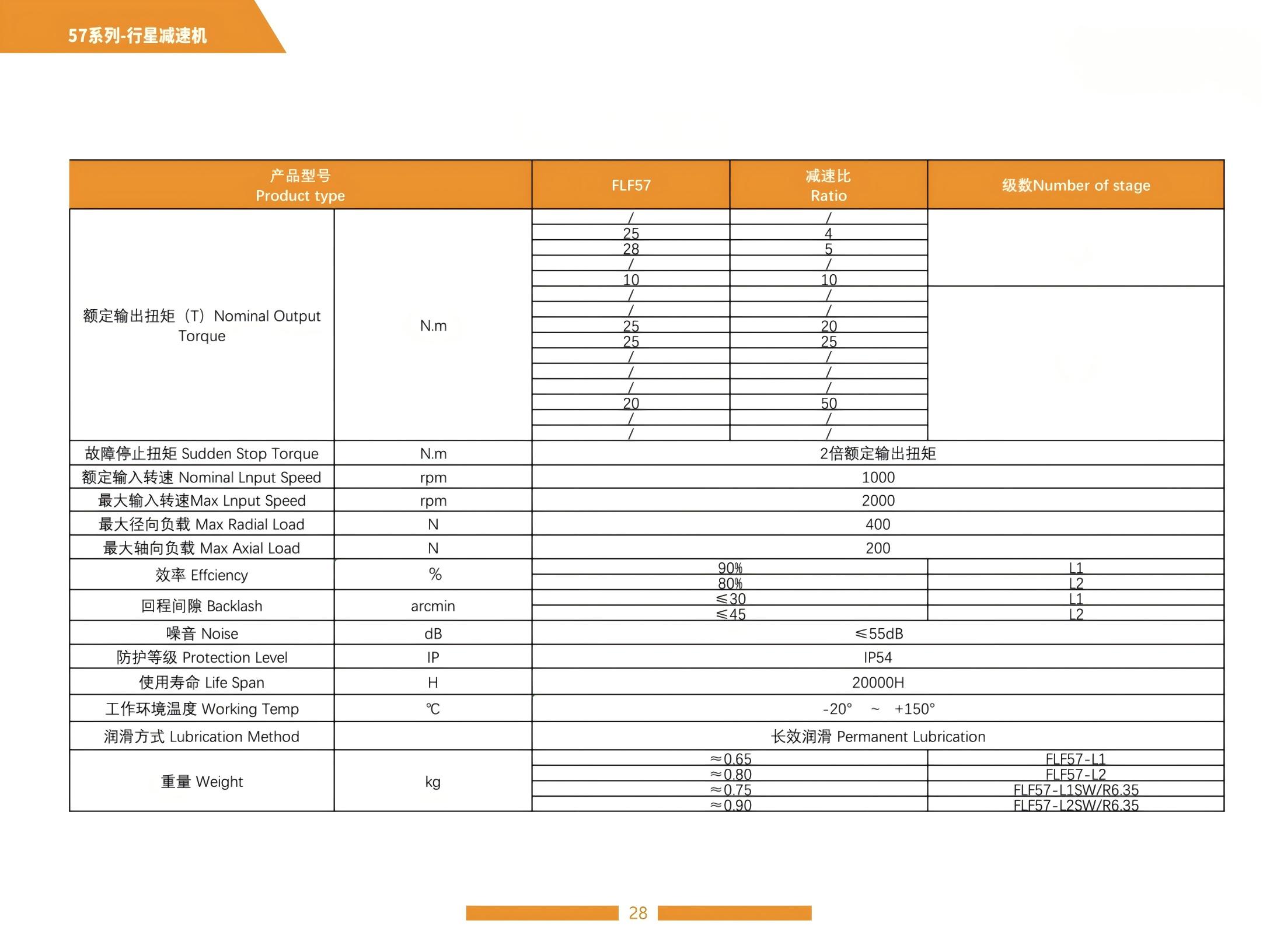

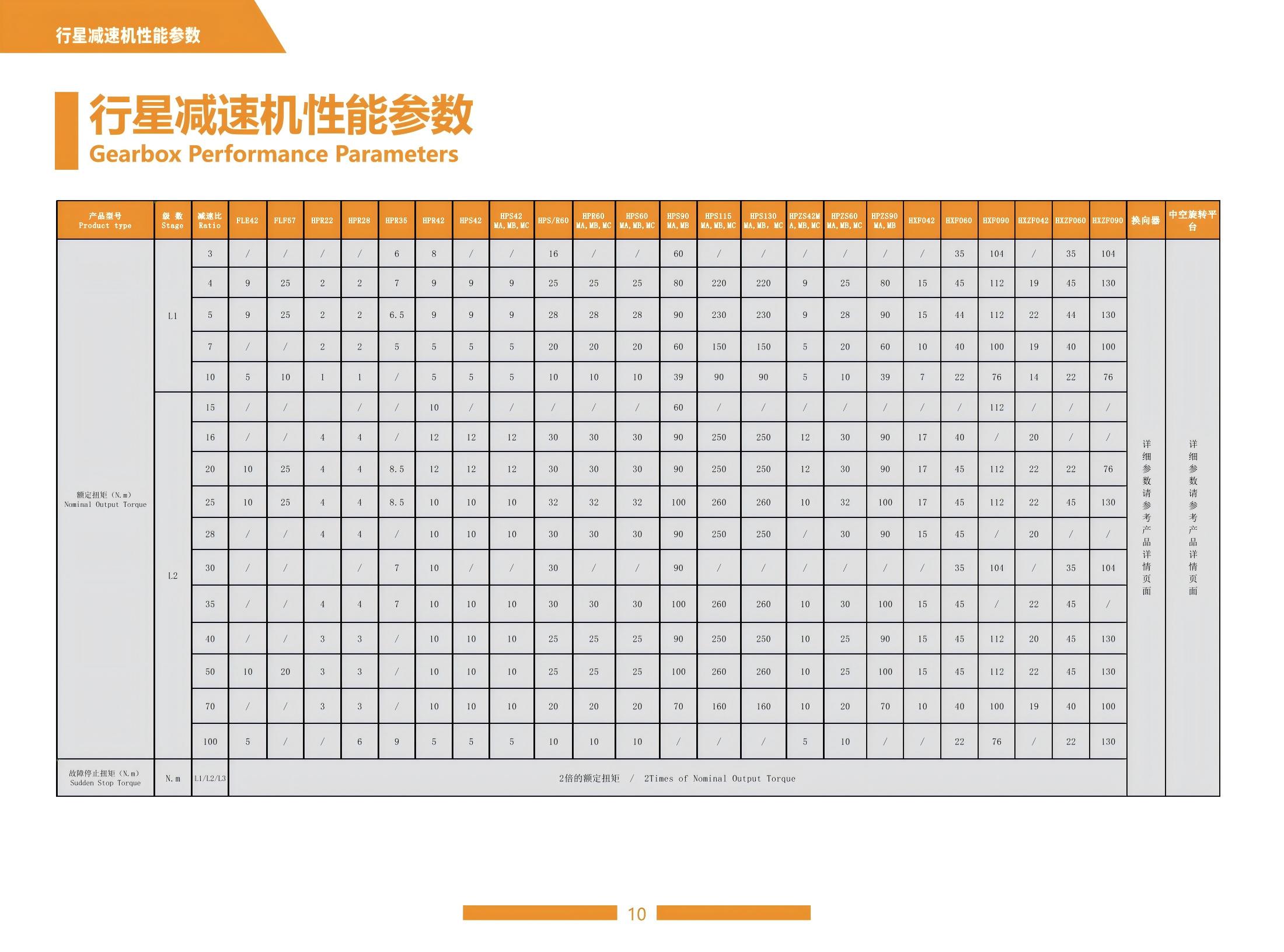

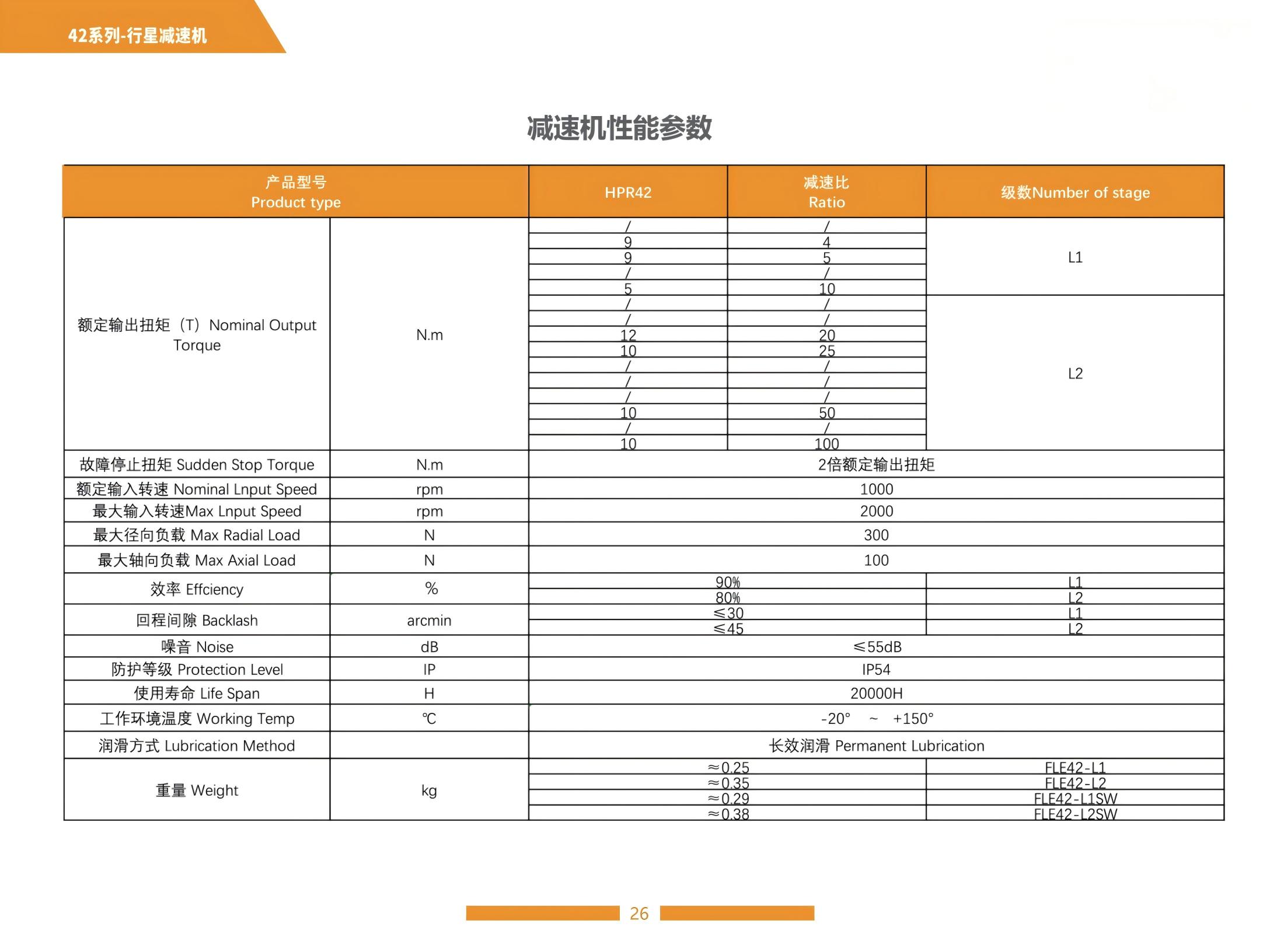

  Q14: What specifications and transmission stages do you supply?

  A:

  • Standard specifications: 9# ~ 34#
  • Transmission stages: 2-stage, 3-stage optional
  • Power range: 0.4kW ~ 12934kW
  • Reduction ratio range: 25~4000, larger speed ratio available via combined reducer

  Cost & Delivery Related FAQ

  Q15: Is customized planetary reducer acceptable? What is the delivery cycle?

  A: We support personalized customization including speed ratio, torque, flange size, output shaft type, special sealing and lubrication; standard models have short lead time, customized models will be notified separately according to technical requirements.
