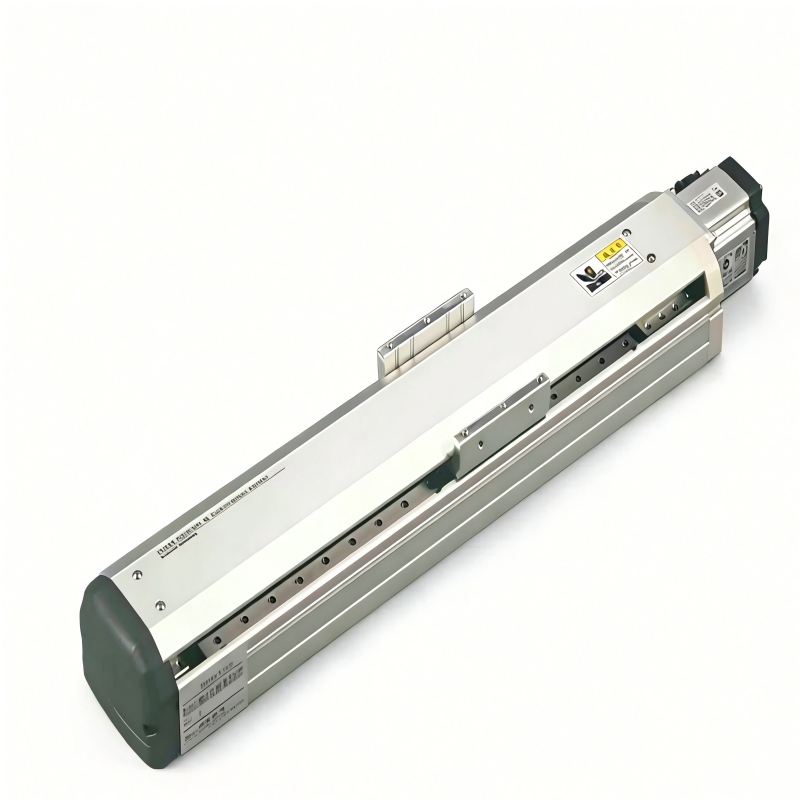

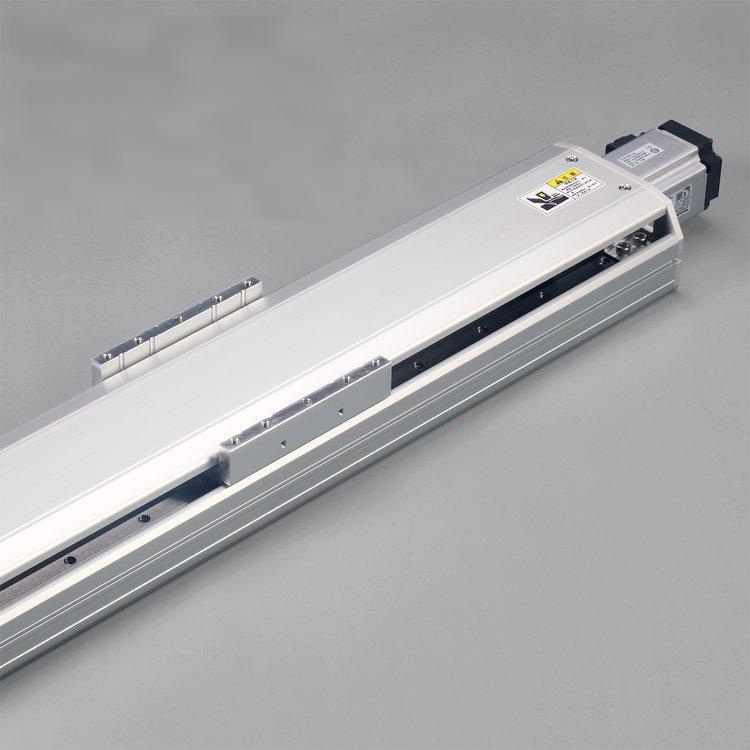

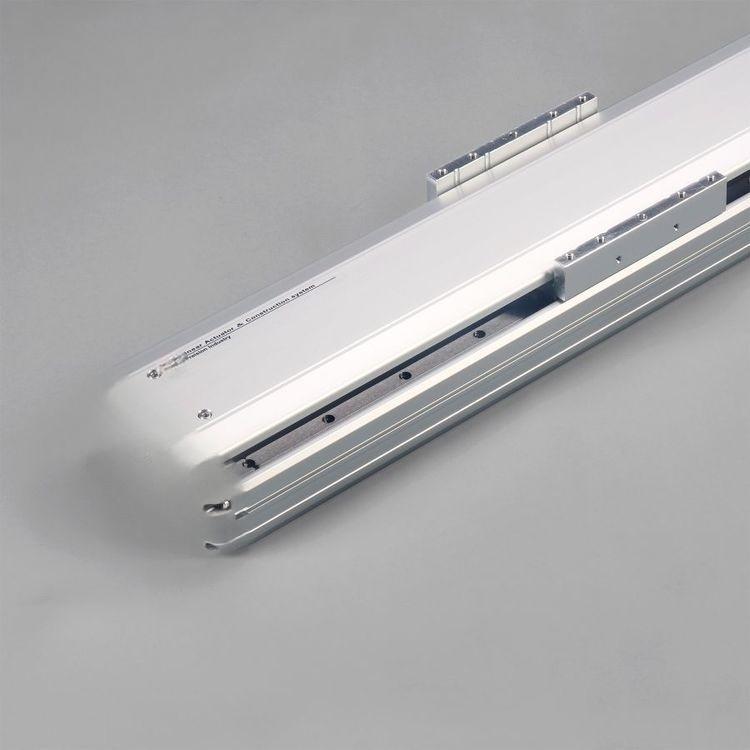

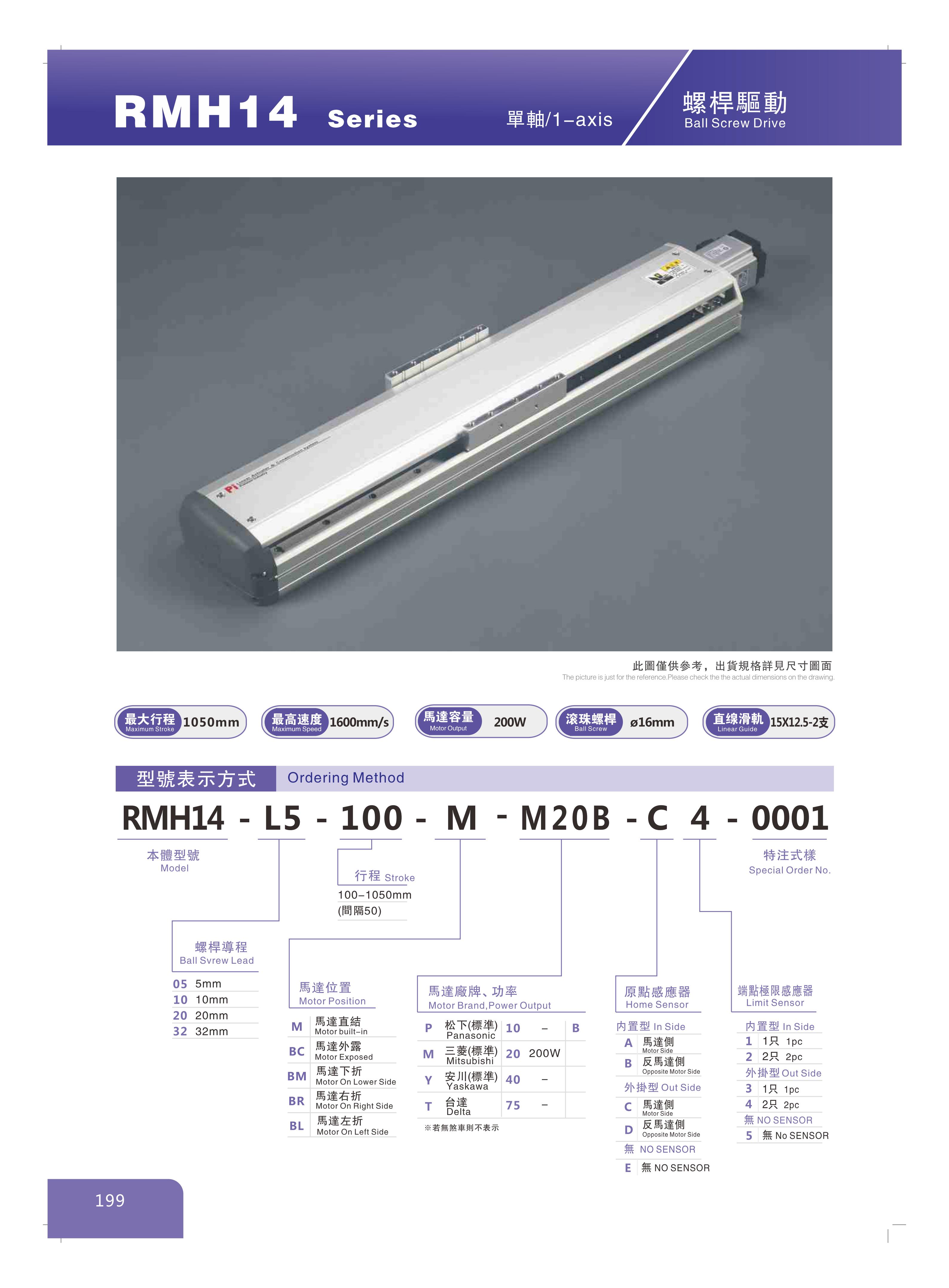

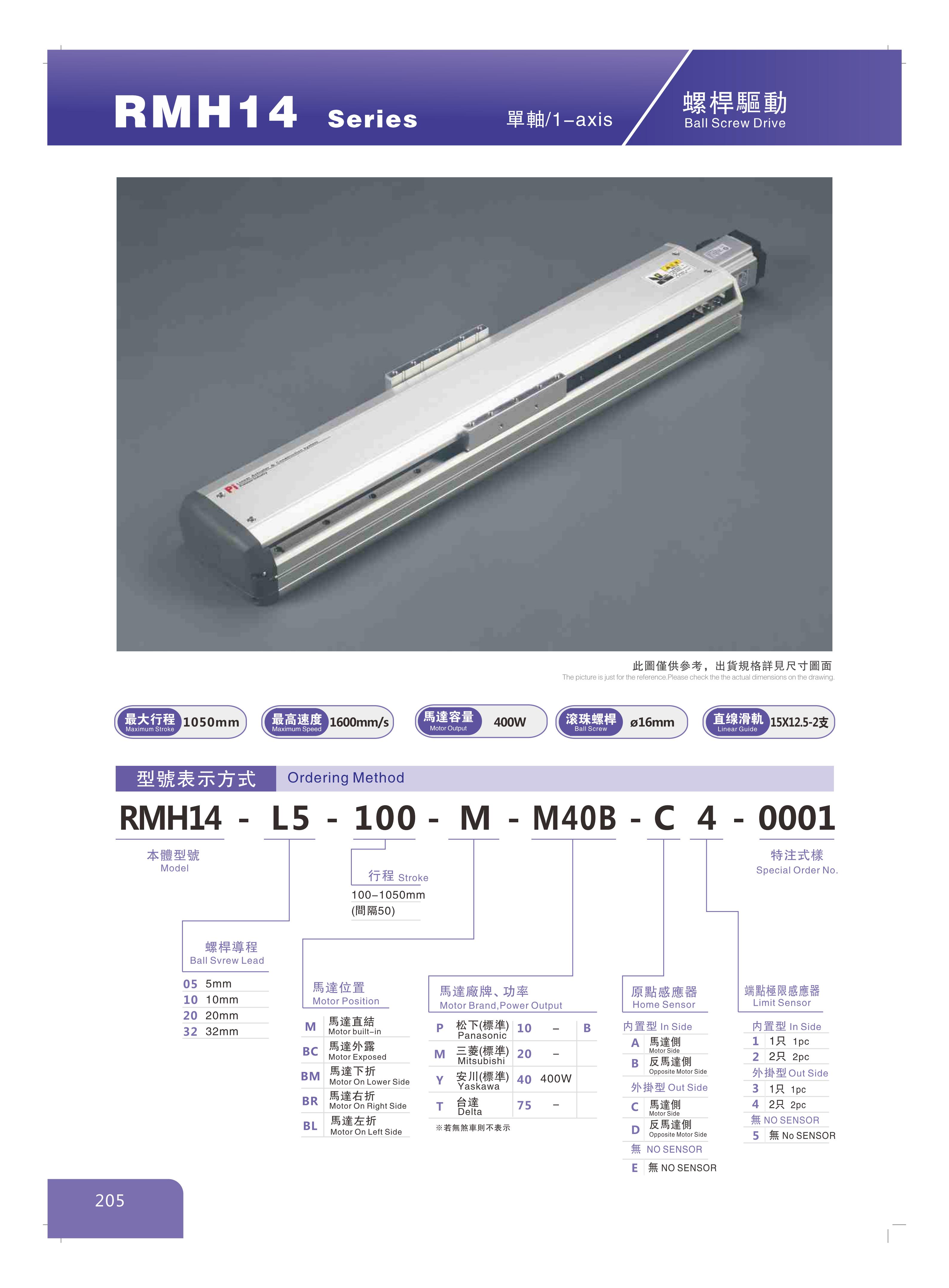

High Precision Ball Screw Slide Table Heavy Duty Linear Module for Industrial Automation CNC Equipment Parts

High-precision & heavy-duty linear module – easy to install for CNC/industrial automation

Categories: Ball Screw Actuators, Linear Motion Module

Description
Technical Parameters

Ball Screw Slide Table | Linear Motion Module for Industrial Automation

1. Product Structure

The ball screw slide table is composed of ball screw, screw nut, linear guide rail and sliding block as core components. The ball screw acts as the key transmission part, the nut matches the spiral groove of the screw, and the high-strength linear guide rail supports the sliding block stably. The integrated structural design ensures compact layout, strong overall rigidity and perfect linear motion track, which is the core essential accessory for automated mechanical equipment.

2. Working Principle

It converts rotary motion into precise linear motion through ball screw transmission. When the screw rotates forward, the nut generates horizontal thrust to drive the slider to move linearly along the guide rail; when the rotation direction is reversed, the slider realizes reciprocating reverse movement. The whole transmission process is smooth and sensitive, realizing accurate displacement control and flexible linear operation.

3. Core Advantages

✅ Ultra-high positioning accuracy

Achieve micron-level positioning and excellent repeat accuracy, perfectly meet strict precision control requirements of industrial processing, testing and assembly scenarios.

✅ Strong heavy-load capacity

Optimized screw and nut transmission structure, with strong bearing capacity and anti-overload performance, suitable for heavy-duty industrial working conditions and large-weight handling applications.

✅ Ultra-long service life

Adopts special surface treatment and professional lubrication technology for screws and guide rails, effectively reducing friction loss and wear, greatly extending service life and reducing replacement costs.

✅ Excellent operational stability

The guide rail and slider fit closely with large contact area, effectively avoiding jitter, deviation and runaway movement. With low noise, low friction and high rigidity, it maintains stable operation for 24-hour continuous production.

✅ Strong compatibility & easy installation

Modular integrated design, diverse installation methods and customizable stroke, widely compatible with various automation equipment, easy to install and later maintenance.

4. Application

Widely used in industrial automation production lines, CNC machine tools, 3C electronic manufacturing, semiconductor equipment, dispensing machines, inspection instruments, packaging machinery, robotic handling, medical equipment and other industries. It is a universal and high-quality peripheral accessory for global automation equipment manufacturers.

Ball Screw Module Application Trends in Automation (2026-2030):

7 Core Directions & Market Growth Drivers

Core Conclusion: From 2026 to 2030, ball screw modules will focus on four core technology pillars—high precision, intelligence, lightweight design, and scenario customization—with explosive growth in four key sectors: humanoid robots, semiconductor equipment, new energy manufacturing, and precision medical devices. They will form a “hybrid topology” collaborative ecosystem with linear motors rather than a substitutional relationship.

Technology Upgrade Trends: From “Precision” to “Ultra-Precision”, From “Mechanical” to “Intelligent”
1. Precision Level Leap: Micron → Nano → Sub-Nano
Popularization of Nano-Grade Products: Localization of Class C0/C1 nano-precision ball screw modules accelerates, with 2026 as a technical watershed to break the monopoly of Japan and Germany.
Composite Precision Control: Integrates grating scale closed-loop + temperature compensation algorithm to achieve ±0.001mm positioning accuracy, suitable for ultra-precision scenarios such as semiconductor front-end processes and quantum computing.
Preload Technology Innovation: Intelligent preload adjustment system automatically adapts to load fluctuations, balancing rigidity and friction coefficient to maintain long-term precision stability.
2. Intelligence & Digitalization Upgrade
IoT Sensing Integration: Built-in temperature, vibration, and displacement sensors for real-time operation monitoring, enabling predictive maintenance and reducing downtime by 40%+.
AI Algorithm Integration: Optimizes motion control parameters through machine learning, adapting to different loads and speeds to improve dynamic response and positioning accuracy.
Digital Twin Application: Full-lifecycle digital modeling of modules supports virtual commissioning and fault simulation, shortening equipment development cycles by 50%+.
3. Lightweight Design & Material Innovation
Hollow Ball Screw Technology: Reduces weight by 30%+ and energy consumption by 15% while maintaining high rigidity, ideal for lightweight scenarios like mobile robots and collaborative robots.
Advanced Material Adoption: Silicon carbide ceramic balls, graphene cages, and other materials enhance wear resistance and self-lubrication, extending service life by 2x+ for extreme working conditions.
Flat Design: Lowers height by 40%, enabling “3D compact transmission” in 3C testing and medical equipment, reducing equipment footprint by 30%+.
4. High Efficiency, Energy Saving & Green Manufacturing
Transmission Efficiency Optimization: Upgraded ball circulation system achieves 95%+ transmission efficiency, saving 40%+ energy compared to traditional hydraulic systems, aligning with global “dual carbon” goals.
Self-Lubrication Technology: Extends maintenance-free period to 5 years, reducing grease consumption, environmental impact, and operational costs.
Electrification Replacement: Accelerates the replacement of pneumatic/hydraulic transmission systems, enabling energy-efficient transformation in automotive manufacturing, logistics automation, and other scenarios.

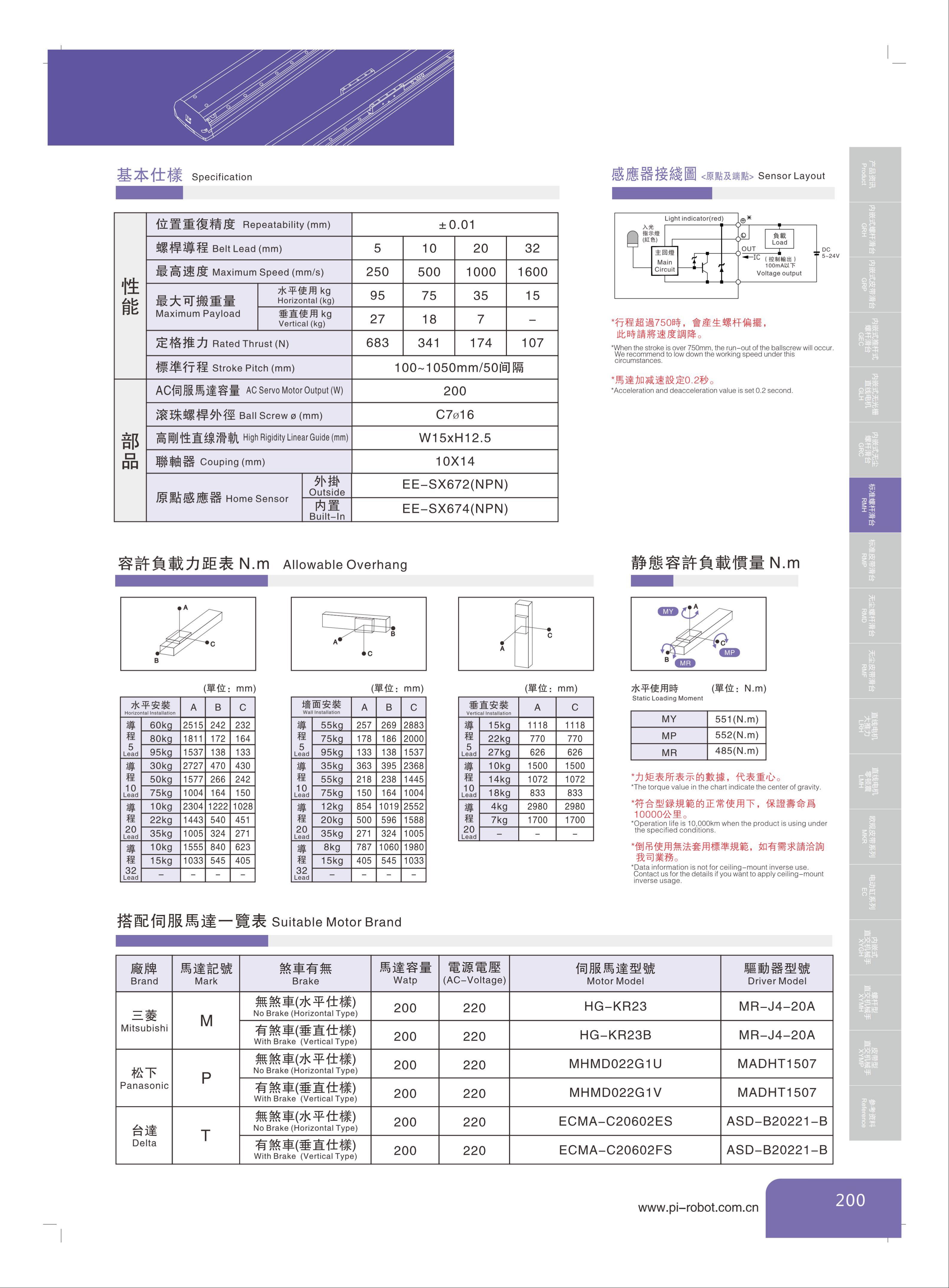

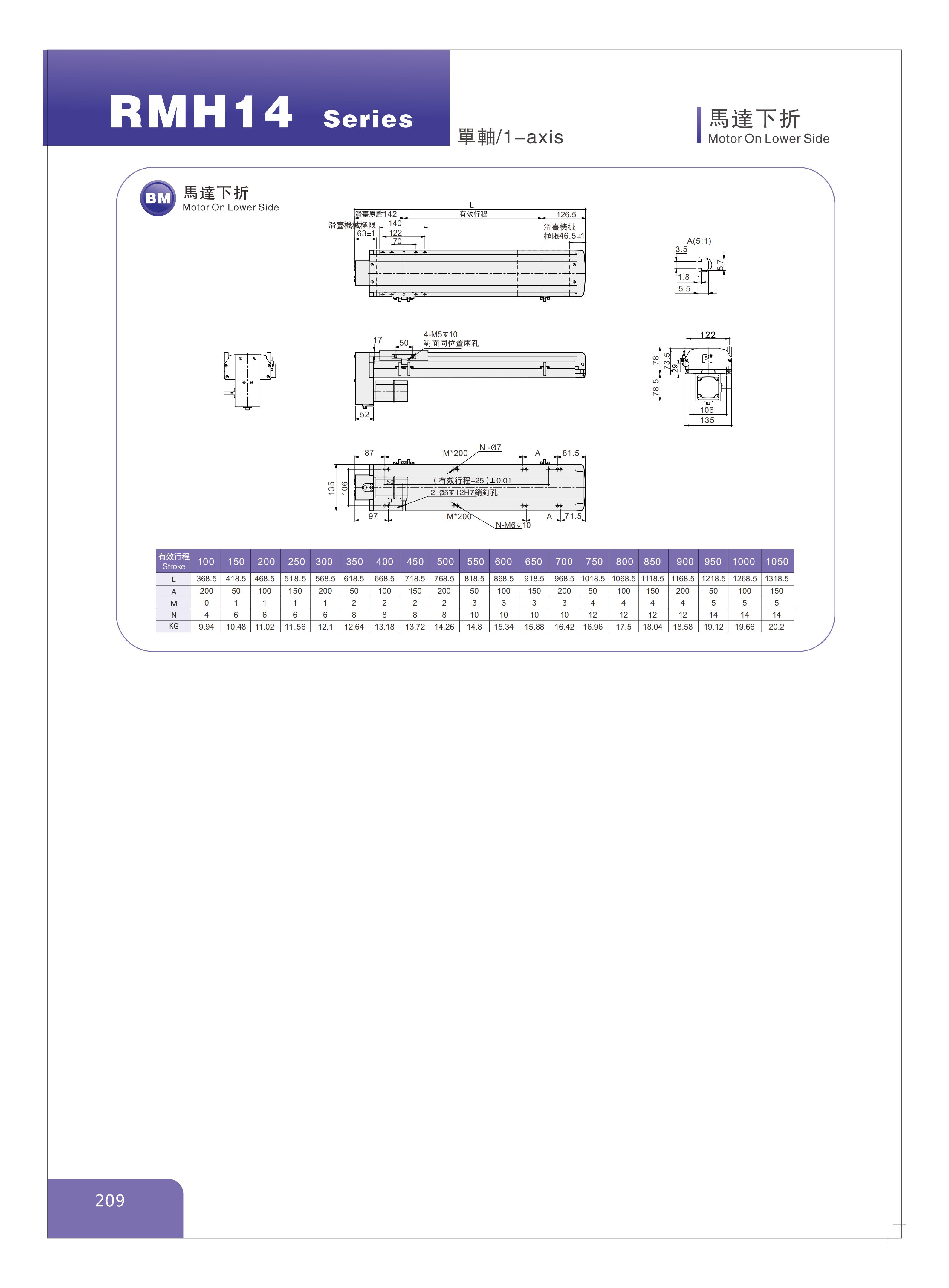

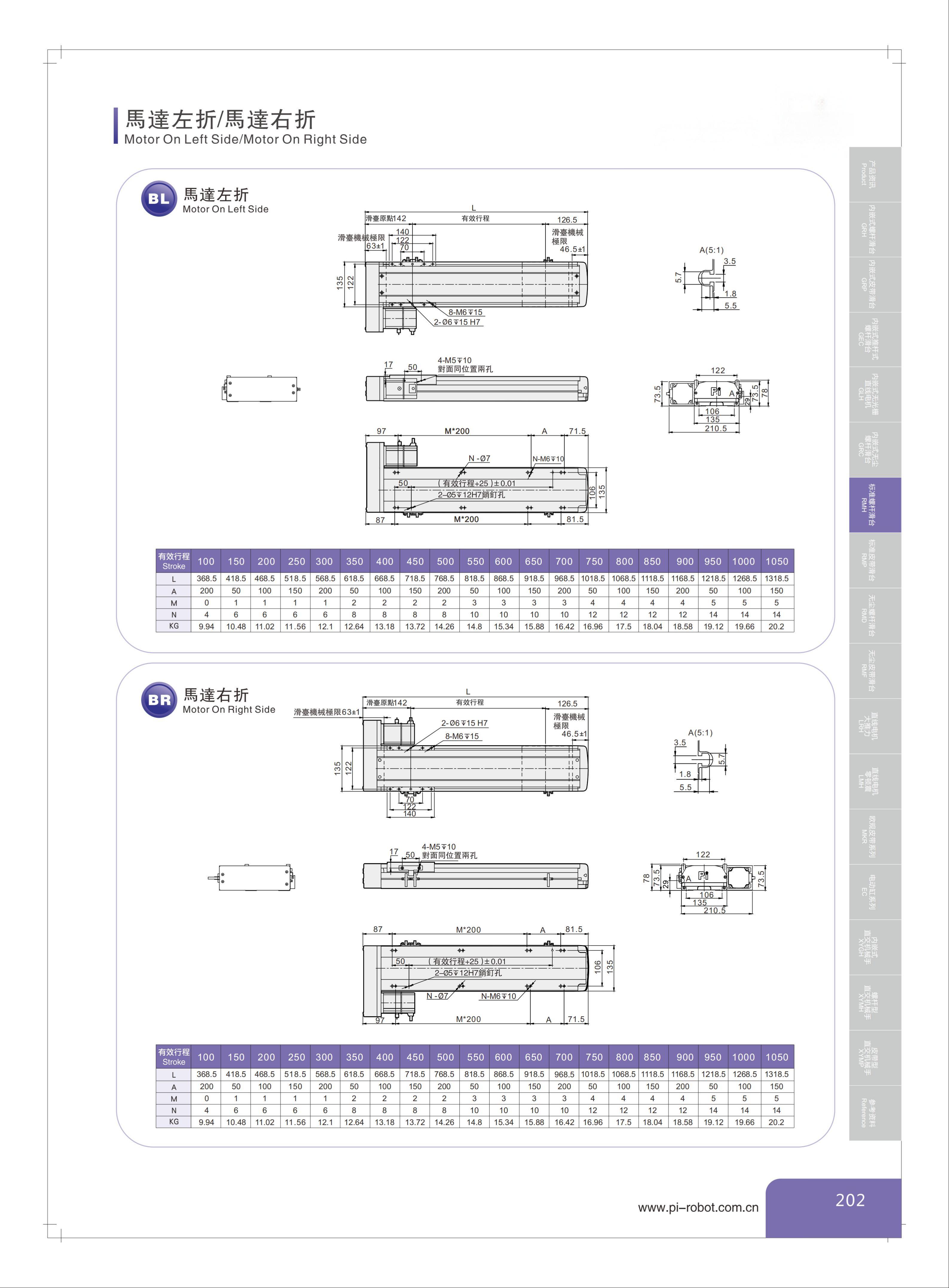

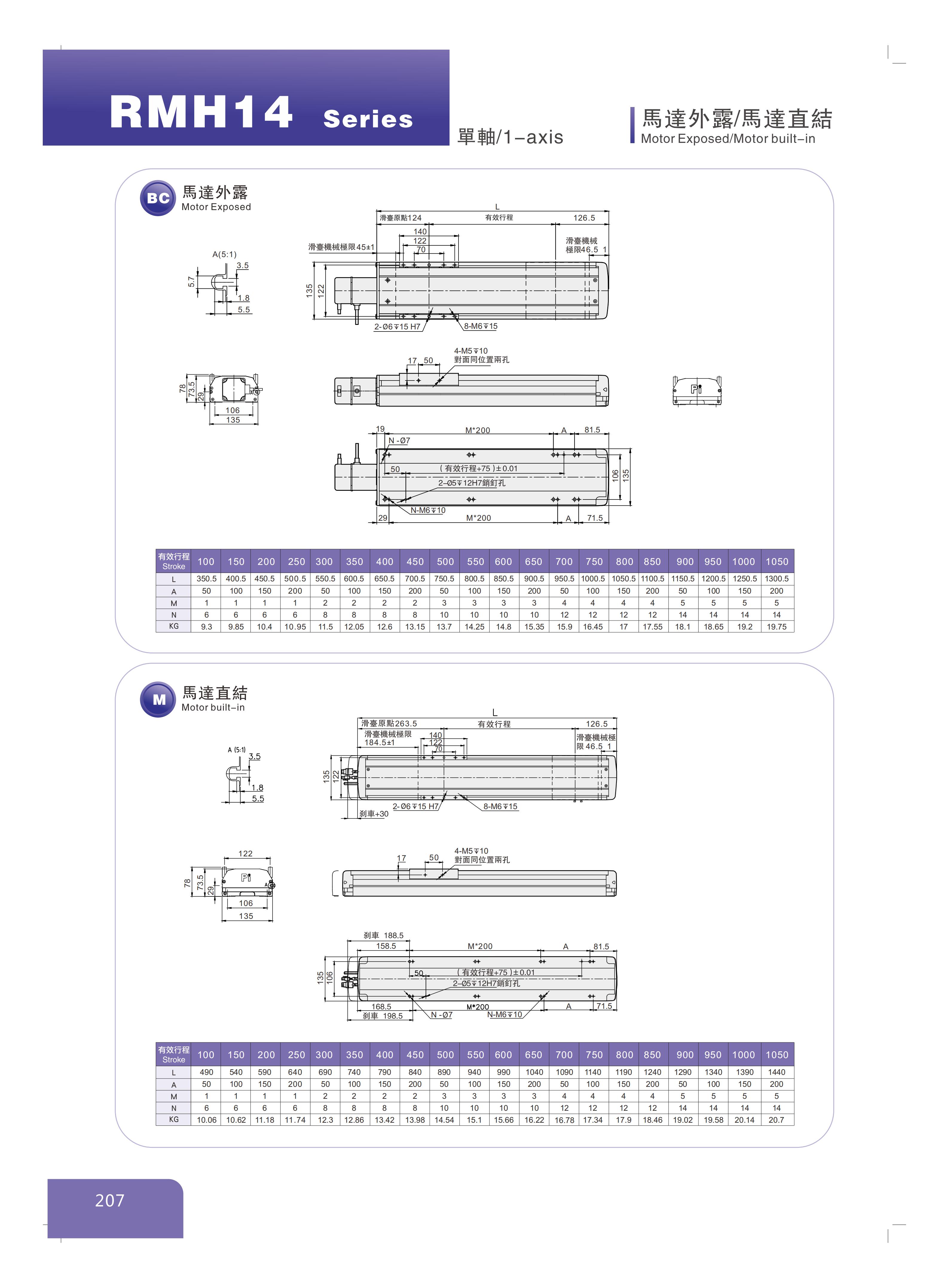

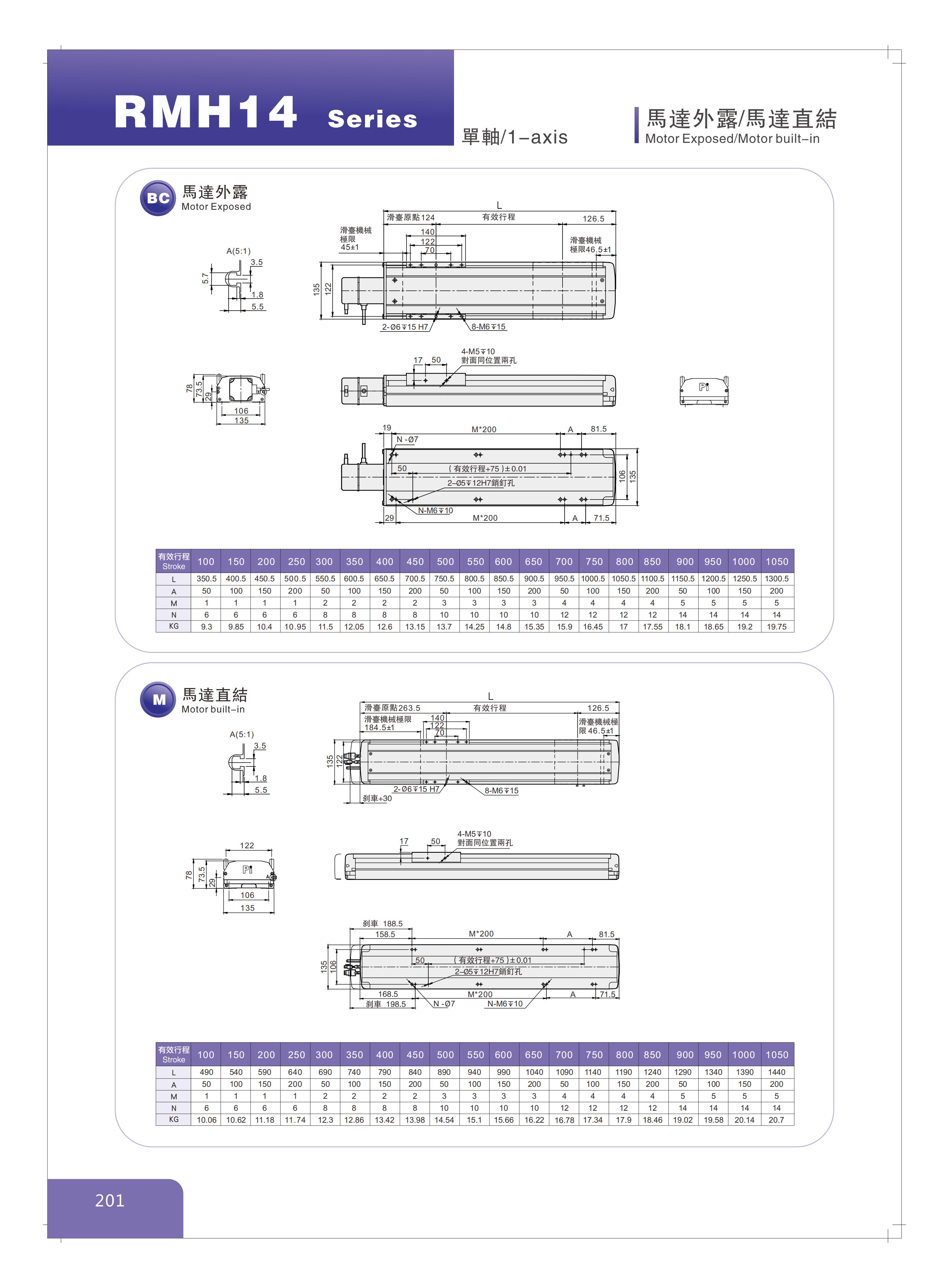

Description	Ball Screw Slide Table, Linear Module
Repeatability（mm）	±0.01
Belt Lead(mm)	5-32
Maximum Speed(mm/s)	250-1600
Horizontal(kg)	95
Stroke Pitch(mm)	100-1050mm/50
AC Servo Motor Output(W)	200
Ball Scrrew（mm）	C7o16
High Rigidity Linear Guide(mm)	W15xH12.5
Couping(mm)	10X14
Home Sensor	EE-SX674(NPN)
