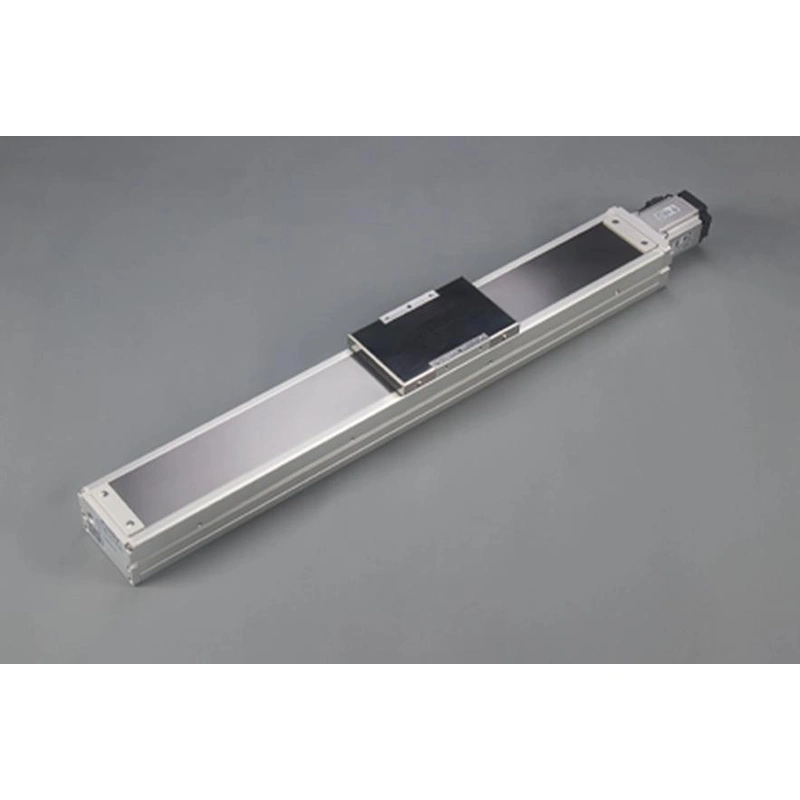

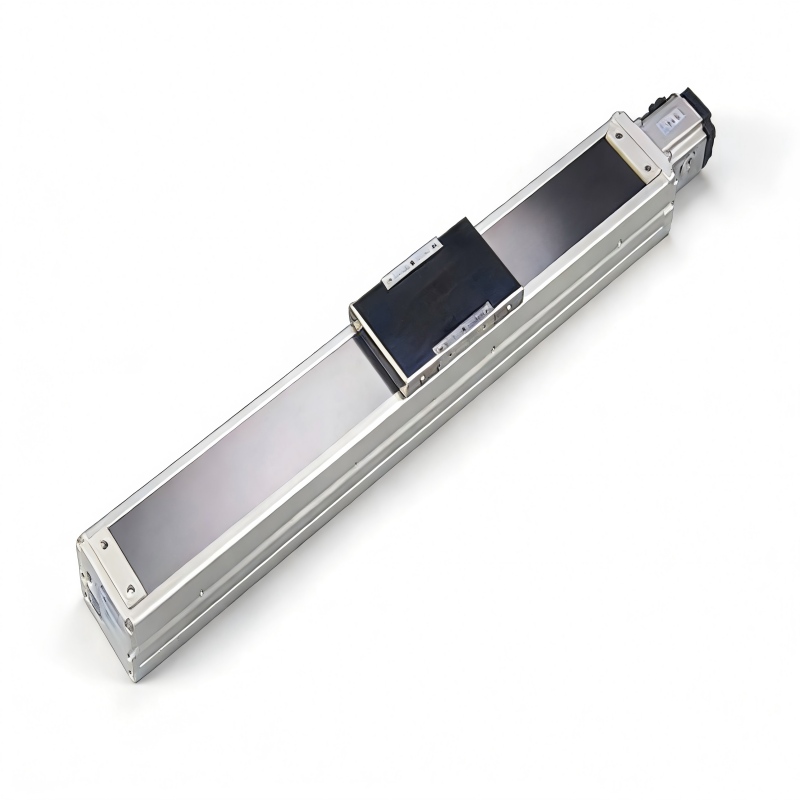

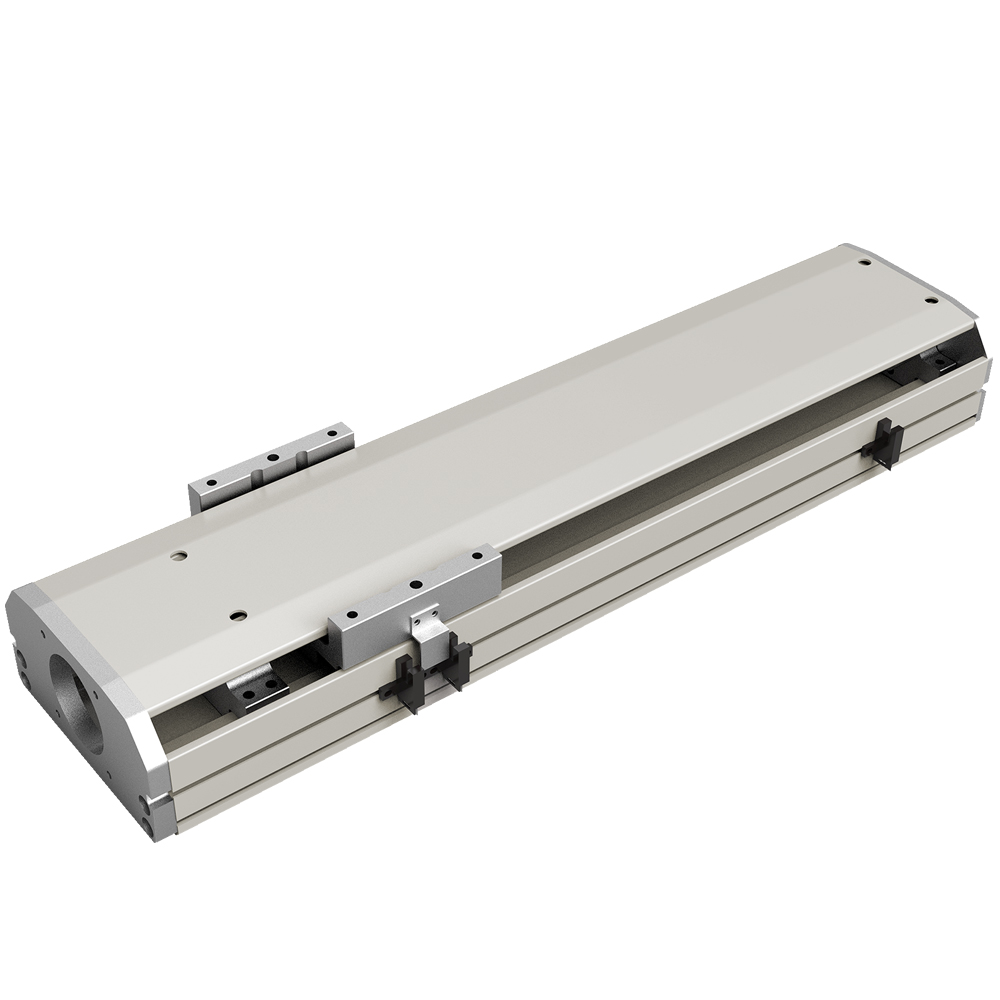

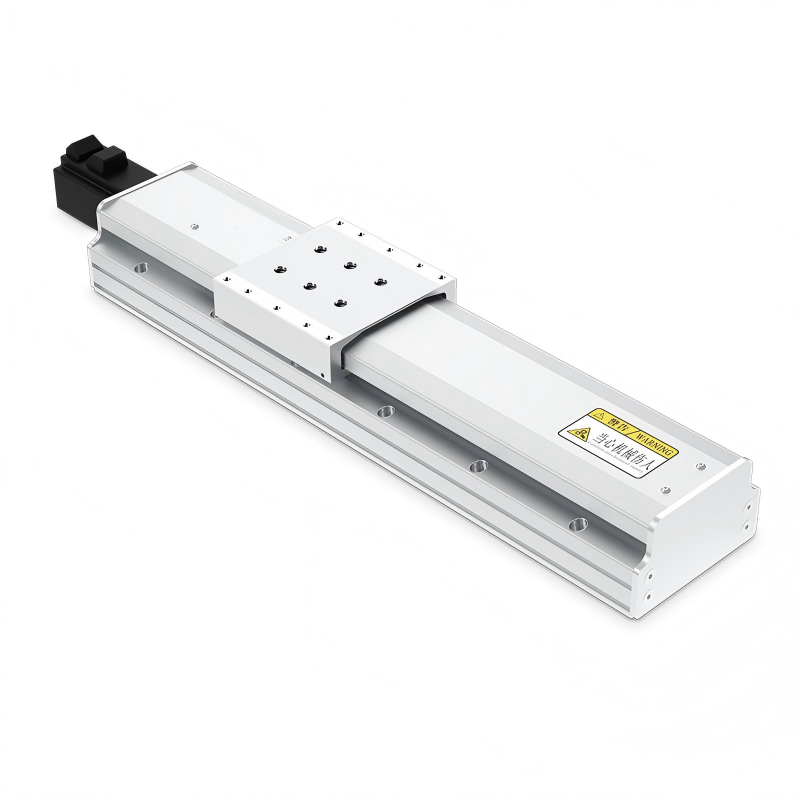

Cleanroom Ball Screw Linear Module, Low Particle Release High Rigidity Dustless Linear Actuator for Semiconductor Medical Industrial Automation Equipment

Elevate your precision automation with our industry-leading Cleanroom Ball Screw Linear Module—engineered to deliver sub-micron accuracy while maintaining ISO 14644-1 Class 4/Class 10 cleanroom compliance. Perfect for semiconductor manufacturing, medical device production, and other contamination-sensitive applications requiring uncompromised motion control

Core Features

🔬 Ultra-Low Particle Generation Technology

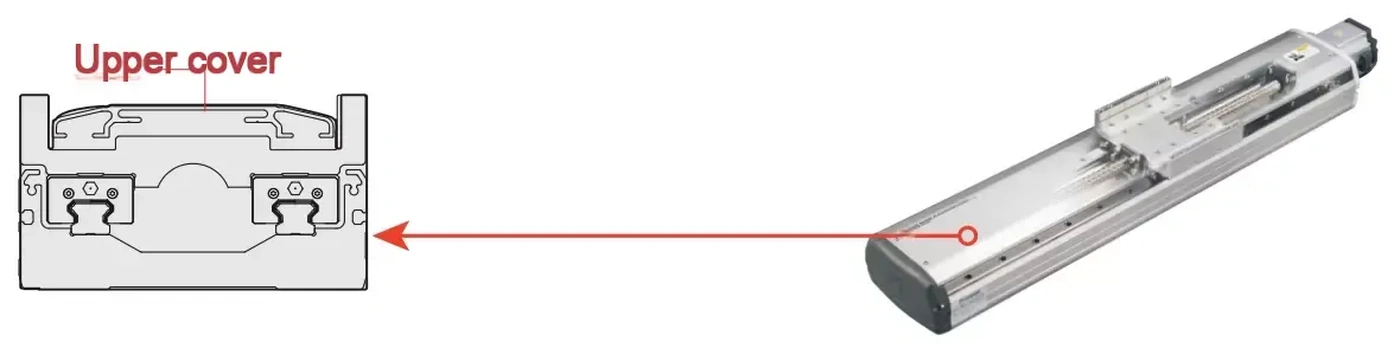

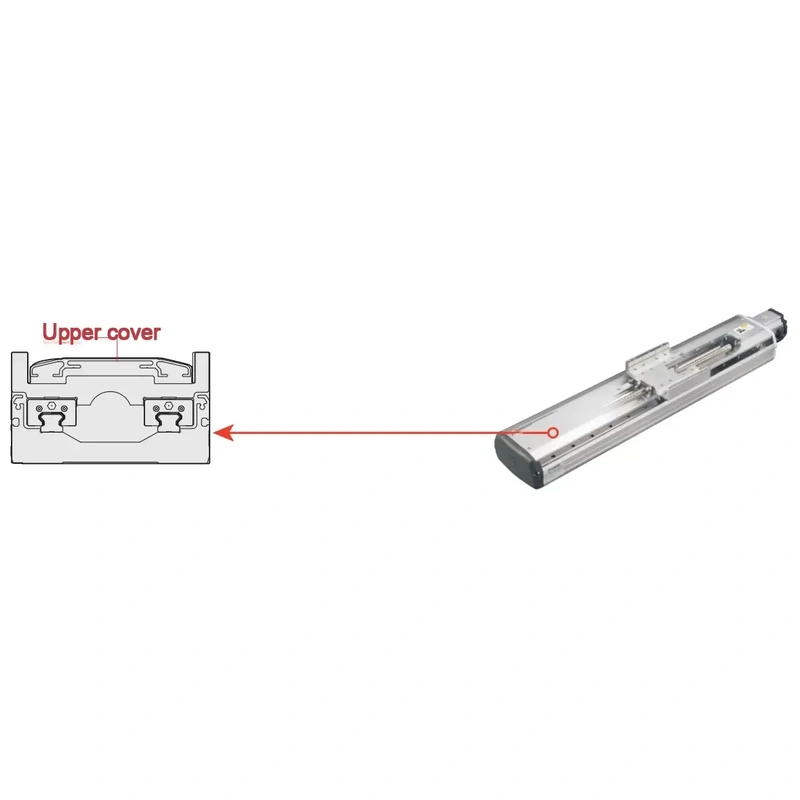

• Fully enclosed stainless steel belt seal system with labyrinth end wipers to minimize particle emission (<10 particles/ft³)
• Low-outgassing, anti-static materials throughout the structure to prevent electrostatic discharge and particle adhesion
• Vacuum-compatible design with optional suction ports for Class 1 cleanroom environments when connected to external vacuum sources

🎯 Precision Engineering Core

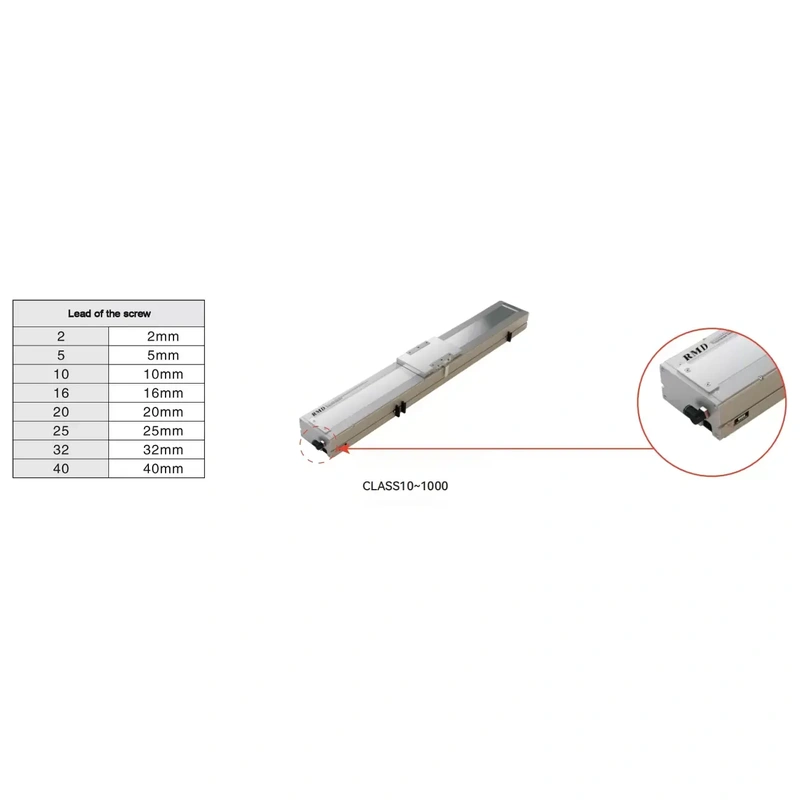

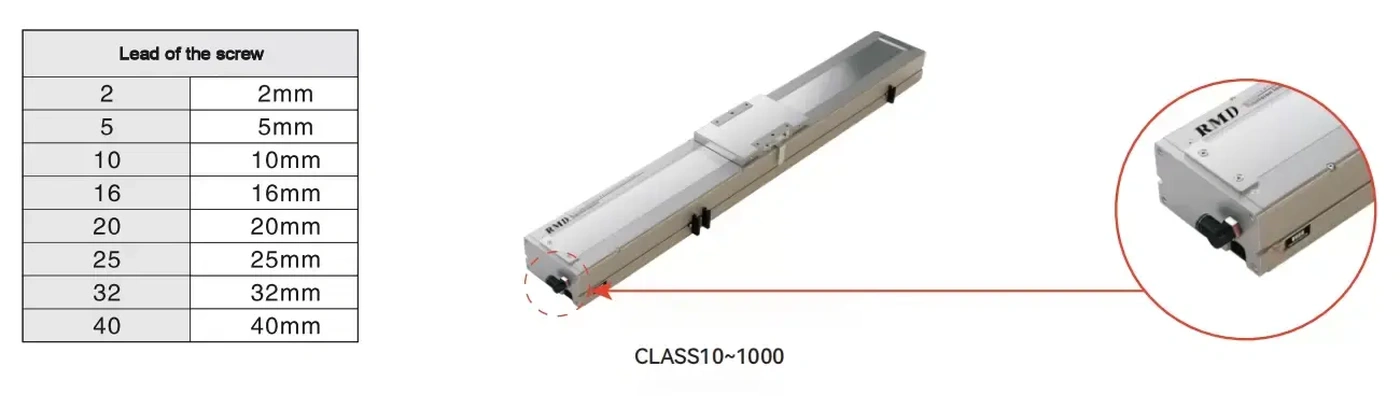

• C7/C5 grade precision ball screws with zero-backlash preloaded nuts for repeatability up to ±0.005mm
• High-rigidity crossed roller or linear guideways ensuring exceptional positional accuracy and stability under dynamic loads
• Direct-drive coupling system eliminating transmission backlash and ensuring smooth motion transfer

💎 Robust Cleanroom-Compliant Construction

• Anodized aluminum alloy base with corrosion resistance and lightweight design for easy multi-axis integration
• Sealed lubrication system using cleanroom-approved lubricants with extended maintenance intervals
• IP65-rated protection against dust and moisture ingress while maintaining operational cleanliness

🛠️ Flexible Configuration Options

• Multiple motor mounting orientations (inline, left/right/down folding) compatible with stepper, servo, and linear motors
• Custom stroke lengths from 50mm to 2000mm with standardized mounting interfaces for seamless system integration
• Integrated limit switches and encoder feedback for enhanced motion control and safety monitoring

Core Advantages

✅ Unmatched Cleanroom Performance

• Certified ISO 14644-1 Class 4/Class 10 compliance—ideal for semiconductor, pharmaceutical, and medical device manufacturing
• Minimized total cost of ownership through reduced contamination risks, lower maintenance needs, and extended service life
• Consistent performance in extreme environments including temperature-controlled rooms and vacuum chambers

🚀 Precision & Efficiency Redefined

• 90%+ transmission efficiency with ball screw technology, reducing energy consumption compared to traditional lead screws
• Dynamic response capabilities supporting speeds up to 1600mm/s without compromising positioning accuracy
• High load capacity (up to 110kg horizontal) with exceptional rigidity for heavy-duty precision applications

🛡️ Enhanced Process Reliability

• Zero contamination risk—sealed design prevents lubricant leakage and external particle intrusion
• Superior durability with corrosion-resistant materials and optimized ball circulation systems for millions of maintenance-free cycles
• Simplified integration with standardized communication protocols (EtherCAT, Modbus, PROFINET) for easy automation system connectivity

💡 Cost-Effective Precision Solution

• Lower operational costs through reduced downtime, minimal maintenance, and energy-efficient operation
• Flexible scalability—easily configurable for single-axis or multi-axis Cartesian robot systems
• Future-proof design with modular components supporting upgrades and reconfiguration for evolving production needs

Applications

🧪 Semiconductor & Microelectronics

• Wafer handling and positioning in lithography, etching, and deposition equipment
• PCB drilling and inspection systems requiring sub-micron accuracy
• FPD (Flat Panel Display) manufacturing including OLED and LCD panel cutting and bonding
• Semiconductor test equipment for high-precision probe positioning

🏥 Medical & Pharmaceutical

• Surgical robotics for minimally invasive procedures requiring precise, sterile motion control
• Laboratory automation platforms for sample handling and analysis in clinical diagnostics
• Medical imaging equipment (CT scanners, MRI machines) for table positioning and detector movement
• Pharmaceutical production for contamination-free filling, capping, and labeling systems

🔬 Precision Optics & Aerospace

• Optical component manufacturing including lens grinding, polishing, and inspection
• Aerospace component testing requiring high-precision positioning in clean environments
• Laser processing systems for micro-machining and precision marking

🍃 Food & Life Sciences

• Food packaging equipment requiring contamination-free handling of sensitive products
• Biotechnology research for precise manipulation of cell cultures and biological samples
• Cosmetics manufacturing for sterile filling and packaging processes
