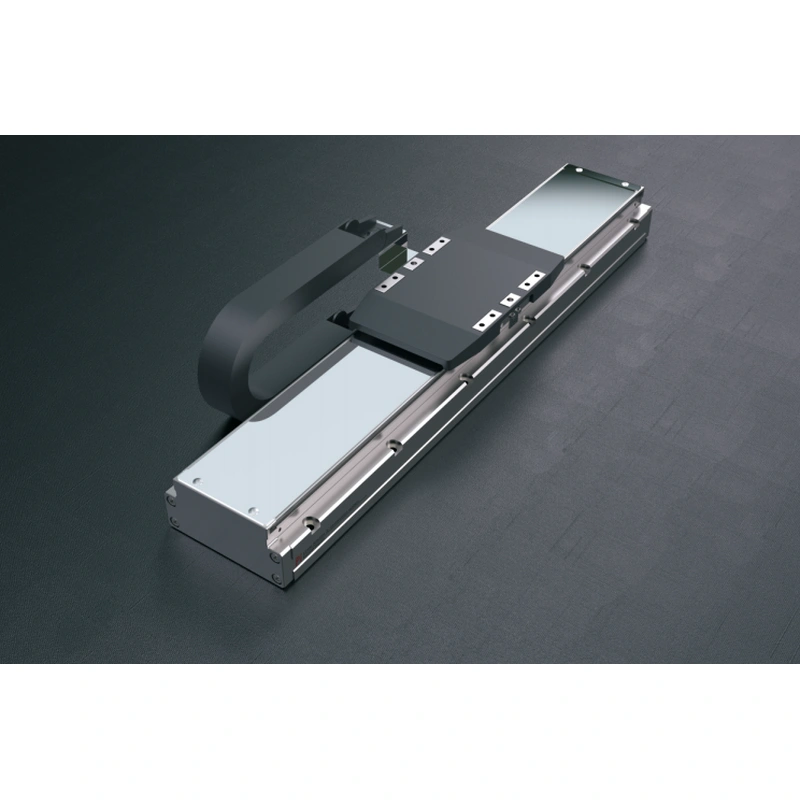

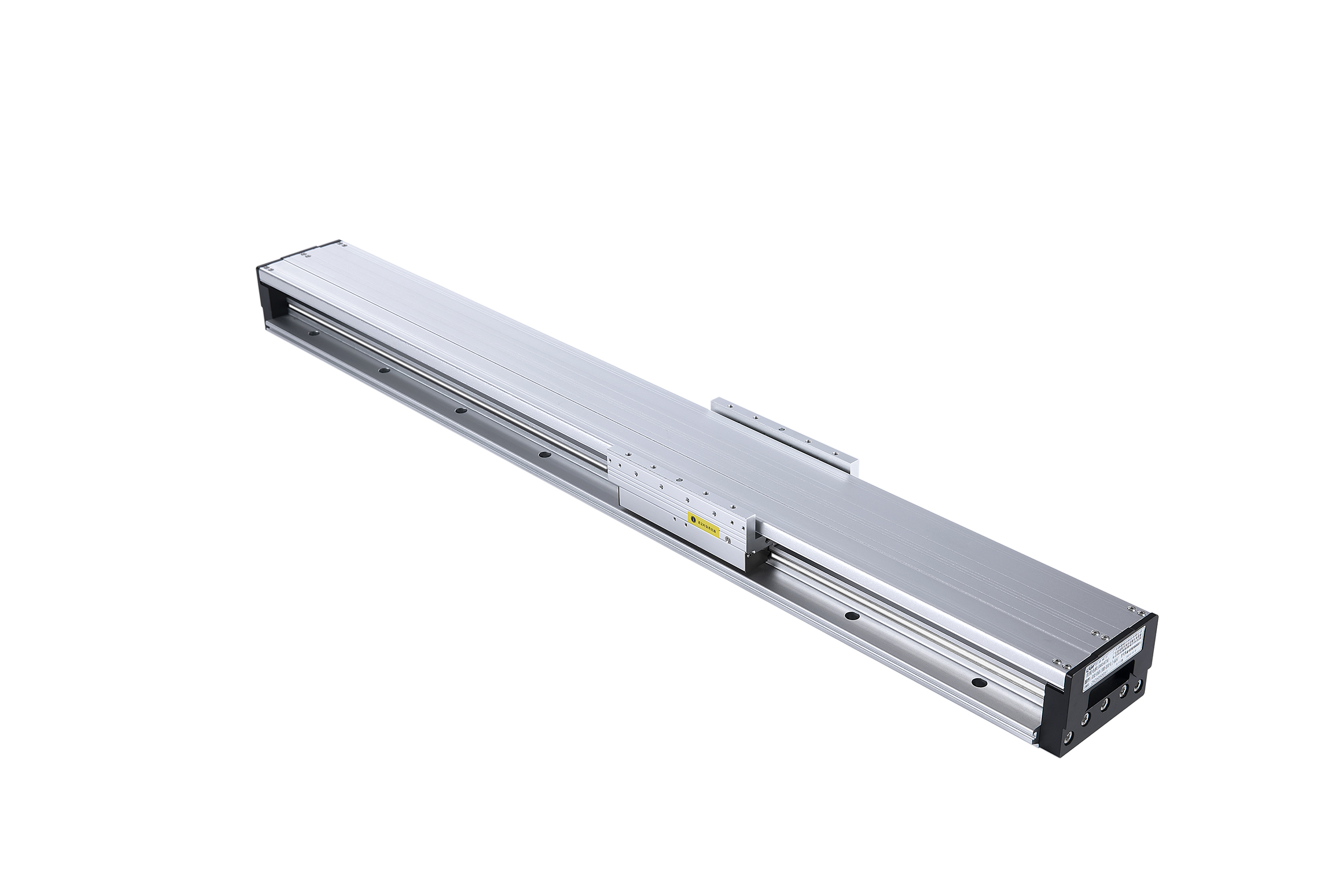

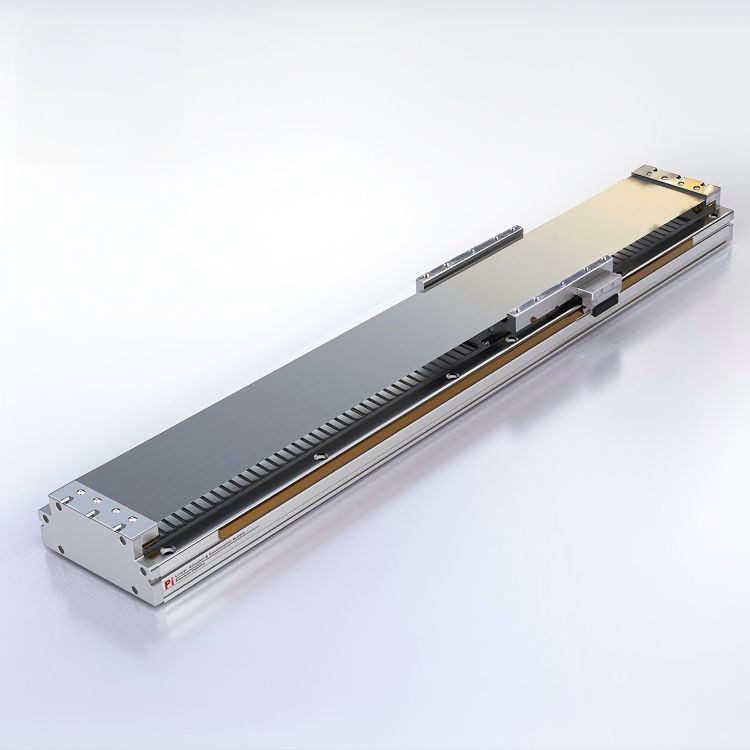

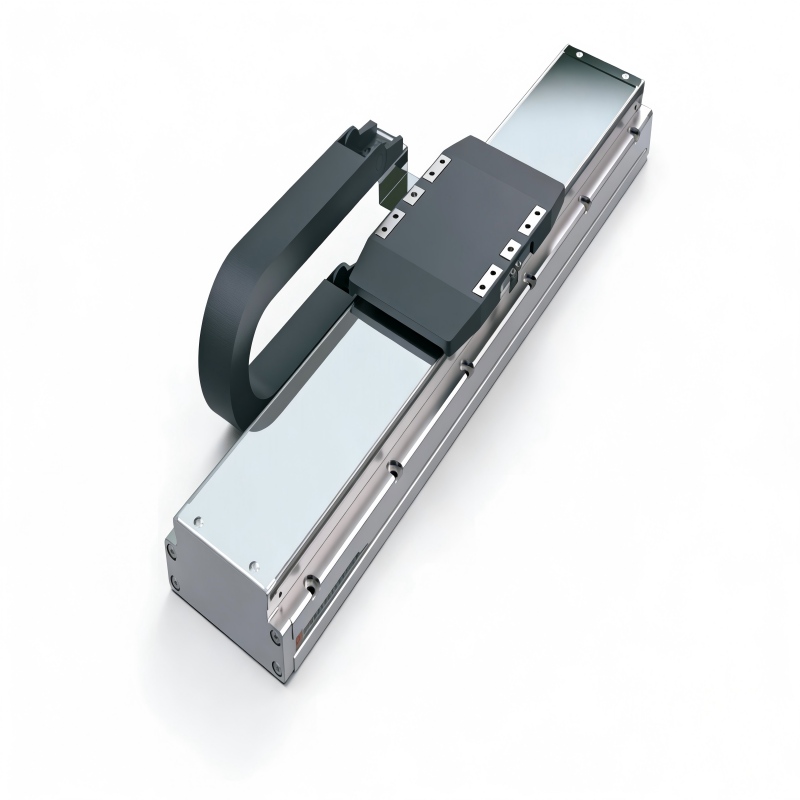

Embedded Linear Motor, Micron Precision Direct Drive Linear Motion Motor with High Thrust, High Speed & Low Resonance for Automation, 3C, Laser & PV Equipment
High precision direct drive embedded linear motor for industrial linear motion control
The embedded linear motor adopts advanced electromagnetic induction working principle, converting electromagnetic force between stator and mover into direct linear motion. The fixed stator and load-connected mover eliminate intermediate mechanical transmission structures completely, effectively removing mechanical gaps and friction during operation.
Equipped with standard magnetic scale and optional optical grating scale, this linear motor delivers exceptional positioning performance: the standard magnetic scale features 1μm resolution and ±3μm repeat positioning accuracy, while the optional optical grating scale reaches 0.1μm resolution and ±2μm repeat positioning accuracy, achieving micron-level ultra-precision positioning.
In terms of power and load performance, it provides 188N continuous thrust and 564N peak thrust, supporting load ranges from 10kg to 80kg to meet diverse load demands. It supports a maximum running speed of 3m/s with 0.5G acceleration and deceleration, realizing high-speed dynamic operation.
Built with high-rigidity structure and high-performance permanent magnet synchronous motor, the motor operates stably without resonance, maintaining smooth motion trajectories under high dynamic response. It also features simple structure, low wear and low maintenance requirements for long-term stable operation.
Core Advantages
- Ultra-high Precision Positioning
Built-in high-precision measuring scales support micron-level positioning. Two types of scales for selection cover different precision standards, perfectly matching strict accuracy requirements of sophisticated industrial equipment and precision instruments.
- Excellent Dynamic Performance
Direct-drive design greatly improves dynamic response speed. High running speed and strong acceleration capacity significantly boost production efficiency, ideal for cycle-sensitive automated processes.
- Strong Load & Thrust Capacity
Wide thrust and load coverage adapts to light handling, medium and heavy-duty processing scenarios. Uniform and stable output force ensures consistent operation under varying load conditions.
- Smooth & Stable Operation
Free of mechanical transmission gaps and friction, combined with anti-resonance rigid structure, the motor runs ultra-smoothly, avoiding trajectory deviation caused by vibration.
- Low Maintenance & Long Service Life
Simplified mechanical structure reduces wear parts and daily maintenance work, cutting operational costs and ensuring continuous reliable operation in industrial environments.
- Flexible Customization & Adaptability
Multiple models for different stroke lengths, load capacities and environmental conditions. Flexible parameter configuration fits customized motion control demands of various automated equipment.
Applications
This embedded linear motor is widely used in industries requiring high precision, high speed and stable linear motion, serving global industrial automation, precision manufacturing, new energy, laser processing and scientific research fields.
- General Industrial Automation Production Lines: Material handling, product assembly, automated inspection and sorting processes
- 3C Electronics Industry: Precision dispensing, component laminating, soldering and high-speed assembly
- Photovoltaic & New Energy Industry: Solar cell string welding, module layout and new energy component processing
- Laser Processing Industry: Laser cutting, marking, engraving and precision laser machining
- Precision Instruments & CNC Machine Tools: High-precision motion control for CNC equipment and measuring instruments
- Scientific Research & Defense Industry: High-precision experimental platforms, motion simulation systems and sophisticated test equipment
- Precision Manufacturing Equipment: All kinds of sophisticated automated devices that demand complex linear motion control

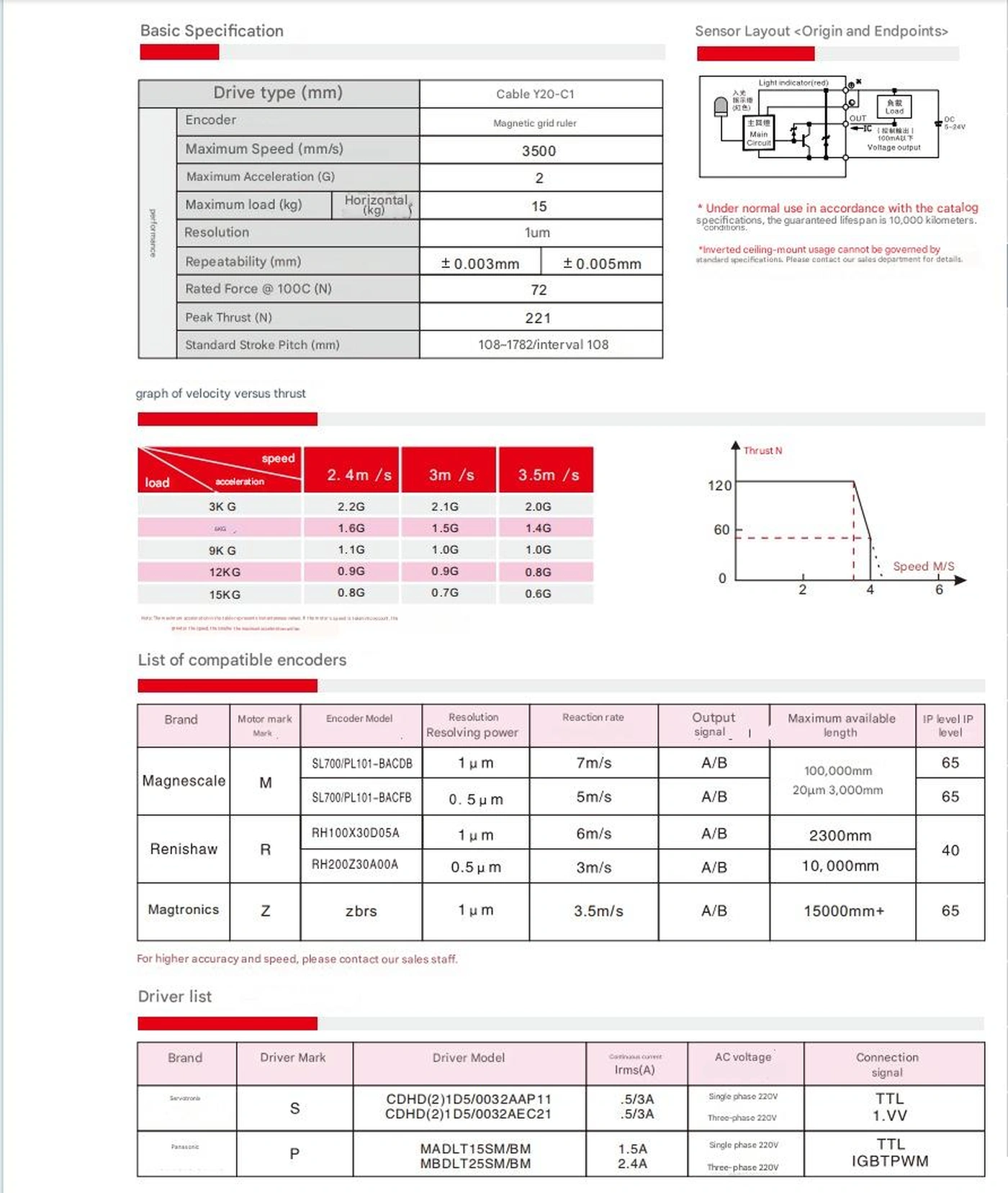

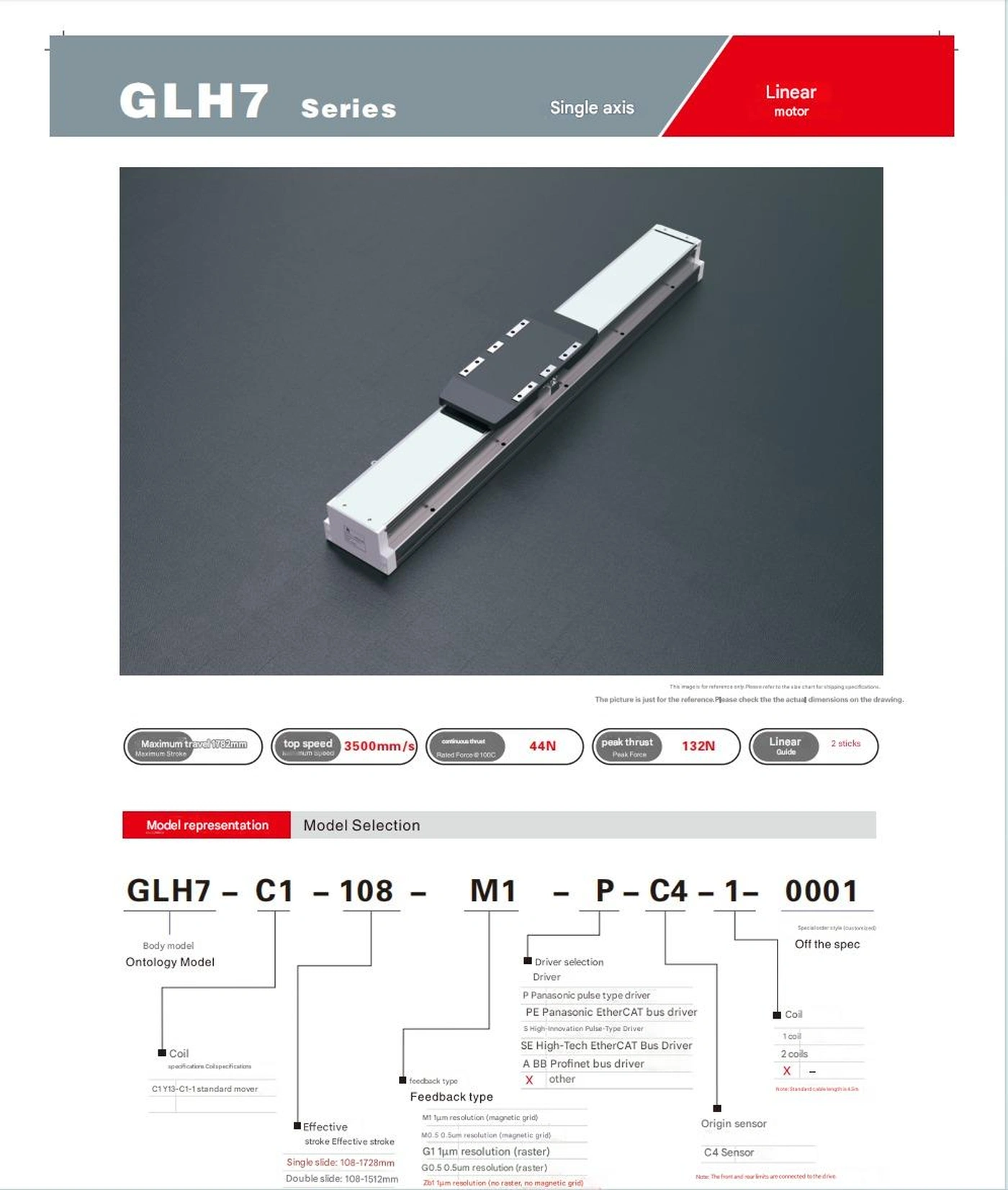

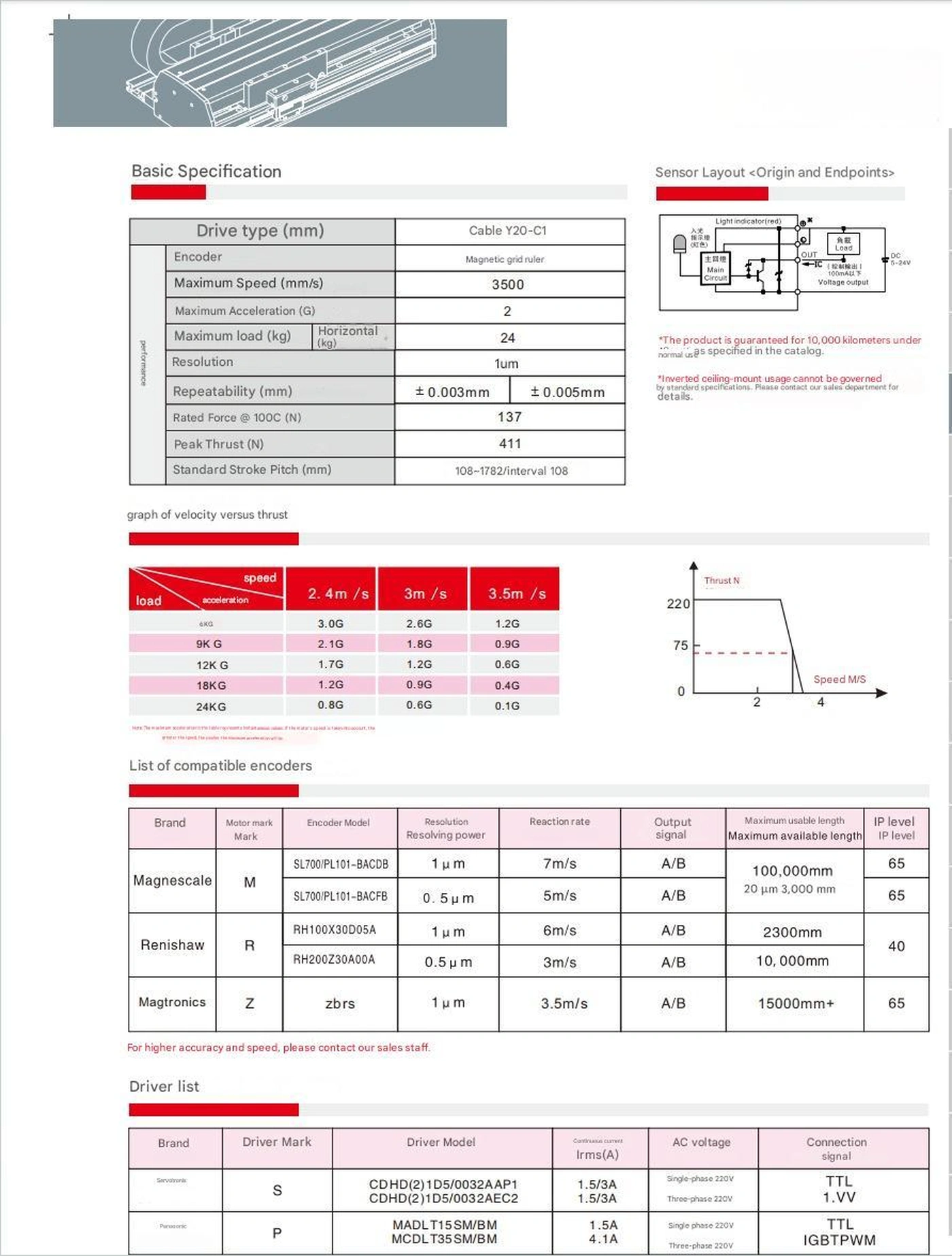

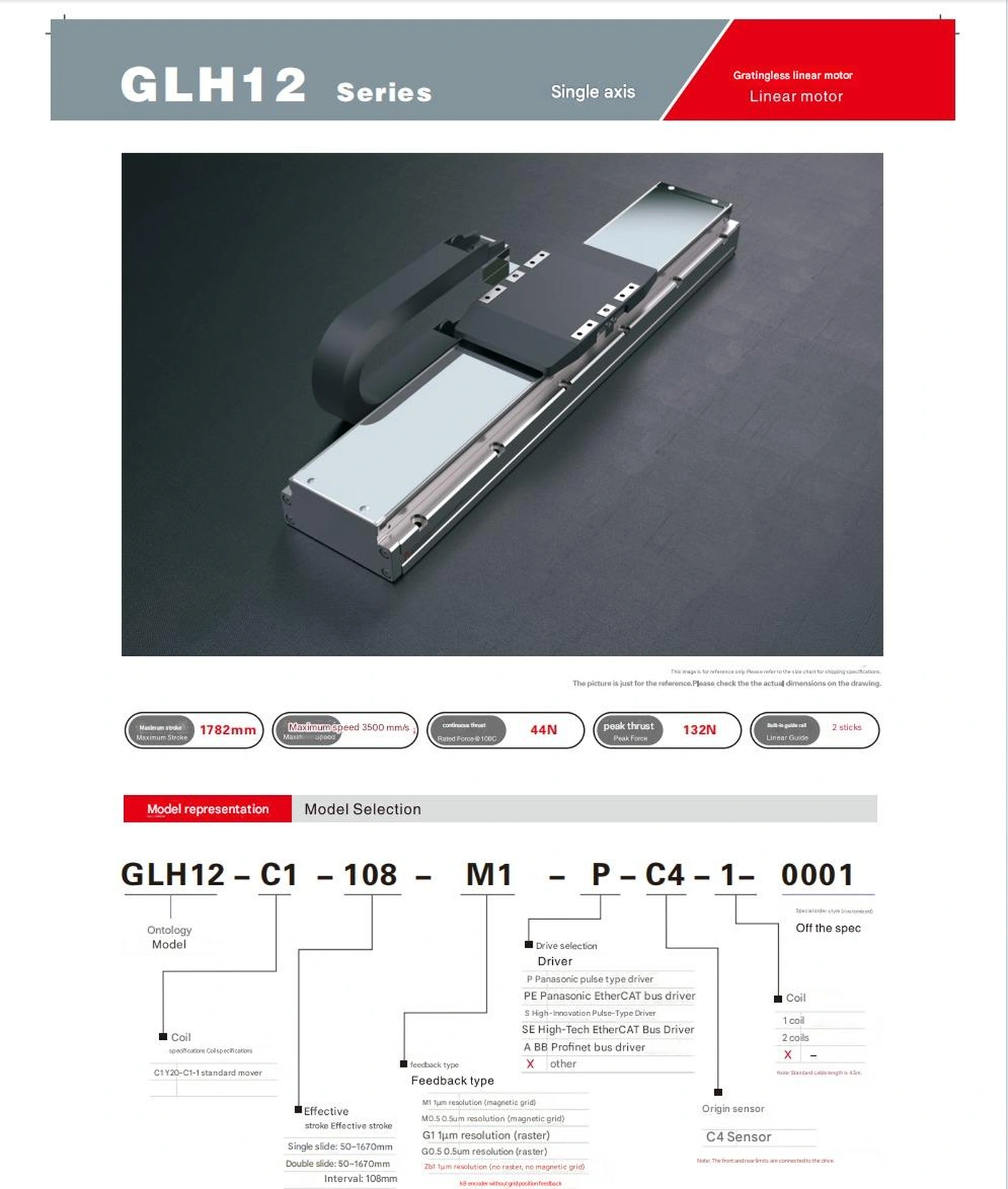

| Model |
GLH7/GLH12/GLH15 |
|---|---|
| Coil |
Y3-C1 |

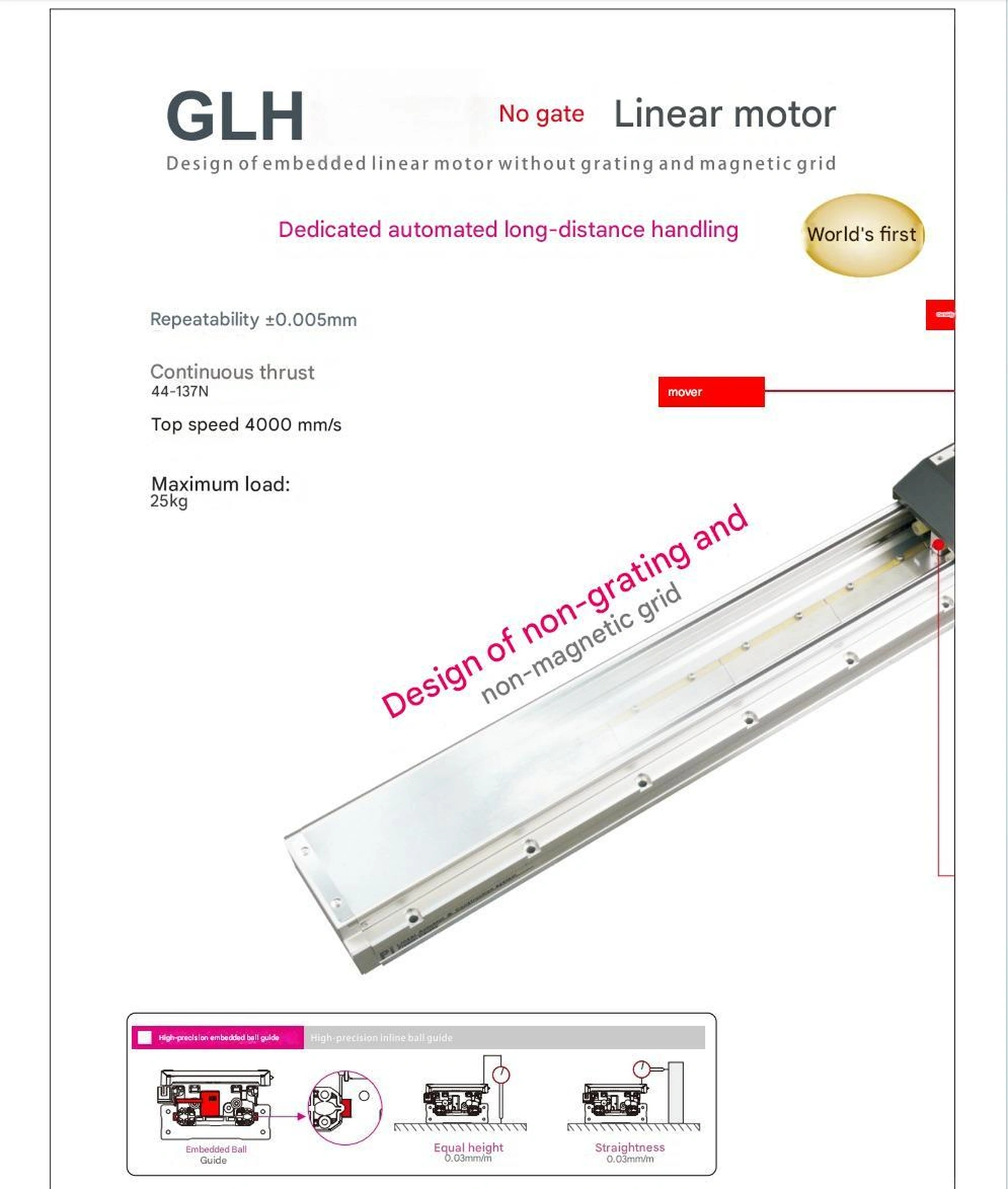

| Encoder-less |
No Optical or Magnetic Encoder |
| Maximum Speed |
3500 mm/s |
| Maximum Payload |
12 kg (Horizontal) |
| Rated Force |
44 N |
| Peak Force |
132 N |
| Stroke (Effective Stroke) |
108 mm to 1782 mm (Varies by model) |
| Resolution |
1 µm |
| Matching Motor |
Panasonic MADLT055M8/BM ,MMADLT15SM/BM |
| AC Voltage |
3-phase ,1.1 A ,1.5 A |
