ISV2 Series Intelligent Integrated Low Voltage Servo Motor – CANopen & RS485 Communication For Automation Solution

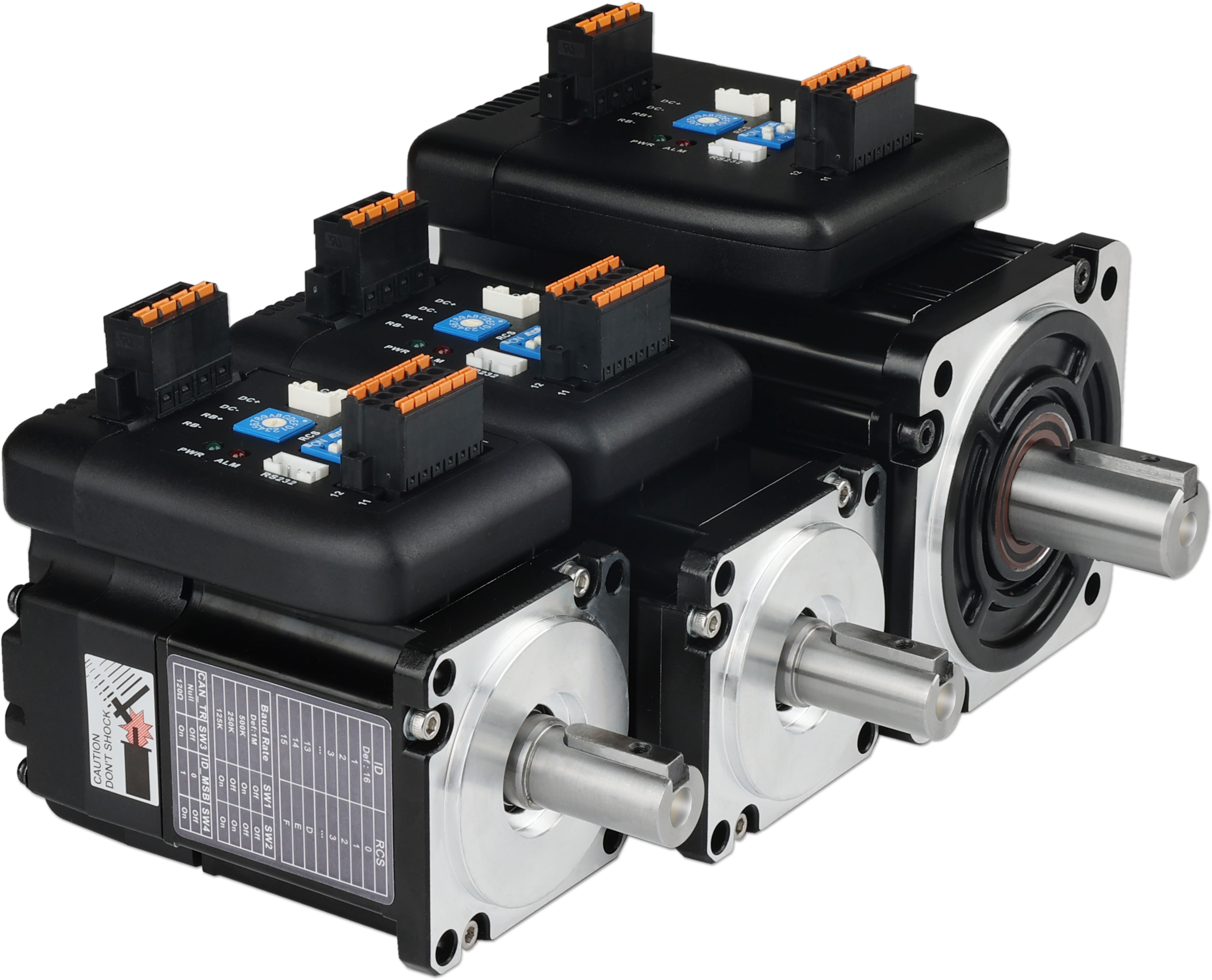

The ISV2 Series Intelligent Integrated Low Voltage Servo Motor combines motor, driver, and encoder into a single compact unit, offering seamless installation and reduced wiring complexity. Available in 60mm and 80mm frame sizes with power ratings from 200W to 750W, this motor is ideal for automation systems that demand precision, performance, and space efficiency.

Supporting CANopen and RS485 communication protocols, the iSV2 ensures smooth integration with a wide range of industrial applications, providing reliable and real-time control across various systems. Whether in robotics, CNC machinery, or packaging lines, this servo motor delivers high torque, precision control, and long-lasting durability.

Core Advantages

• All-in-One Integrated Design

  Perfectly integrates motor, drive, and 17-bit encoder into a single unit, eliminating external drive components and complex wiring. Available in 60mm and 80mm frame sizes with power ratings from 200W to 750W (peak torque up to 7.2Nm)
• Advanced Communication Capabilities

  Dual bus support with CANopen (CiA301/CiA402) and RS485 (Modbus RTU) protocols, enabling seamless integration into complex automation systems. Supports pulse & direction control for easy retrofitting.
• High-Performance Core Specifications

  Wide voltage input range (24-60VDC), 1:5000 speed ratio, and 5000rpm max speed for versatile operation. 17-bit encoder provides 1/10000r positioning accuracy for precision tasks.
• Flexible Model Selection

  16 different models available with optional brakes, covering diverse application requirements from light-duty to heavy-duty operations. High overload capacity (250%-300% for 3 seconds) ensures reliable performance under varying loads.
• User-Friendly Configuration

  Intuitive setup via Leadshine Motion Studio software, with 16 programmable logic paths and 4 configurable digital inputs/2 outputs for customized control.

• • Space-Saving Compactness

    Reduces overall system footprint by 30-50% compared to traditional separate servo systems, ideal for space-constrained installations. Simplified mounting with fewer components to install and align.
  • Simplified Installation & Maintenance

    Eliminates expensive power and encoder cables (saving up to 80% wiring time), reducing installation costs and potential connection failures. Minimizes troubleshooting complexity with integrated diagnostics.
  • Enhanced System Reliability

    Significantly reduces electromagnetic interference (EMI) by eliminating long cable runs between motor and drive. Improved signal integrity ensures consistent performance in harsh industrial environments.
  • Optimized Cost Efficiency

    Lower total cost of ownership through reduced component count, wiring expenses, and maintenance requirements. Energy-efficient design minimizes power consumption while delivering high performance.
  • Superior Motion Performance

    Smooth operation from standstill to high speed with stable torque characteristics across the entire speed range. Fast response and precise positioning enhance machine productivity and product quality.

  Applications:

  • Robotic Systems: For smooth, accurate motion control.

  • CNC Machinery: Ensures high precision for machining tasks.

  • Material Handling & Packaging: Reliable and efficient for automated production lines.

  • Textile & Printing Machines: Delivers precision and stability in fast-paced environments.

  The iSV2 Series offers a high-performance, energy-efficient solution that meets the needs of modern automation systems, combining flexibility, reliability, and cost-effectiveness in one compact package.
