Leadshine DM1 Open‑loop Stepper Driver

Leadshine DM1 open‑loop stepper driver adopts advanced 32‑bit DSP motor‑specific chip, delivering faster acceleration, lower heat generation and minimized low‑speed vibration for 2‑phase stepper motor automation systems.

Categories: Motion Control, Stepper Drivers

Description
Technical Parameters

Leadshine DM1 Open‑loop Stepper Driver

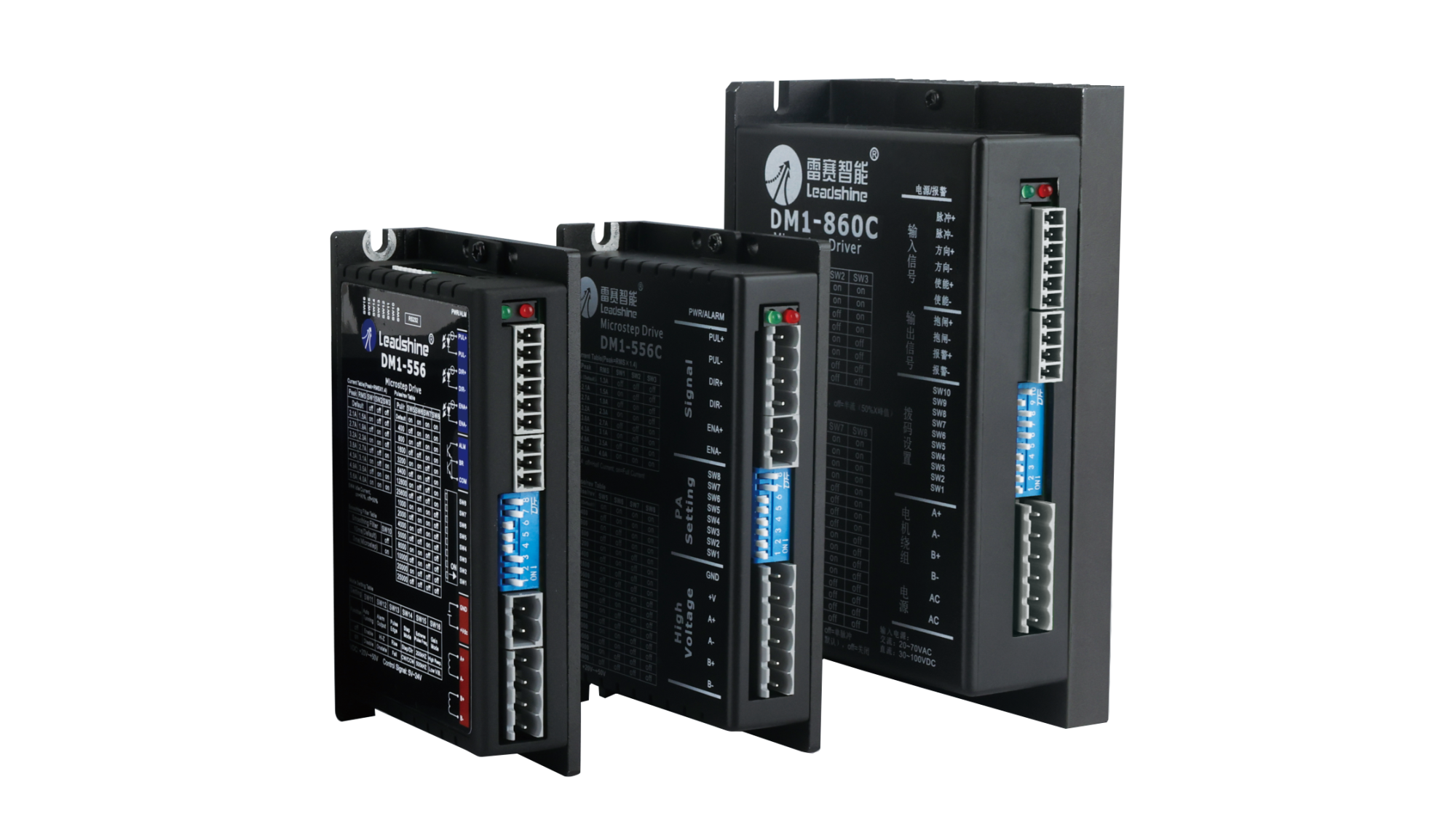

Leadshine DM1 series is a standard pulse‑type open‑loop stepper driver built on over 20‑year field application experience in motion control technology Powered by the latest dedicated DSP motor control chip and nine revolutionary motor control algorithms, this open‑loop stepper solution greatly enhances motor acceleration performance, cuts down heat generation of both motor and driver, and effectively suppresses low‑speed motor vibration.

DM1 series is fully compatible with 2‑phase stepper motors from frame size 20 up to 130, featuring high positioning accuracy and rapid response. Each unit comes with dedicated debug port, multi‑function DIP switches and integrated metal heat sink, balancing outstanding performance, comprehensive functions and exceptional long‑term stability. It delivers reliable, cost‑effective motion control to empower equipment upgrade across smart manufacturing sectors worldwide

Built around high‑performance 32‑bit DSP digital processing chip, DM1 open‑loop stepper driver executes advanced open‑loop control algorithms to convert pulse & direction commands into precise current output for two‑phase stepper motors.

Nine core optimized control technologies work together to solve common pain points of traditional stepper drives:

Boost motor acceleration capability for faster cycle response
Reduce overall thermal buildup for extended continuous running
Suppress low‑speed resonance & mechanical vibration for smoother motion
Real‑time current adjustment stabilizes output torque under varying working conditions

Support dual control modes: pulse signal control and IO control. Logic input accepts wide‑range 5‑24V pulse signal level, easy interfacing with PLC, motion controllers and mainstream automation host systems. Integrated metal heat sink ensures reliable thermal dissipation under 24/7 continuous production conditions. Rich DIP switch options allow quick configuration of micro‑step, output current and functional parameters without extra software setup Leadshine DM1 open‑loop stepper driver

Core Advantages

High Reliability & Excellent Cost‑Performance
Robust hardware design with metal heat sink, mature algorithm validated by decades of real‑world deployment, stable for long‑hour continuous operation, balances premium performance and competitive total cost.
5‑24V Wide‑range Pulse Signal Compatibility
Supports both 5V and 24V logic pulse input, seamless connection with diverse PLC, controller hardware, no extra signal conversion circuit required.
Versatile DIP‑switch Configuration
Abundant DIP switch settings for micro‑stepping resolution, output current and functional parameters; fast on‑site setup, convenient for machine debugging and commissioning.
Dual‑mode Control: Pulse & IO Control
Supports standard pulse‑direction control and IO speed/position control, flexible to fit different machine architecture requirements.
Low‑vibration, Low‑heat Operation
Optimized DSP algorithm reduces motor low‑speed vibration and heating, improves finished‑product consistency for precision automated equipment.
Broad Motor Compatibility
Covers 20‑130 frame size two‑phase stepper motors, one driver series matches multiple motor specifications to simplify spare‑part inventory.

Application

Leadshine DM1 open‑loop stepper driver is widely deployed for precision positioning and motion tasks in smart‑manufacturing equipment:

3C electronics assembly & processing equipment
Semiconductor production and inspection machinery
Precision machine tools & automated tooling
Laser marking, laser cutting and laser processing systems
Photovoltaic manufacturing production lines
Lithium‑battery assembly and testing equipment
General industrial automation, automated production‑line retrofitting
Packaging machinery, dispensing machines, pick‑and‑place devices

Ideal for OEM machine builders, system integrators and automation retrofitting projects seeking stable, high‑cost‑performance open‑loop stepper motion control.
