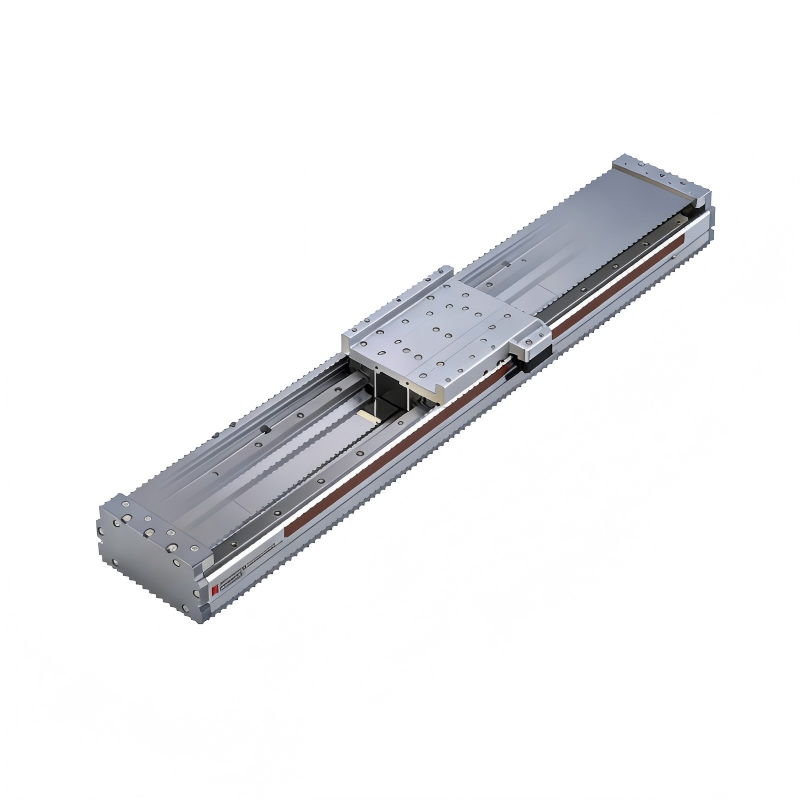

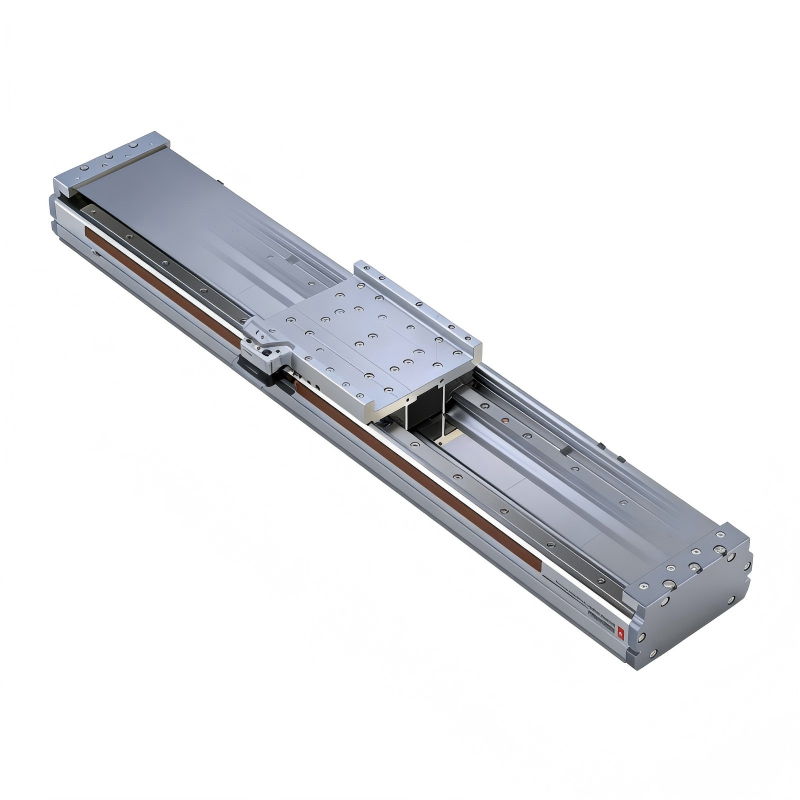

High Precision Direct Drive Linear Motor | Compact High Speed Low Noise Linear Actuator
- High-precision zero-wear linear motor for industrial automation, delivering micron-level accuracy, high speed and long service life to replace traditional ball screws, belts and pneumatics
- Linear Motor – High-Precision Direct Drive for Industrial AutomationLinear Motor is a next-gen direct-drive component engineered for Industry 4.0 and smart manufacturing, converting electrical energy directly into linear motion with no intermediate mechanical parts. Built with high-grade rare-earth magnets, vacuum-impregnated windings, and nanometer-grade closed-loop feedback systems, this Linear Motor delivers stable performance for 24/7 industrial use. Its modular design (flat/U-type/cylindrical) and IP65-rated housing ensure adaptability to harsh environments, while precision manufacturing eliminates transmission gaps, setting a new standard for motion control reliability.Core Performance AdvantagesThis Linear Motor leads in precision, speed, and efficiency:
- 1.Ultra-high precision: ±0.001–0.01mm positioning accuracy and ≤0.005mm repeatability for micron-level operations.
- 2. Extreme speed & response: Up to 5m/s speed and 10G acceleration, with 0.1ms response time for high-dynamic tasks.
- 3. Zero wear & long life: Non-contact operation removes mechanical abrasion, extending service life to 100,000+ hours.
- 4. Low noise & eco-friendly: <50dB operation, no oil/air consumption, ideal for cleanroom and noise-sensitive facilities.
2. Superiority Over Traditional Drives
The Linear Motor outperforms ball screws, belt drives, and pneumatic cylinders completely:- vs Ball Screws: Higher precision, no wear/accumulated errors, ideal for CNC and precision measurement.
- vs Belt Drives: No slip/elastic deformation, faster response, flexible layout, and space-saving integration.
- vs Pneumatic/Cylinders: No compressed air demand, 80% lower energy use, zero contamination, and minimal maintenance.
3. Seamless Integration & Applications
Designed for easy automation integration, our Linear Motor supports EtherCAT, Profinet, and PLC connectivity, enabling multi-axis synchronization with ≤±0.05mm error. It is widely applied in CNC machining, semiconductor handling, lithium battery assembly, 3C electronics production, medical devices, and high-speed logistics. By reducing maintenance costs by 90% and boosting production efficiency, this Linear Motor is the optimal upgrade for modern manufacturing, driving smarter, more efficient industrial automation.

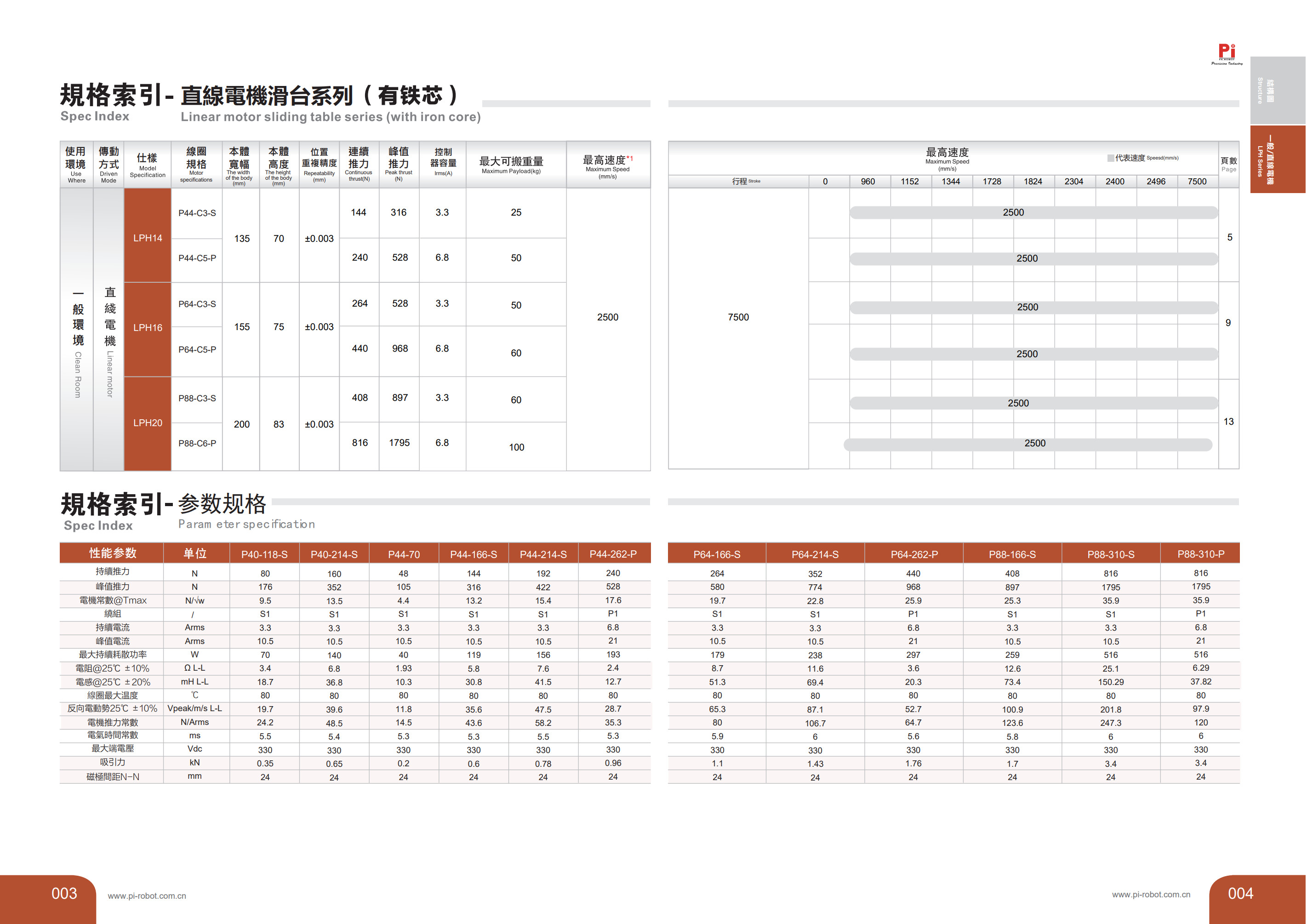

| Series Model |
LPH14/LPH16/LPH20 |
|---|---|
| Model |
P44-C3-S/P44-C5-P/P64-C3-S/P64-C5-P/P88-C3-S/P88-C6-P |
| Body Width (mm) |
144/ 240/264/ 440/408/816 |
| Body Height (mm) |
70-83 |
| Repeatability (mm) |
±0.003 |
| Continuous Thrust (N) |
240/316/ 440/816/ 897 |
| Peak Thrust (N) |
528/968/1795 |
| Continuous Current Irms (A) |
3.3-6.8 |
| Typical Speed (mm/s) |
2500 |
| Stroke (mm) |
0/960/1152/1344/1728/1824/2304/2400/2496 |
| Operating Environment |
General Environment |
