Ultra-Precision Ironless Linear Motor for Smooth Motion

Zero-cogging ironless linear motors with 1 nm precision for optical communication. Ideal for fiber active alignment, 800G/1.6T transceiver packaging, silicon photonics & CPO assembly

Categories: Linear Motor, Precision Linear Stages

Description
Technical Parameters

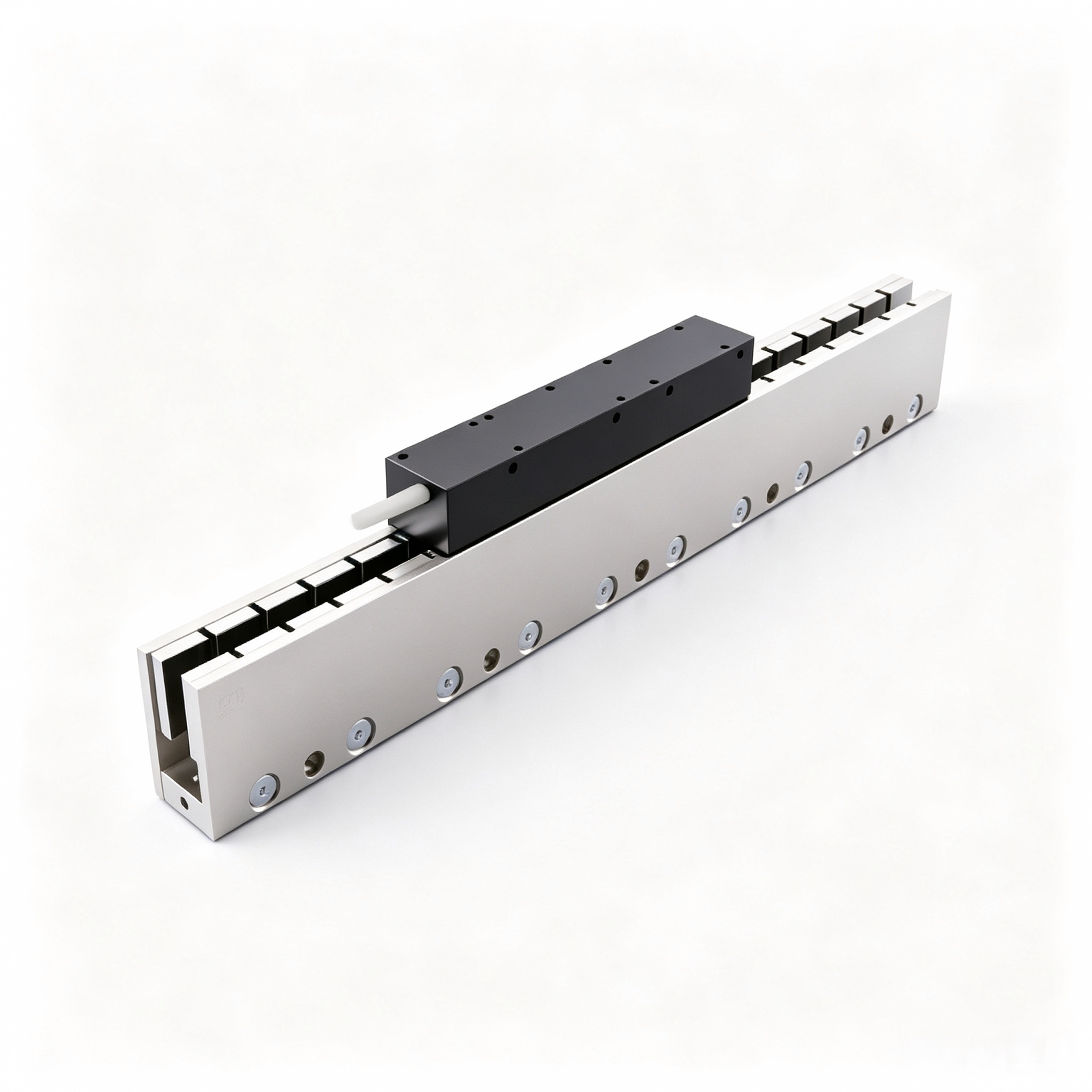

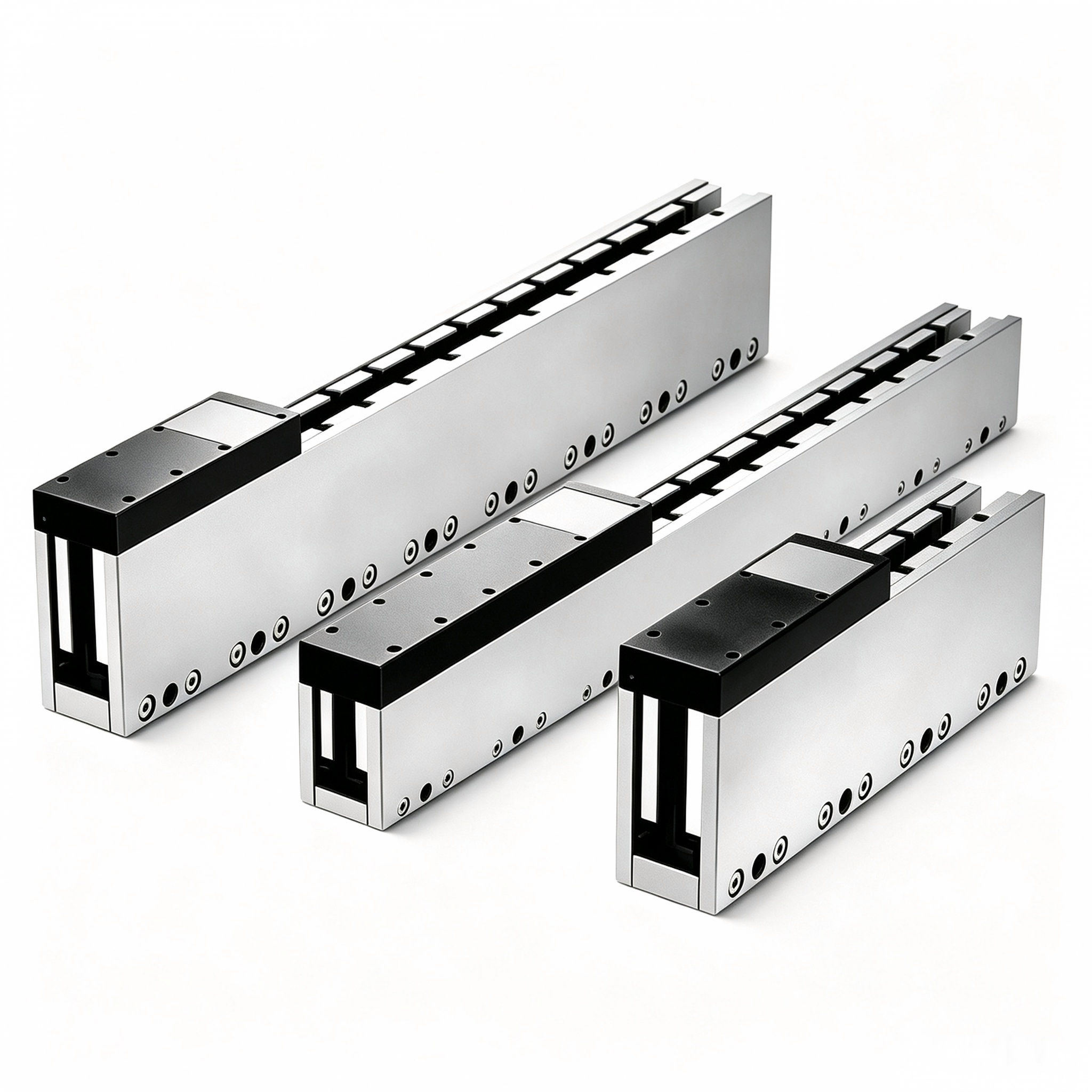

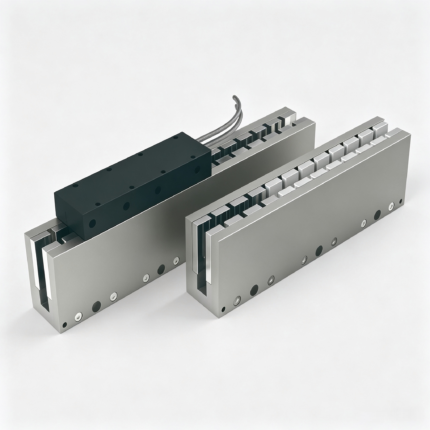

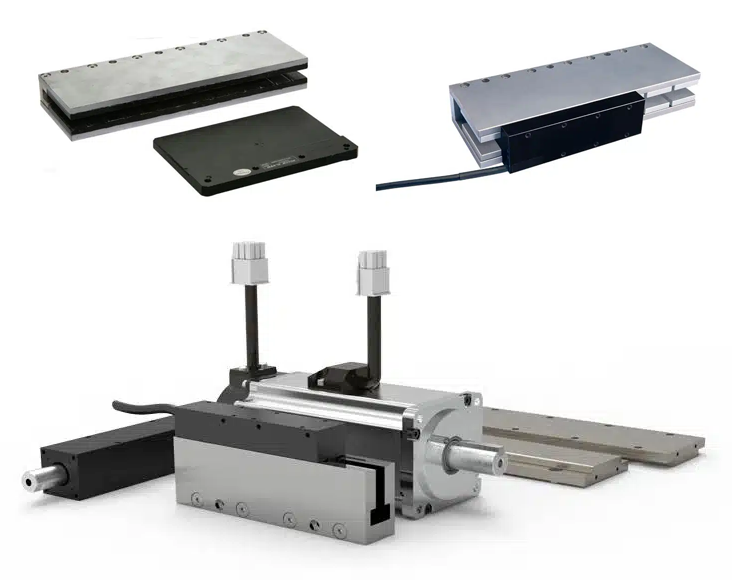

U-Type Coreless Linear Motor | Product Detail Description

An ironless linear motor — also known as a coreless linear motor, U-type linear motor, or U-slot linear motor — is a direct-drive motion solution that eliminates mechanical transmission entirely. Unlike conventional systems dependent on ball screws, belts, or gears, this motor converts electrical energy directly into linear thrust through the interaction between epoxy-encapsulated copper coils and dual permanent-magnet tracks.

The defining characteristic? Zero cogging force by design. With no iron laminations in the moving coil, there is no magnetic attraction between the forcer and the magnet way — resulting in ultra-smooth motion, minimal velocity ripple, and nanometer-grade positioning accuracy.

Whether you are building semiconductor wafer stages, precision laser cutting systems, or medical imaging platforms, this ironless design delivers the motion fidelity that iron-core alternatives simply cannot match.

How It Works & Performance

Direct-Drive Architecture

The motor consists of two primary components:

Component	Structure	Function
Stator (Magnet Track)	U-shaped dual rail with alternating permanent magnets	Generates a traveling-wave magnetic field along the stroke
Mover (Coil Assembly)	Copper windings encapsulated in epoxy resin, iron-free	Carries current to produce Lorentz force for linear thrust

When current flows through the coil, it interacts with the magnetic field from the dual magnet rails, generating pure linear force via the Lorentz principle. No rotary-to-linear conversion. No backlash. No wear.

Key Performance Metrics

Acceleration: Up to 20 g (depending on payload and feedback system)
Positioning Accuracy: Sub-micron to nanometer level (with high-resolution encoder)
Velocity Ripple: Near-zero due to absence of cogging
Magnetic Attraction: Zero between mover and magnet track
Thermal Profile: Lower heat generation — no iron-core hysteresis or eddy-current losses

Why this matters for engineers: The elimination of cogging force means your servo loop doesn’t have to fight parasitic disturbances. Settling time drops. Scan uniformity improves. And your control algorithm can focus on trajectory, not compensation.

Core Advantages

1. Zero Cogging = Ultra-Smooth Motion

Without iron teeth in the forcer, there are no preferred magnetic positions. The result is cogging-free motion with exceptional velocity stability — critical for scanning, metrology, and surface inspection applications where even nanometer-level vibration translates to defects.

2. High Acceleration & Dynamic Response

The moving mass is dramatically reduced because the coil contains no heavy iron laminations. This enables accelerations up to 50 g and millisecond-level settling — ideal for high-throughput pick-and-place, die bonding, and fast laser processing.

3. Zero Magnetic Attraction Force

In U-channel ironless designs, the dual magnet rails generate opposing magnetic fields that cancel attractive forces on the mover. This means:

No heavy preload on linear bearings
Easier mechanical assembly and maintenance
Safer handling during installation

4. No Iron Losses = Lower Thermal Impact

Without iron-core hysteresis and eddy-current losses, operating temperature rise is minimized. Your precision stage stays thermally stable, protecting nearby optics, wafers, or biological samples from heat-induced drift.

5. Cleanroom & Vacuum Compatibility

The non-contact, frictionless design generates zero particulate contamination — meeting ISO Class 1 cleanroom requirements and vacuum-compatible configurations for semiconductor front-end processes.

Ironless vs. Iron-Core: Which One for Your Application?

Specification	Ironless Linear Motor (U-Type)	Iron-Core Linear Motor
Motion Smoothness	⭐⭐⭐⭐⭐ Zero cogging	⭐⭐⭐☆☆ Cogging present; requires compensation
Peak / Continuous Force	Moderate (lighter loads)	High (heavy payloads)
Positioning Accuracy	Nanometer to sub-micron	Micron level
Moving Mass	Ultra-light (high acceleration)	Heavier (lower acceleration)
Magnetic Attraction	Zero	Strong (requires robust bearings)
Thermal Efficiency	Lower (coils-in-air design)	Better (iron acts as heat sink)
Cost per Newton	Higher	Lower

Applications

Photonics & Optical Communications

Fiber alignment, lens positioning, and optical inspection rely on 1 µm/s ultra-smooth low-speed control combined with nanometer-level stability

Semiconductor & Photovoltaics

Wafer handling & transport — smooth, vibration-free motion protects delicate wafers
Lithography stages — nanometer positioning ensures critical dimension accuracy
Metrology & inspection — zero cogging eliminates scan-line artifacts in defect detection

The global wafer handling robots market is projected to reach USD 3.4 billion by 2036, growing at 8.10% CAGR — driven by demand for higher precision and cleaner automation.

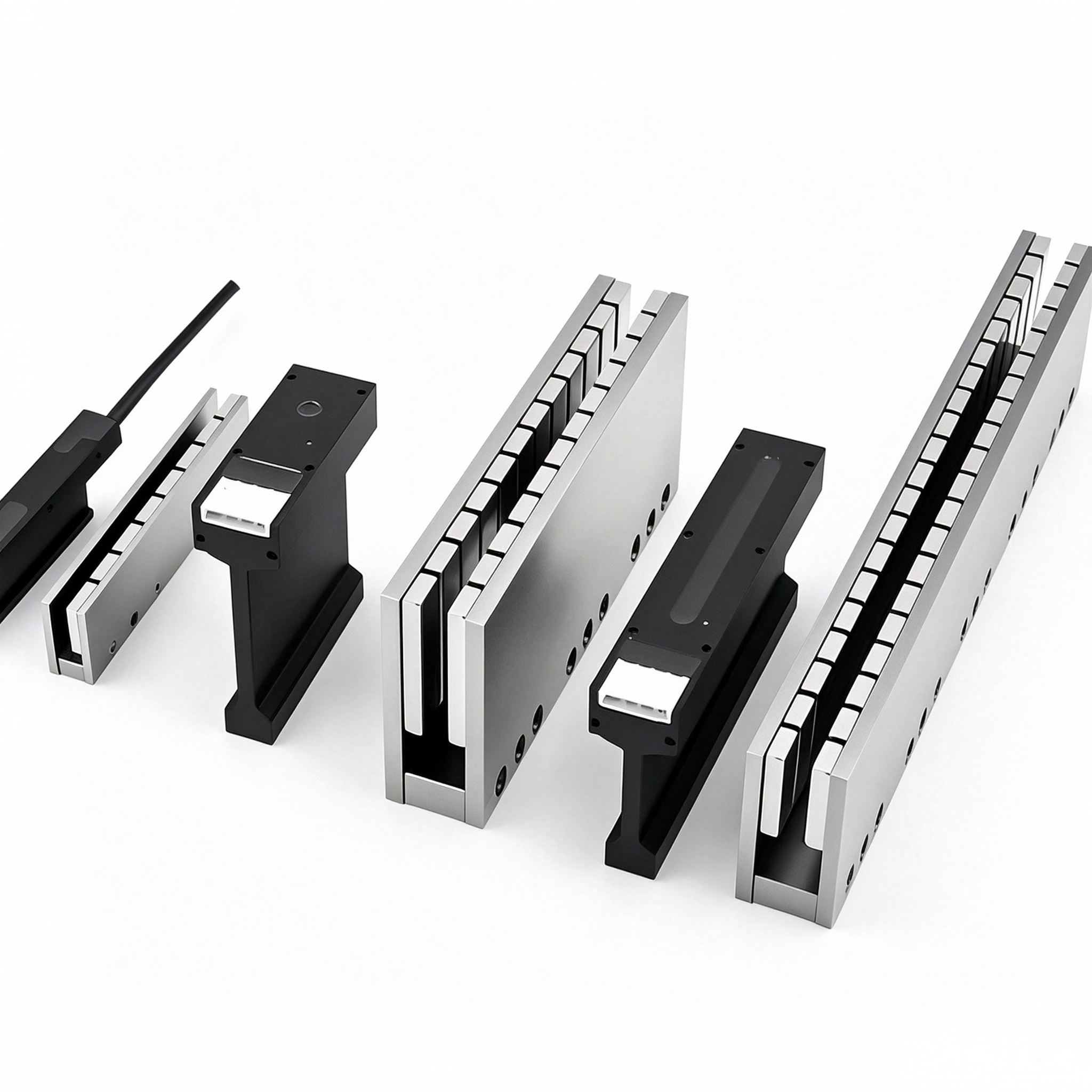

Robotics & Automation

High-speed pick-and-place, collaborative robot linear axes, and gantry systems benefit from 20G acceleration and zero-backlash responsiveness for next-generation smart factories

Precision Laser Processing

Mobile glass & sapphire cutting — constant velocity ensures clean kerf edges
Micro-drilling & scribing — high acceleration enables rapid feature-to-feature positioning
Optical component fabrication — sub-micron path accuracy for freeform surfaces

Medical & Life Sciences

Scanning Electron Microscopes (SEM) — vibration-isolated precision scanning
DNA sequencing platforms — smooth motion for high-throughput fluid handling
Surgical robotics — responsive, precise actuator for minimally invasive tools

Advanced Electronics Assembly

High-precision dispensing & conformal coating — consistent bead profile via constant velocity
AOI (Automated Optical Inspection) — rapid, jitter-free camera positioning
Die bonding & flip-chip placement — nanometer alignment for advanced packaging

Technical Parameters

U‑type-core‑less-linear-motor-technical-datasheet

Frequently Asked Questions (FAQ)

Q1: What is cogging force, and why does it matter? Cogging is a parasitic force ripple caused by magnetic attraction between iron teeth and permanent magnets in iron-core motors. It creates velocity ripple and positioning errors — especially problematic at low speeds. Ironless motors eliminate cogging entirely by removing the iron core.

Q2: Is an ironless linear motor the same as a coreless linear motor? Yes. The terms are interchangeable. “Ironless” is the dominant term in North American and European markets, while “coreless” is also widely used. Both describe a motor with copper windings encapsulated in non-magnetic material (typically epoxy), with no iron laminations in the mover.

Q3: Can ironless linear motors handle heavy loads? Ironless motors excel in light-to-medium load, high-precision applications. For heavy-load, high-force requirements, iron-core motors may be more cost-effective. However, multi-coil ironless configurations can achieve substantial continuous force while retaining zero-cogging benefits.

Q4: Why choose a U-type (U-slot) design over a flat plate design? The U-type design uses dual opposing magnet rails that cancel magnetic attraction forces on the mover. This makes assembly safer, reduces bearing load, and improves mechanical stability compared to single-sided flat-plate designs.

Q5: Are these motors suitable for cleanroom environments? Absolutely. The frictionless, non-contact design generates no particulates. Combined with appropriate cable management and shielding, ironless linear motors are widely deployed in ISO Class 1–3 cleanrooms and vacuum chambers for semiconductor manufacturing.

Q6: Why is coreless linear motor smoother than iron-core type?

The coreless design removes the ferromagnetic attraction between iron core and magnets, completely eliminating cogging effect and motion jitter, realizing zero-fluctuation motion from low speed to high speed.

Q7: What is the maximum acceleration of U slot coreless linear motor?

It supports 3-50g ultra-high acceleration, suitable for frequent start-stop and fast positioning automated production lines.

Q8: Is the coreless linear motor suitable for high-temperature working environment?

With no iron core loss and low temperature rise, the motor has low thermal impact on the working environment and is more suitable for constant-temperature precision processing scenarios than traditional motors.

Q9. What type of feedback system is required?

Our U-type linear motors operate in closed-loop mode with a linear encoder (optical, magnetic, or inductive) mounted parallel to the motion axis. The encoder provides real-time position feedback to the servo drive, enabling:

Sub-micron positioning accuracy
Real-time error correction
Smooth servo tuning across the entire speed range

Q10. Can a U-type linear motor replace my existing ball screw or belt system?

Yes. U-type linear motors are increasingly used as drop-in performance upgrades for legacy mechanical drive systems. Benefits of retrofitting include:

5–10× faster cycle times thanks to 20G acceleration
Elimination of backlash for true bidirectional precision
Reduced noise and vibration for cleaner operation
Near-zero maintenance for higher machine availability

Our application engineers can assist with mechanical integration, servo drive configuration, and control system migration.

Q11. Is the U-channel linear motor suitable for cleanroom environments?

Absolutely. The non-contact, brushless design generates no particulate contamination from friction or wear. With appropriate sealing and materials, ironless U-channel motors are rated for Class 1 to Class 100 cleanroom operation, making them ideal for semiconductor front-end and pharmaceutical manufacturing.

Q12. Why choose your U-type linear motor over competitors?

Our U-channel linear motors combine German-engineered magnetic circuit design with cost-optimized manufacturing to deliver:

✅ Higher force density than standard ironless motors
✅ Lower cogging than conventional ironcore designs
✅ Modular track architecture for unlimited stroke
✅ Water-cooling options for 24/7 heavy-duty cycles
✅ Global technical support and application engineering

Can a U-type linear motor replace my existing ball screw or belt system?

Yes. U-channel linear motors are increasingly used as drop-in performance upgrades for legacy mechanical drive systems. Benefits of retrofitting include:

5–10× faster cycle times thanks to 20G acceleration
Elimination of backlash for true bidirectional precision
Reduced noise and vibration for cleaner operation
Near-zero maintenance for higher machine availability

Our application engineers can assist with mechanical integration, servo drive configuration, and control system migration.

Selection Guide: Is Ironless Right for You?

Choose ironless linear motor if your application requires:

✅ Scanning or constant-velocity motion with zero velocity ripple
✅ Nanometer or sub-micron positioning accuracy
✅ High acceleration with light payloads
✅ Operation in cleanroom or vacuum environments
✅ Minimal thermal drift near sensitive components

Consider iron-core alternatives if:

❖ Maximum continuous force is the top priority
❖ Cost per newton is the primary constraint
❖ The application involves point-to-point moves where smoothness is secondary

Ready to Upgrade Your Motion System?

Contact our application engineers for a free motion system review and custom ironless linear motor configuration tailored to your precision, speed, and environmental requirements.

Motor Type	Ironless / Coreless / Air-core Linear Motor
Configuration	U-Type (Dual Magnet Rail)
Coil Encapsulation	Epoxy resin (non-magnetic)
Max Acceleration	Up to 50 g
Positioning Accuracy	Sub-micron to nanometer (encoder-dependent)
Cogging Force	Zero
Magnetic Attraction	Zero (balanced dual-rail design)
Cooling Options	Natural convection / Forced air / Water cooling
Environmental Rating	Environmental Rating
