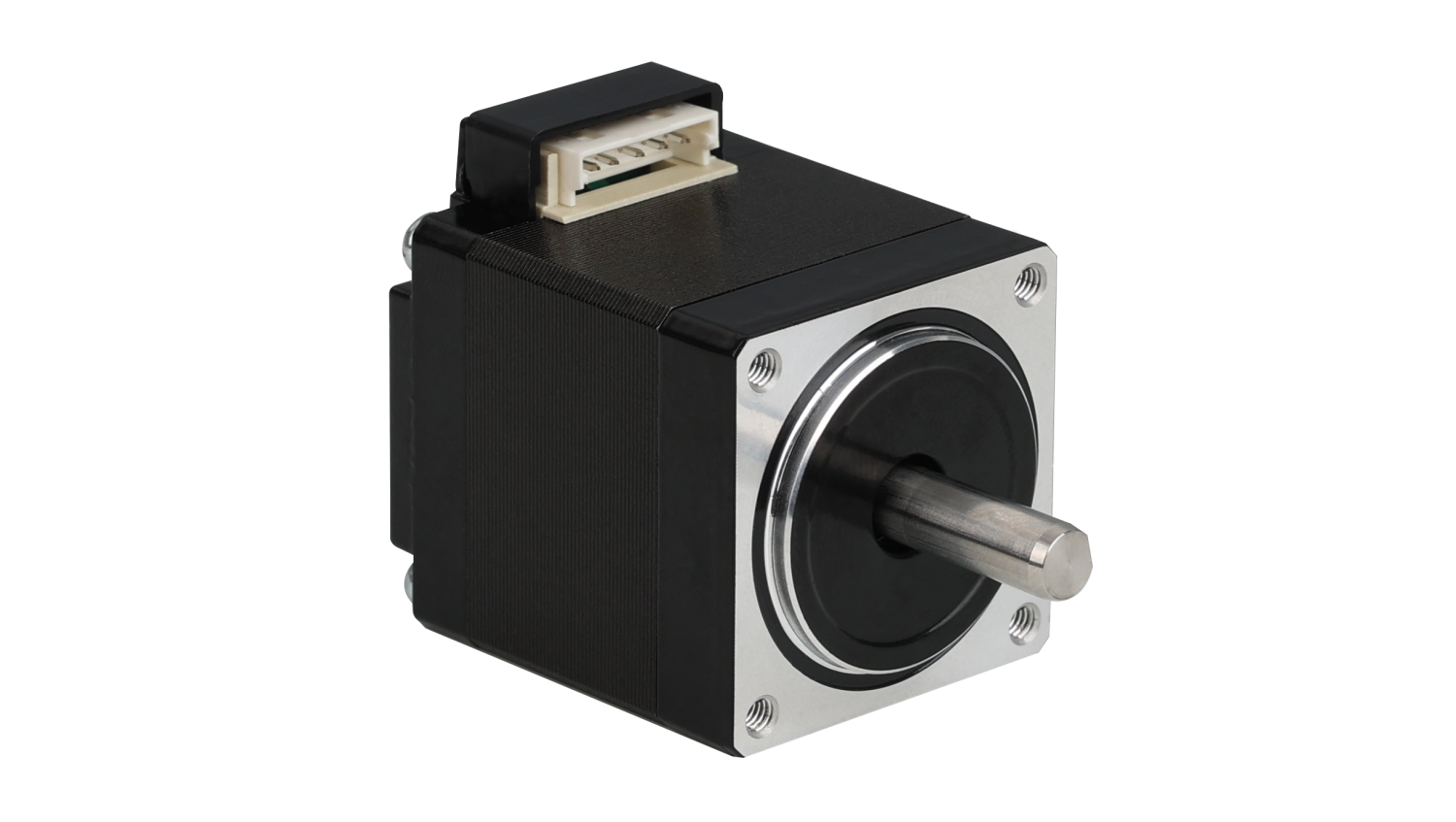

Leadshine 5CM 5-Phase Stepper Motors Low Vibration for Optical Communication Modules
Premium 5-phase stepper motor with 0.72° step angle, low vibration & high precision for industrial precision positioning

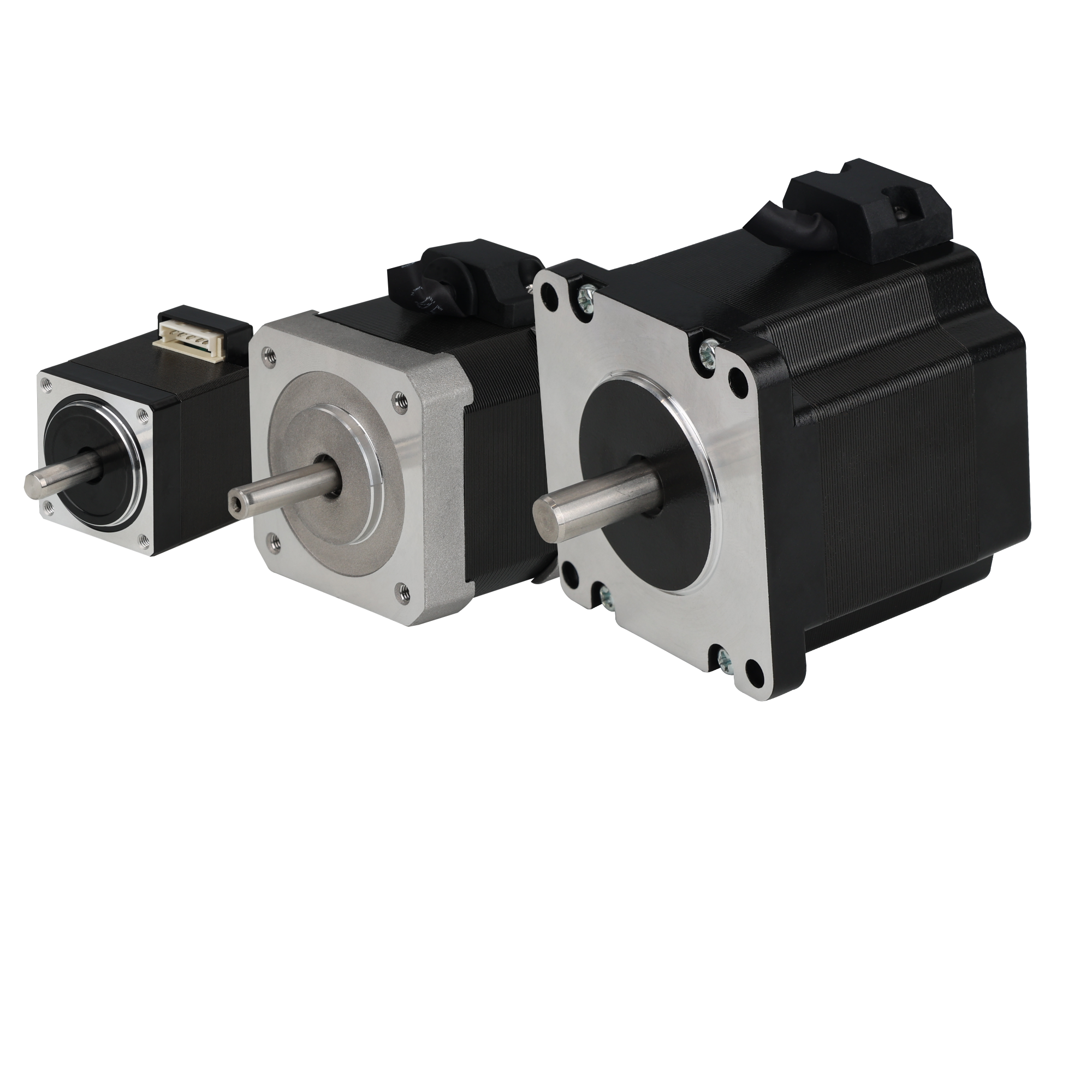

Leadshine 285CM/5CM Series 5-Phase Stepper Motors: Precision Redefined for High-End Automation
The Leadshine 285CM/5CM Series represents the pinnacle of precision motion control—a newly launched premium 5-phase stepper motor line engineered with Japanese design expertise, advanced manufacturing processes, and imported core materials. Designed as a direct replacement for high-end imported motors, these compact yet powerful motors deliver unmatched performance for the most demanding automation applications, outperforming conventional 2-phase 1.8° stepper motors in every critical metric.
⚙️ Technical Specifications & Key Advantages
| Feature | 285CM Series | 5CM Series (High-Resolution 5CMS) |
|---|---|---|
| Step Angle | 0.72° (500 steps/rev) | 0.72° standard / 0.36° high-res (1000 steps/rev) |
| Frame Size | NEMA 28 (28mm) | Multiple sizes available |
| Holding Torque | 0.05–0.12 N·m (two standard models) | Various torque options |
| Core Construction | Japanese design, imported materials | Japanese design, imported materials |
| Performance Class | Premium high-precision | Premium high-precision |
✅ Superior Performance vs. 2-Phase Motors
- Higher Precision Control: 0.72° basic step angle (0.36° high-res) enables finer positioning resolution compared to 1.8° 2-phase motors, eliminating the need for excessive microstepping
- Faster Response Times: Optimized magnetic circuit design delivers quicker acceleration/deceleration and improved dynamic performance
- Lower Vibration & Noise: Advanced 5-phase technology provides ultra-smooth motion with minimal resonance, critical for sensitive instrumentation
- Enhanced Stability: Consistent torque output across speed ranges ensures reliable long-term operation with minimal drift
Application
Semiconductor & Electronics Manufacturing
Optical Fiber Communication, Optical Module
3C Equipment Debugging
Precision Machining

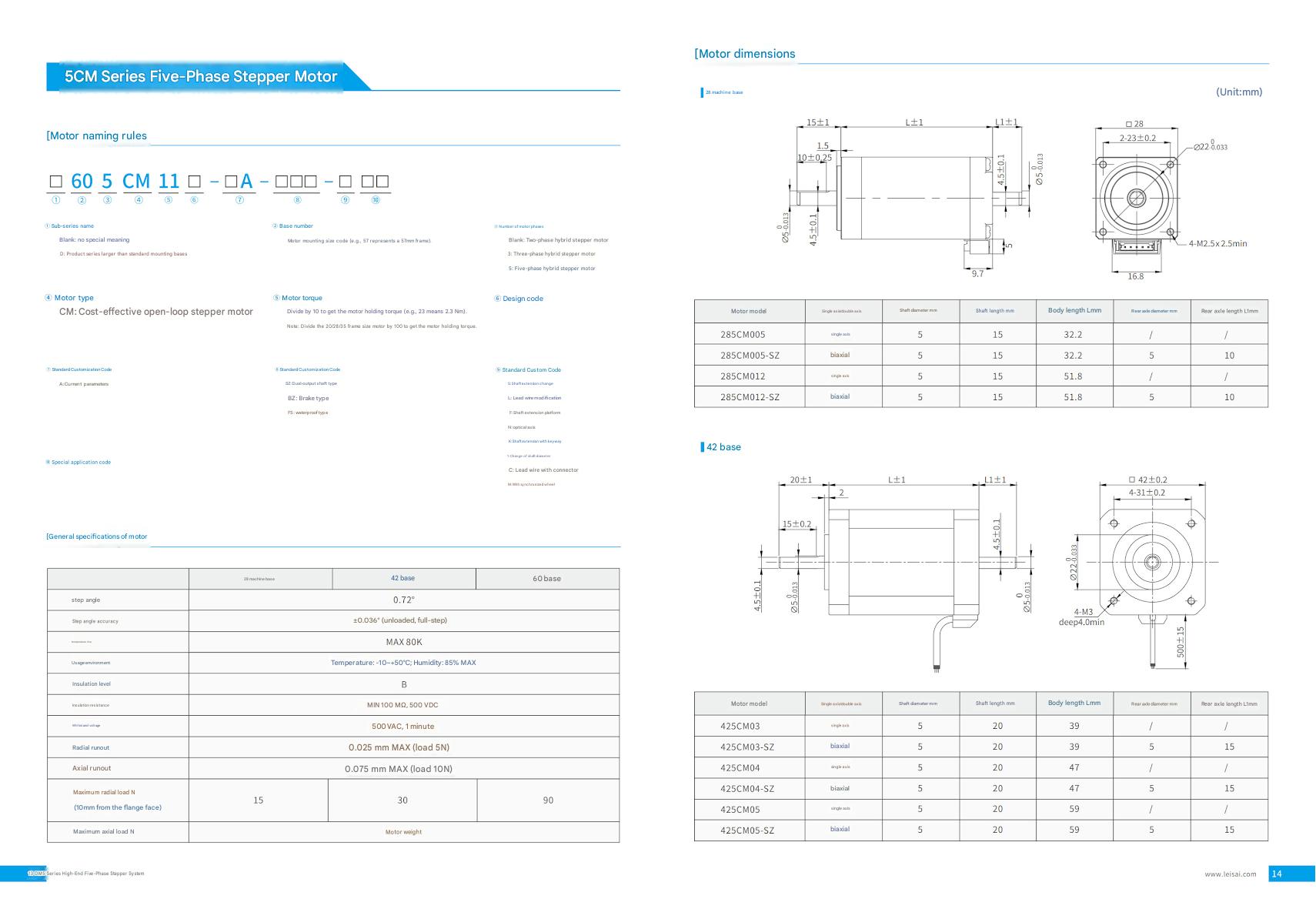

| Description |
5-Phase Stepper Motor |
|---|---|
| Model |
285CM Series |
| Torque(N.m) |
0.05-0.12 |
| Rated Voltage(A） |
1.2 |
| Resistance（Ω） |
0.56-0.88 |
| Rotor Inertia（g.cm²） |
9-12 |
| Body Length（mm） |
32 |
| Weight(kg) |
0.1-0.2 |
| IP Rating |
IP40 |
