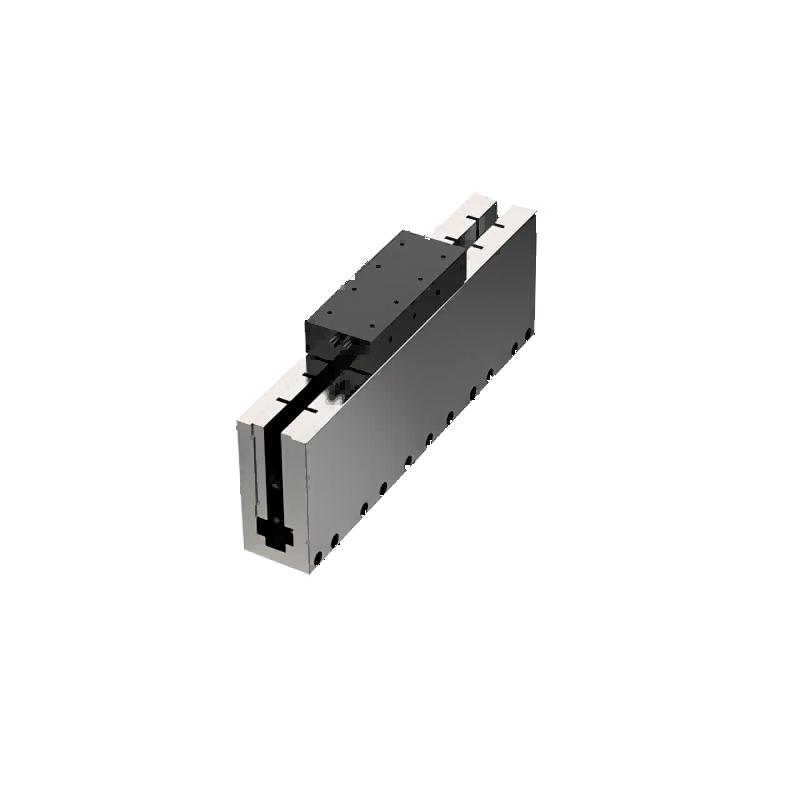

U‑type Ironless Direct Drive Linear Motor

dust‑proof cored linear motor translation stage

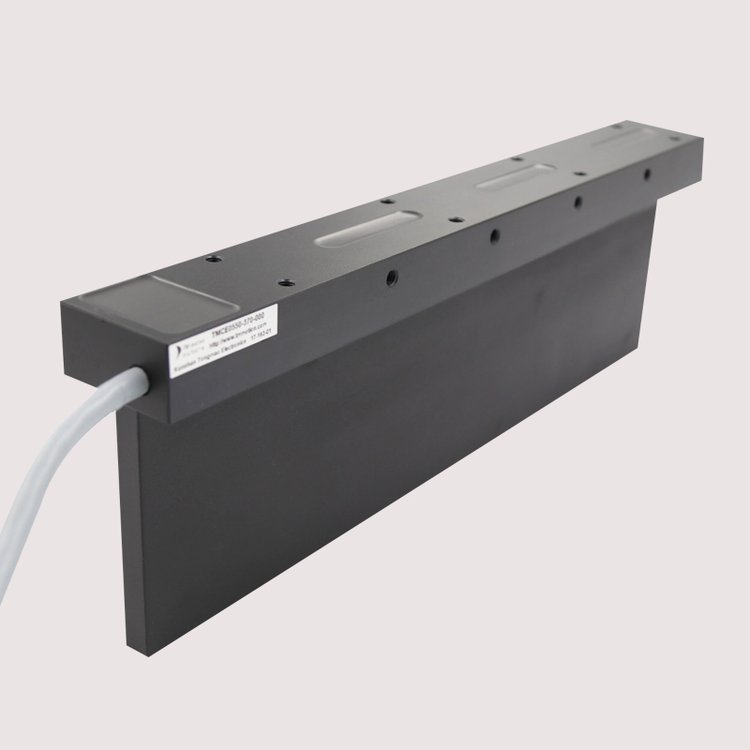

Ironless Linear Motor for Semiconductor Automation

High Precision Direct Drive U‑Type Linear Motor

Direct drive U‑slot ironless linear motor with 20G high acceleration, zero cogging, sub‑micron accuracy, long modular stroke for semiconductor and photonics automation

Category: Linear Motor

Description
Technical Parameters

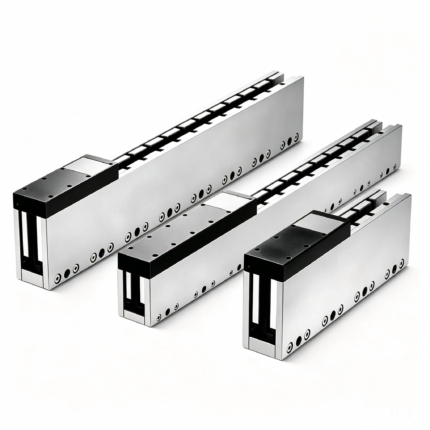

U-Type Linear Motor | High-Precision Direct Drive Linear Motion System

Direct Drive · Zero Backlash · 20G Acceleration · Sub-Micron Precision

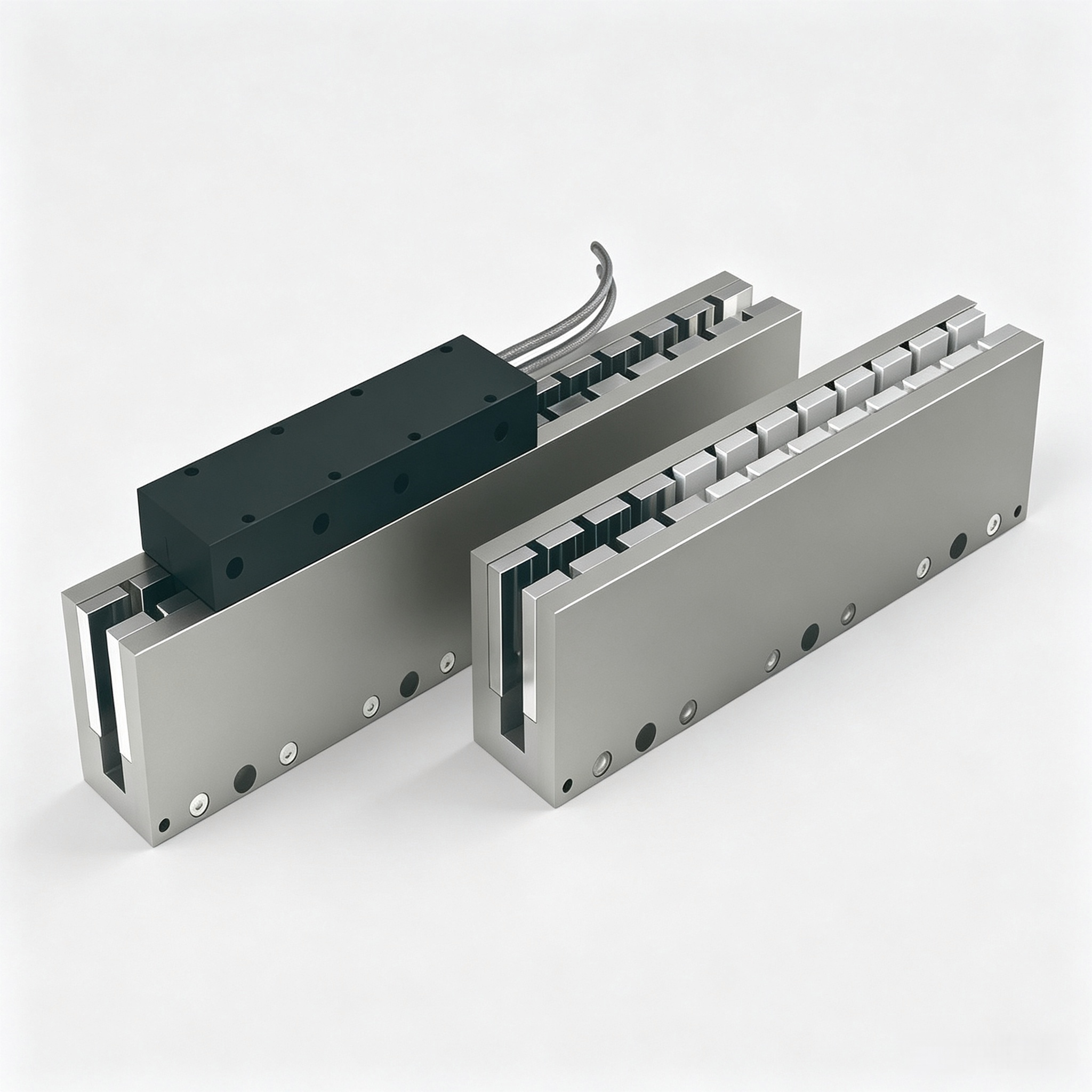

The U-Type Linear Motor represents the pinnacle of direct-drive motion technology, converting electrical energy directly into linear mechanical motion without any intermediate conversion mechanisms such as ball screws, belts, or gearboxes. Engineered for Industry 4.0 and smart manufacturing, our U-channel linear motor features a non-steel mover (coil winding) that travels between two parallel rows of permanent magnet tracks (stator), supported by a precision rail system.

Working Principle & Performance | How U-Channel Linear Motors Work

Direct Drive Technology: Power Without Compromise

Unlike conventional rotary-to-linear systems, the U-type linear motor employs three-phase brushless commutation coils to generate electromagnetic thrust directly. The U-shaped magnetic guideway houses permanent magnets arranged face-to-face, creating a concentrated magnetic flux path that minimizes flux leakage and reduces magnetic damage risk.

Core Performance

Performance Parameter	Specification
Max Acceleration	Up to 20G
Speed Range	1 µm/s to 10–30 m/s
Positioning Accuracy	Sub-micron (dependent on linear encoder)
Drive Type	Direct drive, zero backlash
Cooling Option	Water-cooled coil available
Feedback System	Closed-loop linear encoder control

Core Advantages | Why Choose Our U-Type Linear Motor

1. Extreme Dynamic Response

With direct electromagnetic force transmission, achieve acceleration up to 20G—far beyond the capabilities of ball screw or belt-driven systems. Perfect for high-throughput automation and rapid positioning cycles.

2. Sub-Micron Precision & Zero Cogging

Non-contact operation eliminates mechanical wear, backlash, and cogging torque. Paired with a high-resolution linear encoder, the system delivers sub-micron positioning accuracy with exceptional motion smoothness.

3. Maintenance-Free & Long Service Life

No physical contact between mover and stator means no friction, no wear, no lubrication, and no mechanical failure modes like jamming or backlash degradation. Dramatically reduce downtime and total cost of ownership (TCO).

4. Advanced Thermal Management

Optional water-cooled coil windings efficiently dissipate heat during continuous high-thrust operation, ensuring stable performance in demanding 24/7 industrial environments.

5. Unlimited Stroke Capability

The modular stator track design allows theoretically unlimited travel extension by connecting multiple magnetic rail segments. Scale your system from millimeters to meters without redesign.

6.Ultra-Quiet & Smooth Operation

The absence of mechanical transmission components results in virtually silent operation with no vibration-induced noise—critical for cleanroom and precision inspection applications.

7. Two Configurations for Every Need

Ironcore U-Channel Motor: Maximum force density per unit volume for high-load industrial applications.
Ironless U-Channel Motor: Minimal magnetic losses and superior motion smoothness for the most demanding precision tasks.

Applications

Photonics & Optical Communications

Fiber alignment, lens positioning, and optical inspection rely on 1 µm/s ultra-smooth low-speed control combined with nanometer-level stability

Semiconductor & Electronics Manufacturing

Wafer handling, die bonding, PCB inspection, and lithography stages demand the sub-micron accuracy and vibration-free motion only a U-channel linear motor can provide

Robotics & Automation

High-speed pick-and-place, collaborative robot linear axes, and gantry systems benefit from 20G acceleration and zero-backlash responsiveness for next-generation smart factories

Automotive & EV Production

Precision battery assembly, motor winding, and component testing require high-speed, high-force linear motion with absolute reliability

Precision Laser Processing

Mobile glass & sapphire cutting — constant velocity ensures clean kerf edges
Micro-drilling & scribing — high acceleration enables rapid feature-to-feature positioning
Optical component fabrication — sub-micron path accuracy for freeform surfaces

Precision Machining & Medical Devices

CNC grinding, laser micromachining, and diagnostic equipment positioning demand maintenance-free, high-precision linear actuation in compact form factors.

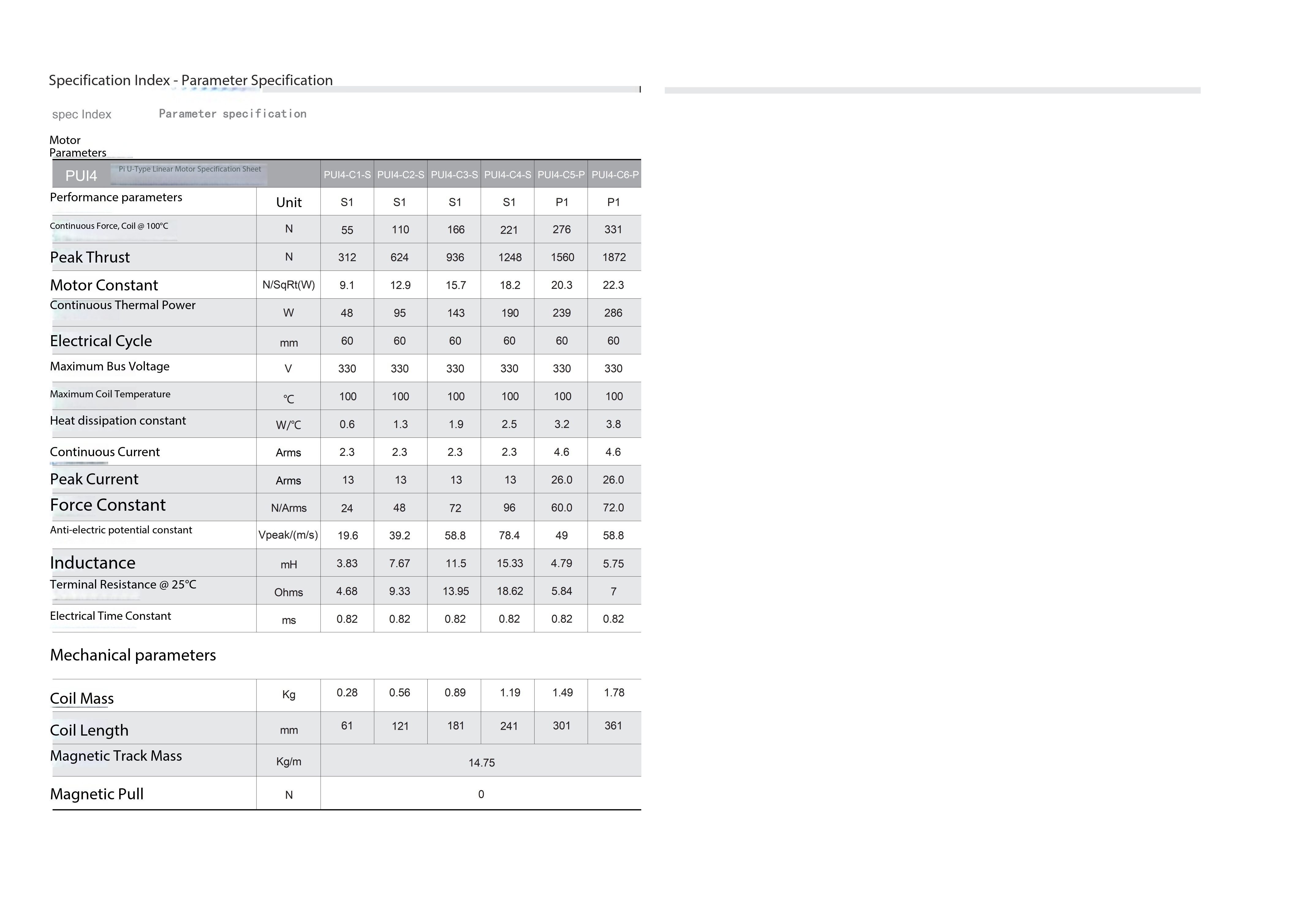

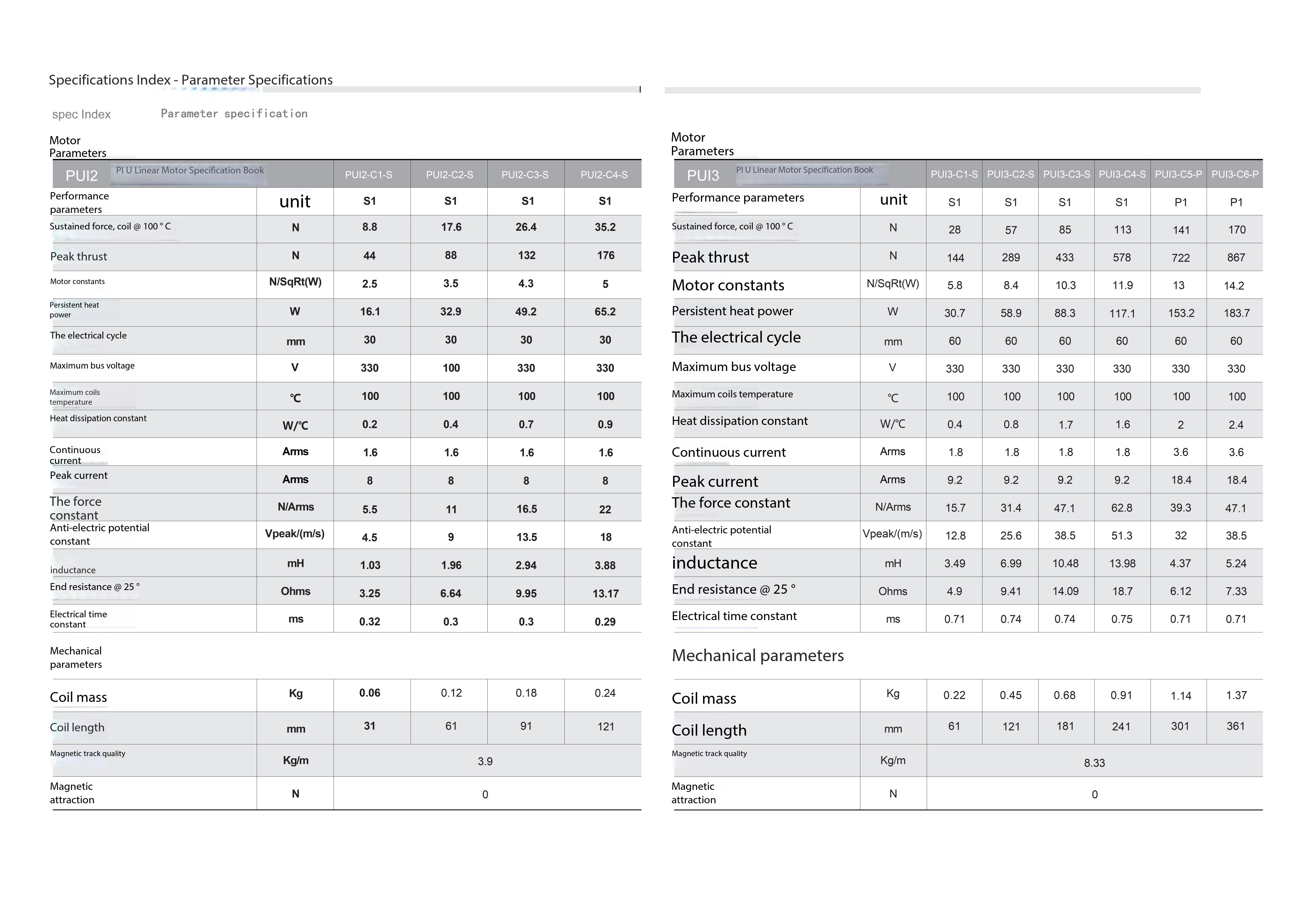

Technical Parameters

Frequently Asked Questions (FAQ)

Q1. What is a U-type linear motor and how does it work?

A U-channel linear motor is a direct-drive motion device that converts electrical energy directly into linear mechanical motion—without gears, ball screws, belts, or any intermediate mechanical transmission.

Q2. What are the main advantages of a U-type linear motor over ball screw or belt drives?

Zero backlash – No mechanical play means nanometer-level bidirectional repeatability.
No wear or maintenance – Non-contact operation eliminates friction, lubrication, and mechanical degradation.
Extreme acceleration – Up to 20G, impossible with ball screw or belt systems.
Ultra-wide speed range – From 1 µm/s ultra-smooth creep to 10–30 m/s high-speed travel.
No cogging – Smooth motion without detent torque, critical for semiconductor and optical applications.

Q3. What is the difference between ironcore and ironless U-type linear motors?

Feature	Ironcore U-Type Motor	Ironless U-Type Motor
Force Density	Higher thrust per unit volume	Moderate thrust
Cogging	Minimal (optimized design)	Zero cogging
Magnetic Losses	Low	Extremely low
Motion Smoothness	Excellent	Ultra-smooth
Best For	High-load industrial automation, CNC	Semiconductor, inspection, optics

Q4. What positioning accuracy can a U-type linear motor achieve?

Positioning accuracy depends primarily on the linear encoder used in the closed-loop feedback system. With high-resolution optical or magnetic encoders, our U-channel linear motors routinely achieve sub-micron positioning accuracy and nanometer-level repeatability

Q5. Is there a limit to the travel length (stroke) of a U-type linear motor?

No. One of the defining advantages of the U-channel design is its modular stator track. The permanent magnet rails can be spliced and connected end-to-end to create theoretically unlimited stroke lengths—from a few millimeters to tens of meters

Q6. What is the maximum speed and acceleration?

Maximum Acceleration: Up to 20G (196 m/s²)
Maximum Speed: 10 m/s to 30 m/s depending on load and track length
Minimum Stable Speed: 1 µm/s with ultra-smooth motion

Q7. Does the U-channel linear motor require maintenance?

No mechanical wear
No lubrication required
No risk of jamming, seizure, or backlash degradation
No belts to tension or replace

Q8. How is heat managed during continuous operation?

For high-duty-cycle or high-thrust applications, we offer an optional water-cooled coil winding configuration. The cooling channels integrated into the mover efficiently dissipate heat generated by the coils, allowing the motor to sustain peak performance during 24/7 continuous industrial operation without thermal derating.

Q9. What type of feedback system is required?

Sub-micron positioning accuracy
Real-time error correction
Smooth servo tuning across the entire speed range

Q10. Can a U-channel linear motor replace my existing ball screw or belt system?

Yes. U-channel linear motors are increasingly used as drop-in performance upgrades for legacy mechanical drive systems

Ready to Upgrade Your Linear Motion?

Contact our application engineers to configure the ideal U-type linear motor for your precision automation project. From semiconductor cleanrooms to high-speed robotic cells, we deliver the direct-drive performance that defines Industry 4.0 leadership

Motor Type	U-Type Linear Motors
Coil Encapsulation	Epoxy resin (non-magnetic)
Max Acceleration	Up to 50 g
Positioning Accuracy	Sub-micron to nanometer (encoder-dependent)
Cogging Force	Zero
Magnetic Attraction	Zero (balanced dual-rail design)
Cooling Options	Natural convection / Forced air / Water cooling
Environmental Rating	Environmental Rating
