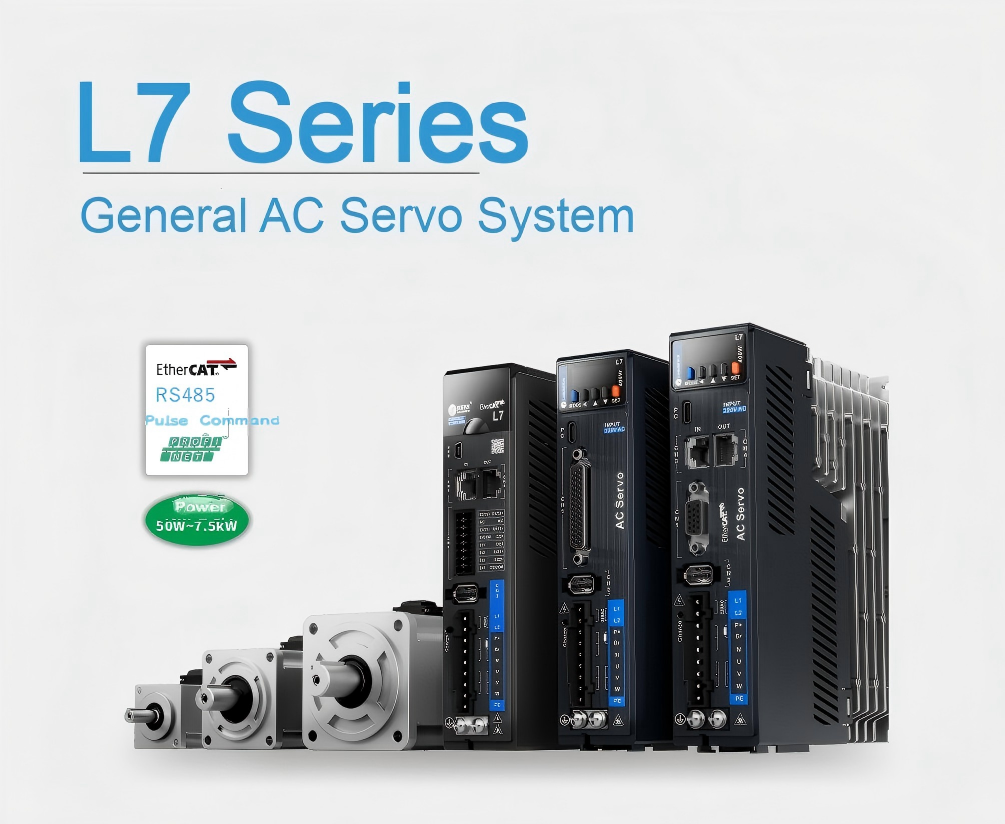

Leadshine L7 Series Universal AC Servo System | EtherCAT Modbus Profinet Servo Drive with High Bandwidth, STO Safety & High-Precision Encoder for Robotics, Laser & Machine Tool Automation

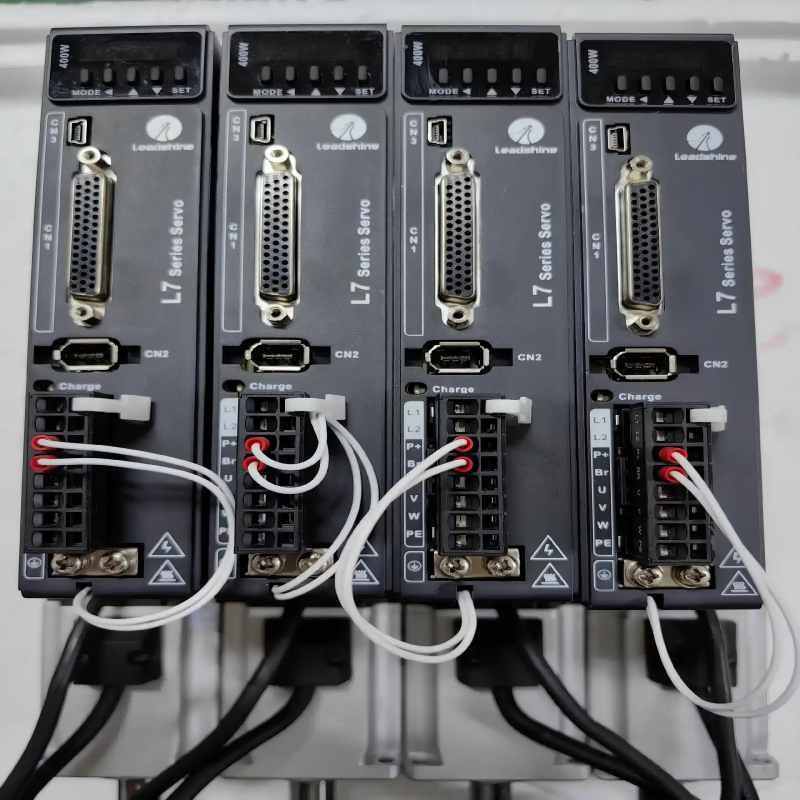

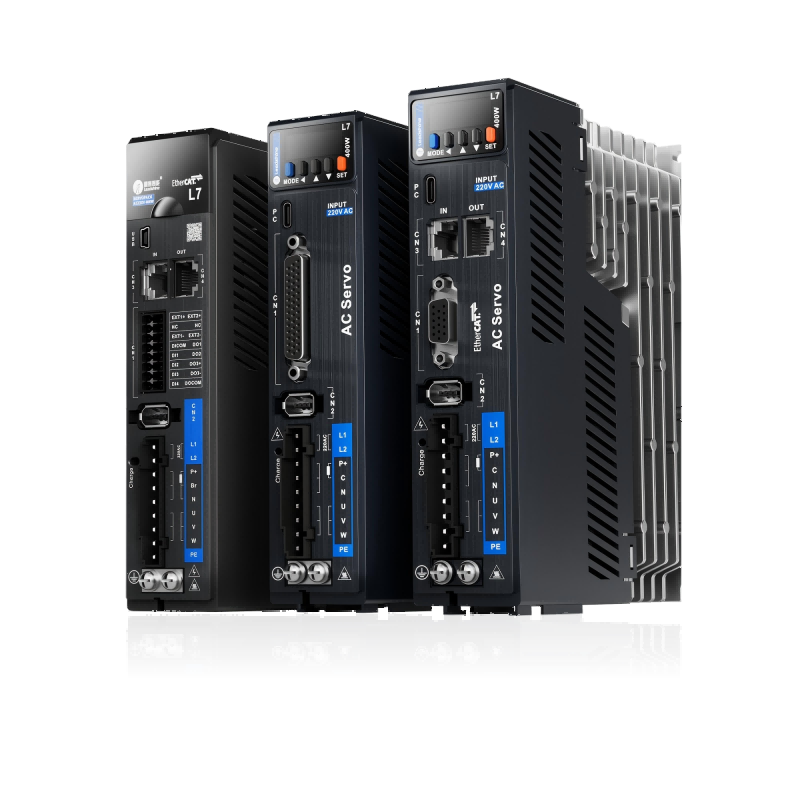

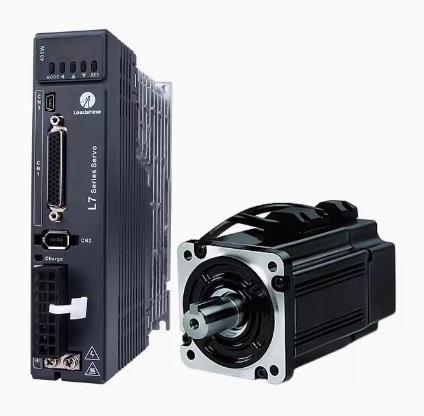

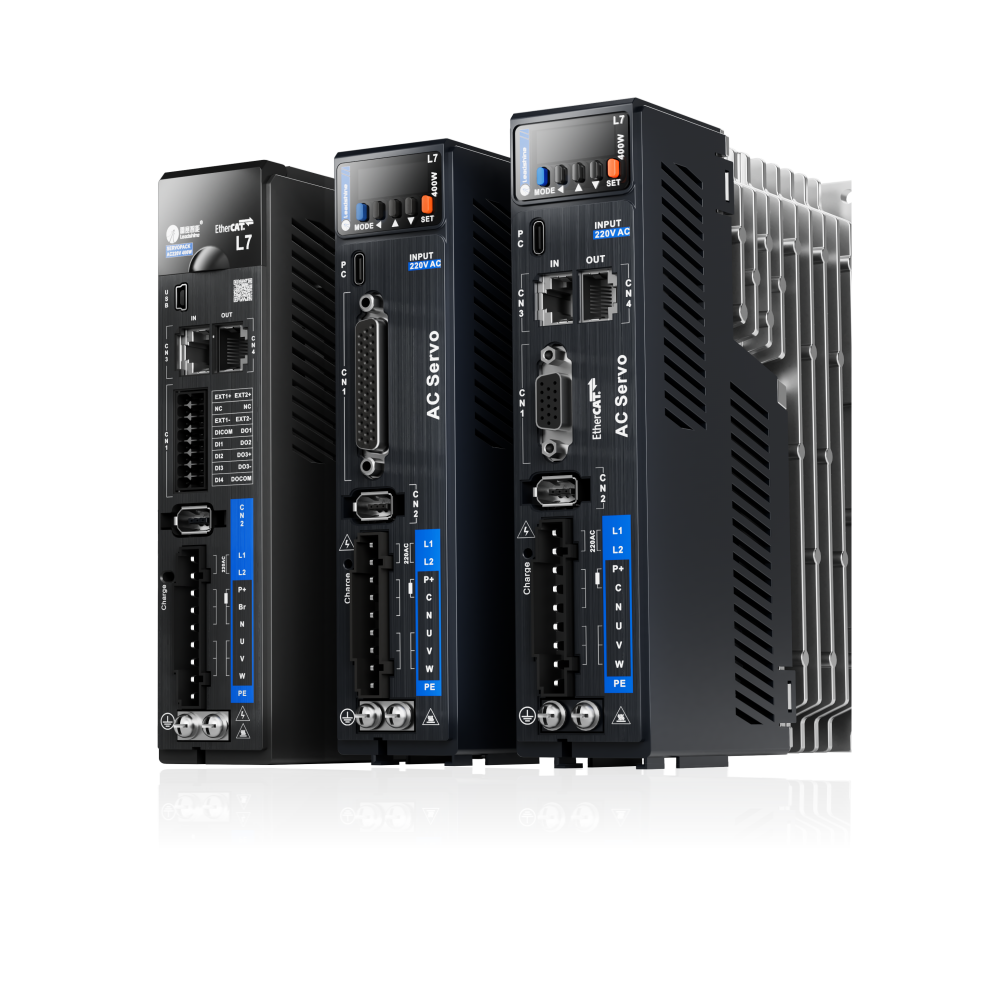

The L7 Series AC Servo Drive is a universal AC servo drive independently developed by Leadrive Intelligent Control Co., Ltd.. It supports communication protocols such as EtherCAT, Modbus, and Profinet. The product is known for its superior performance, high cost-efficiency, safety and reliability, and easy commissioning.

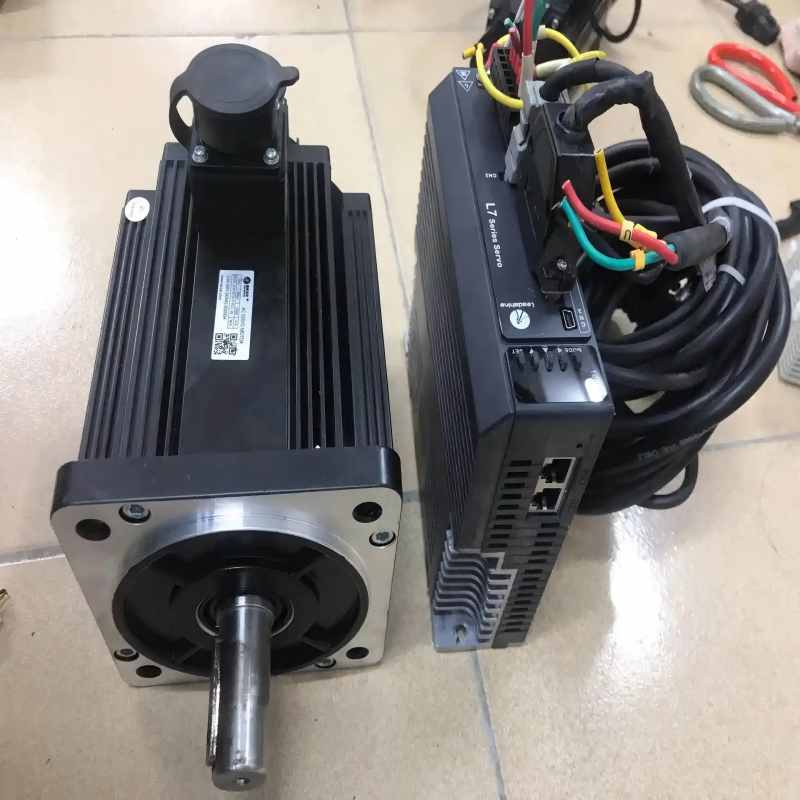

The L7 Series drives feature rigid setting, inertia identification, and vibration suppression functions, making the servo drive commissioning process simple and user-friendly. When paired with the ACM2 high-response servo motor with a 24-bit multi-turn optical encoder, the system operates reliably and smoothly, with more precise control.

Core Technical Specifications

• Multi-protocol Communication: Native support for EtherCAT, Modbus RTU, and PROFINET industrial communication protocols, ensuring seamless integration with diverse automation systems
• High-Speed Performance: 3.2kHz speed loop bandwidth and 125μs bus synchronization cycle (L7N EtherCAT model) for ultra-responsive motion control
• Precision Feedback: Paired with ACM2 high-response servo motors equipped with 24-bit multi-turn absolute encoders (16,777,216 pulses/turn), enabling micron-level positioning accuracy

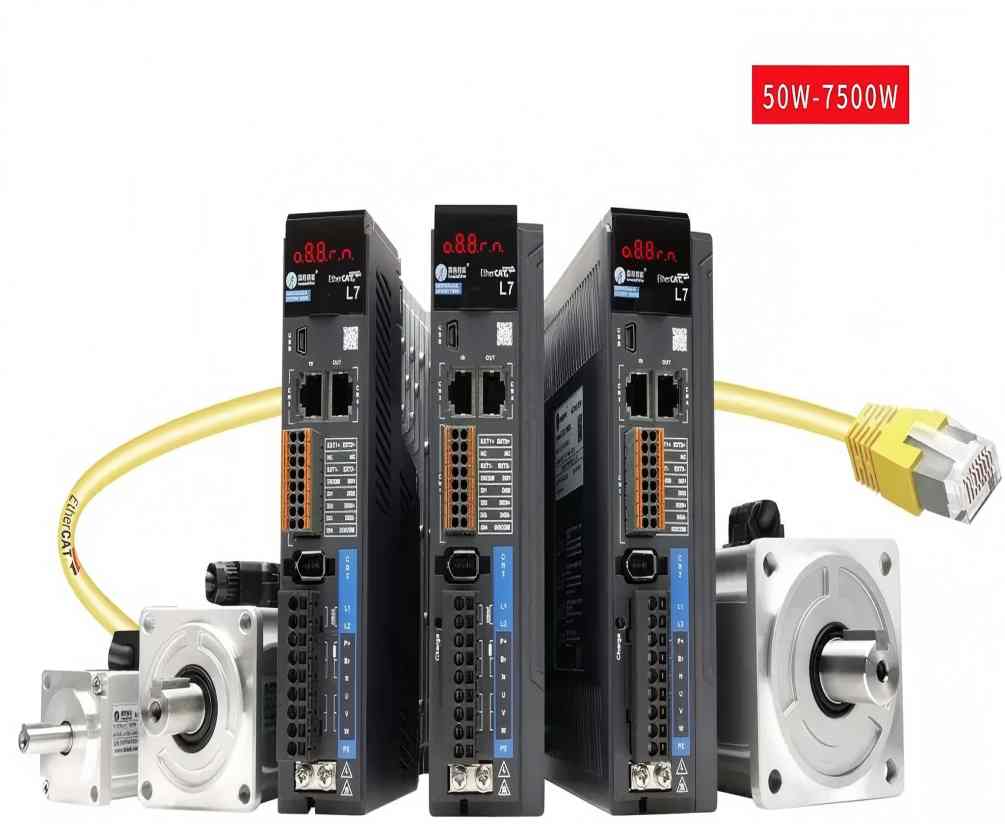

• Power Range: Comprehensive coverage from 50W to 7.5kW to accommodate various load requirements
• Safety Compliance: Enhanced models include STO (Safe Torque Off) function certified to SIL3 safety level, meeting international industrial safety standards
• Built-in Protection: Standard dynamic braking and regenerative resistor for energy efficiency and system protection
• USB-Only Configuration: Supports parameter import/export via USB power supply only, eliminating the need for external power during setup

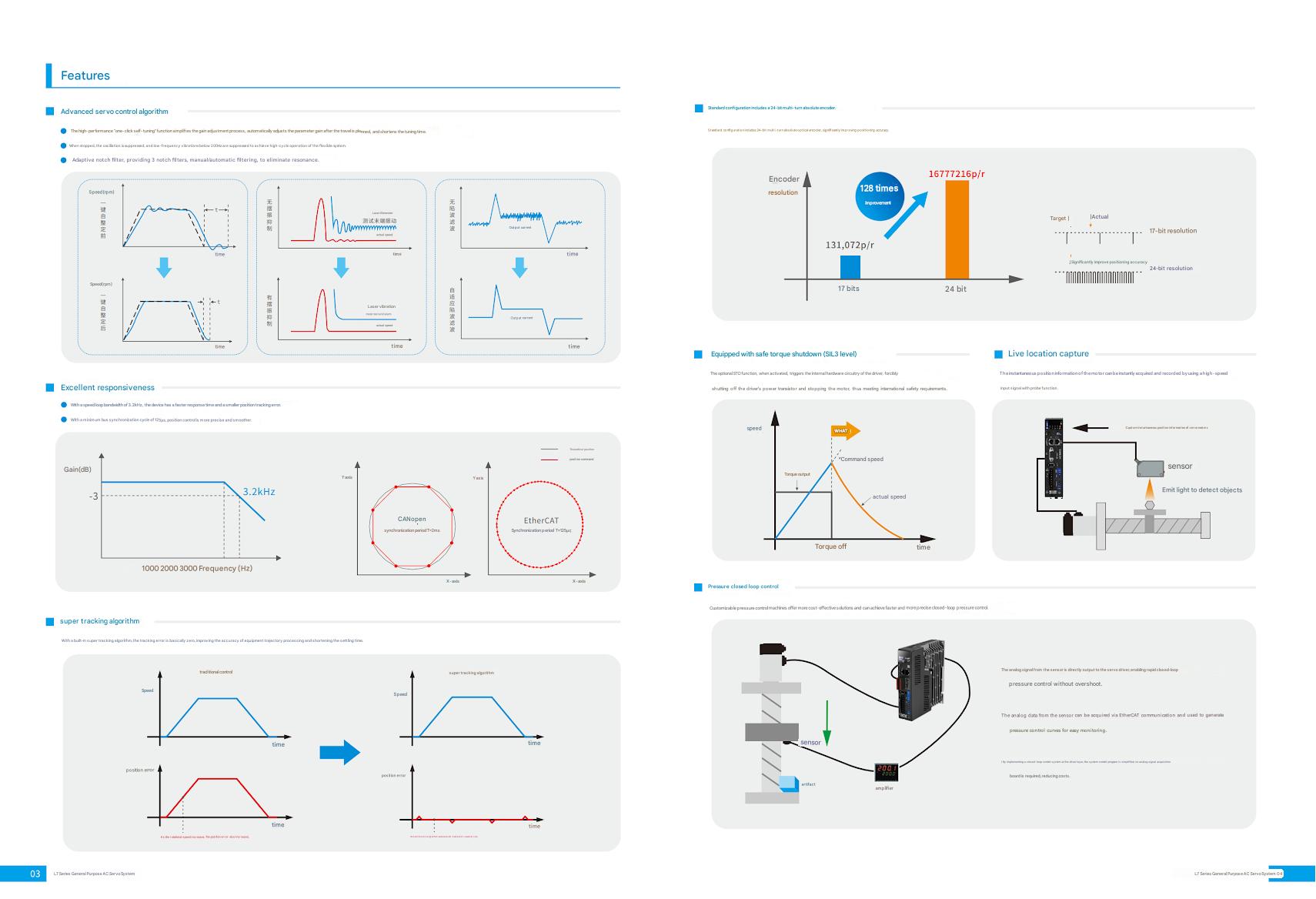

Intelligent Control Functions

• Rigidity Table Settings: Pre-configured parameter sets for quick adaptation to different mechanical systems
• Automatic Inertia Identification: Self-calibrating system that optimizes performance for varying load conditions
• Advanced Vibration Suppression: Real-time algorithms minimize mechanical resonance, ensuring smooth operation
• One-Click Auto-Tuning: Simplifies commissioning by automatically optimizing PID parameters

Core Advantages

1. • Superior Precision: 24-bit multi-turn encoder technology provides 16 million positioning points per revolution, ensuring consistent product quality in high-precision applications
   • Lightning-Fast Response: 3.2kHz speed loop bandwidth reduces settling time by 40% compared to standard servo systems, significantly boosting production efficiency
   • Ultra-Smooth Operation: Advanced vibration suppression technology minimizes mechanical wear, extending equipment lifespan while improving surface finish quality in machining application
   • Simplified Commissioning: Rigidity table settings, inertia identification, and one-click auto-tuning reduce setup time by 70%, eliminating the need for specialized engineering expertise
   • Flexible Connectivity: Multi-protocol support allows seamless integration with all major PLC brands and industrial controllers, protecting your automation investment
   • Parameter Portability: USB-only configuration enables easy backup and transfer of settings between drives, simplifying maintenance and reducing downtime
     • High Cost-Efficiency: Competitive pricing combined with low maintenance requirements delivers 30% lower total cost of ownership compared to premium alternatives
     • Energy Savings: Dynamic braking and regenerative resistor technology reduce energy consumption by up to 25% in cyclic motion applications
     • Reliable Operation: Industrial-grade components and IP67-rated motors (optional) ensure stable performance in harsh manufacturing environments
     • Global Compatibility: Designed for worldwide use with multi-voltage support and international safety certifications
   • Applications
   • The Leadshine L7 Series excels across a wide range of industrial automation applications, where precision, speed, and reliability are critical:

     🏭 Electronics Manufacturing

     • PCB assembly equipment (pick-and-place machines)
     • Semiconductor processing tools
     • Electronic component testing systems
     • Precision dispensing and coating machines
     • Automated optical inspection (AOI) equipment

     🤖 Robotics & Motion Control

     • SCARA and 6-axis industrial robots
     • Collaborative robots (cobots)
     • Cartesian coordinate robots
     • Gantry systems and linear motion stages
     • Delta robots for high-speed packaging

     🔦 Laser Processing

     • Fiber laser cutting and engraving machines
     • CO2 laser systems
     • Laser marking and micromachining equipment
     • 3D laser printing systems

     🛠️ Machine Tools & Machining

     • CNC milling and turning centers
     • Grinding machines
     • Precision lathes
     • Woodworking machinery
     • Metal forming equipment

     📦 Other Industrial Applications

     • Automated packaging lines
     • Material handling systems
     • Printing and converting machinery
     • Textile and garment production equipment

2.

Application: electronics manufacturing, mechanical arms, laser systems, and machine tools.
