Embedded Screw Slide Table: Compact Integrated Linear Module with High Rigidity, Low Maintenance & Cost-Effective Design for Industrial Automation

High-rigidity embedded screw slide table with compact footprint, low maintenance and cost-effective linear motion for industrial precision automation

Categories: Ball Screw Actuators, Linear Motion Module

Description
Technical Parameters

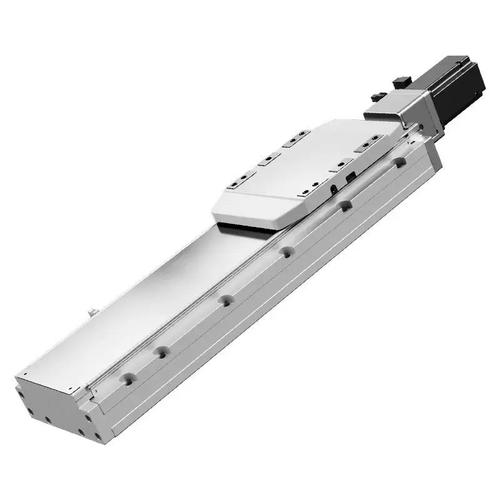

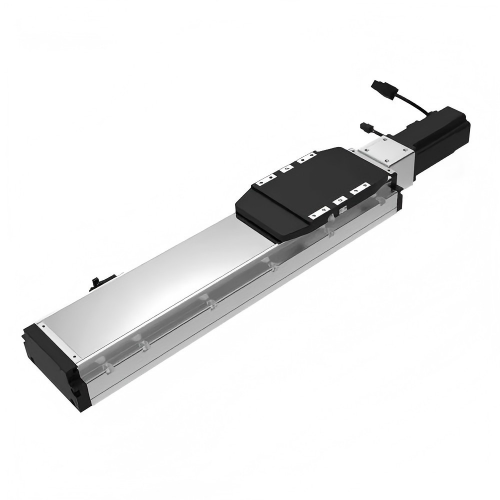

Embedded Screw Slide Table is a high-performance integrated linear motion solution, combining the efficiency of ball screw transmission with the structural advantages of embedded guide rail design. Built for compact installation, enhanced rigidity, and low maintenance, this linear module delivers reliable precision movement for industrial automation projects where space, cost, and uptime are critical priorities

Core Features

Engineered with embedded design principles, this linear module is packed with functional features tailored for industrial use:

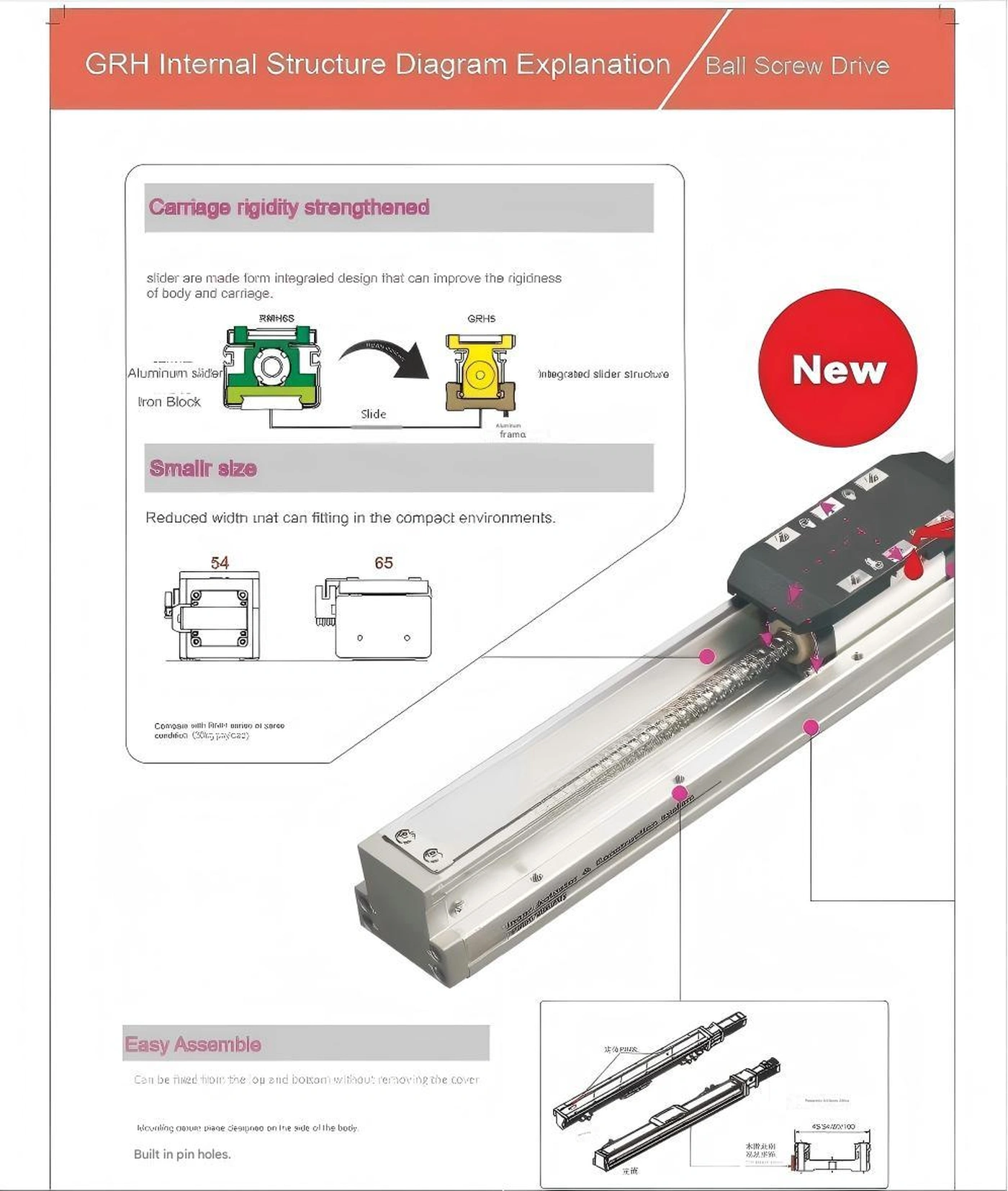

Integrated Embedded Rail Structure: The one-piece embedded guide rail eliminates the need for separate external rails, boosting overall structural rigidity while simplifying assembly.
Ultra-Compact & Slim Build: Narrow width and streamlined body reduce footprint, fitting easily into equipment with limited installation space or multi-axis automation systems.
Low-Maintenance, Service-Friendly Design: No need to disassemble steel belts or protective covers for upkeep. Direct screw locking and external oil injection enable quick, hassle-free maintenance.
Sealed Dust-Proof Construction: The enclosed embedded housing blocks dust, debris, and contaminants from entering internal components, protecting the ball screw and extending service life.
Precision Ball Screw Transmission: High-quality ball screw ensures smooth, low-friction linear motion, delivering consistent positioning accuracy for precision tasks.
Flexible Mounting Compatibility: Supports multiple installation orientations to adapt to diverse equipment layouts and automation workflows.

Core Advantages

Built to solve common pain points in traditional linear modules, our embedded screw slide table offers key benefits for your operations:

✅ Space-Saving Efficiency

The slim, compact form factor cuts down installation space requirements, making it ideal for small-scale automation equipment, multi-axis Cartesian robots, and tight production environments where every inch counts.

✅ Enhanced Structural Rigidity

The integrated embedded rail design eliminates the need for separate linear guides, reducing deflection under load and improving overall stability—even during high-speed or high-load operations.

✅ Hassle-Free Assembly & Maintenance

Quick, straightforward installation with direct screw locking cuts assembly time. Maintenance is simplified with external oil injection, eliminating disassembly of protective parts and reducing equipment downtime.

✅ Fast, Reliable Delivery

Standard stroke lengths are kept in stock, ensuring short lead times to keep your projects on schedule without compromising on quality.

✅ Cost-Effective Performance

Unlike traditional ball screw modules that require separate linear guides, our embedded slide table eliminates guide rail costs, delivering reliable precision motion at a lower total project cost.

Applications

With its compact design, high rigidity, and low maintenance needs, the embedded screw slide table excels in a wide range of precision automation applications:

Industrial Automation Equipment
Ideal for point dispensing machines, laser marking systems, precision welding tools, and pick-and-place systems, where compact size and stable movement are essential.
3C Electronics Manufacturing
Perfect for PCB assembly, component testing, and electronic product assembly lines, supporting precise positioning in tight, high-volume production environments.
Medical & Laboratory Devices
Suitable for medical diagnostic equipment, lab automation platforms, and small-scale medical devices, offering low-contamination, consistent movement for sensitive applications.
Semiconductor & Microelectronics
Used in test and inspection equipment, small-scale wafer handling systems, and microelectronic assembly tools, delivering reliable motion in controlled production environments.
Packaging & Logistics Machinery
Applied to packaging line positioning, labeling equipment, and sorting systems, providing smooth, efficient linear movement for automated packaging and logistics workflows.

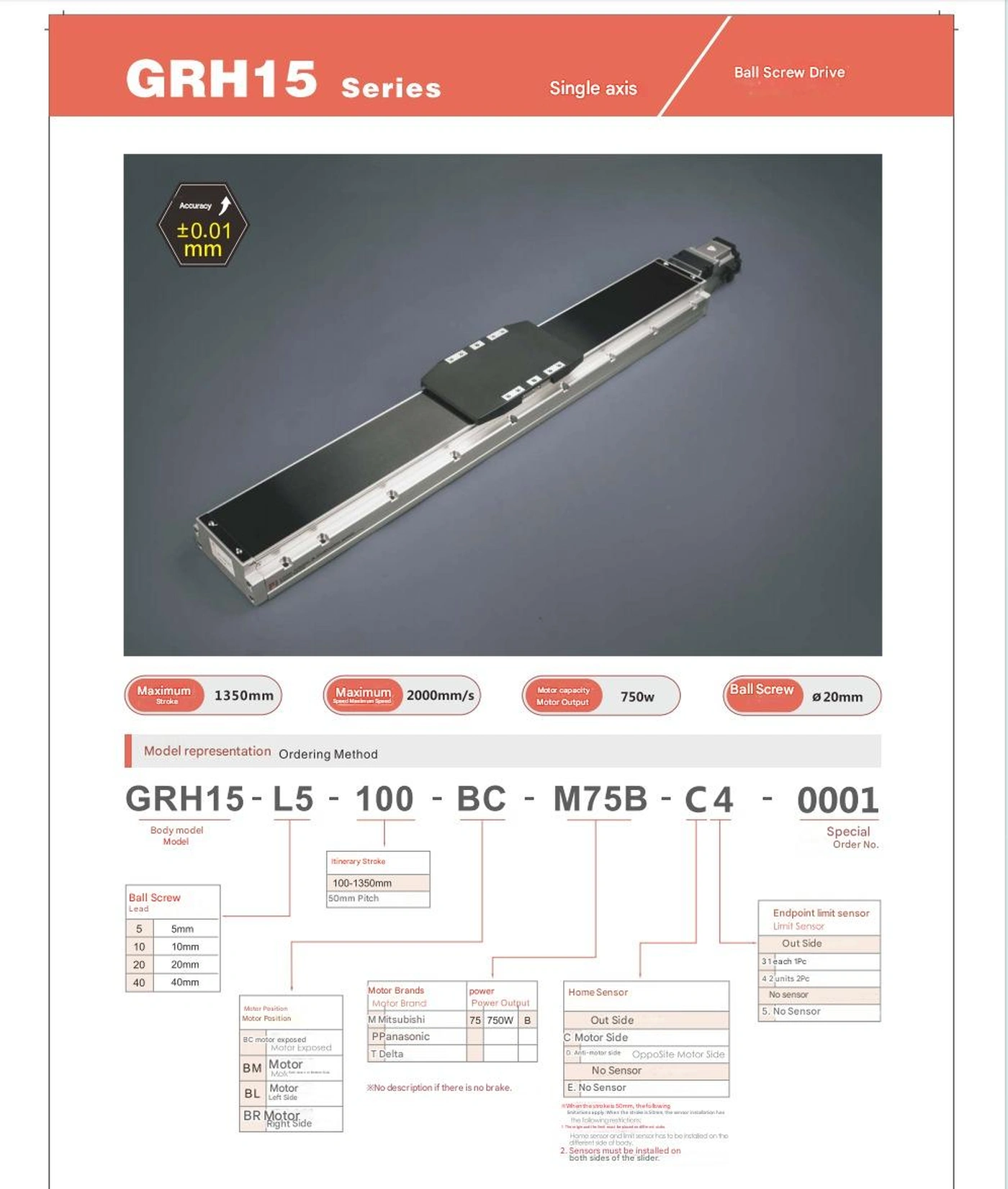

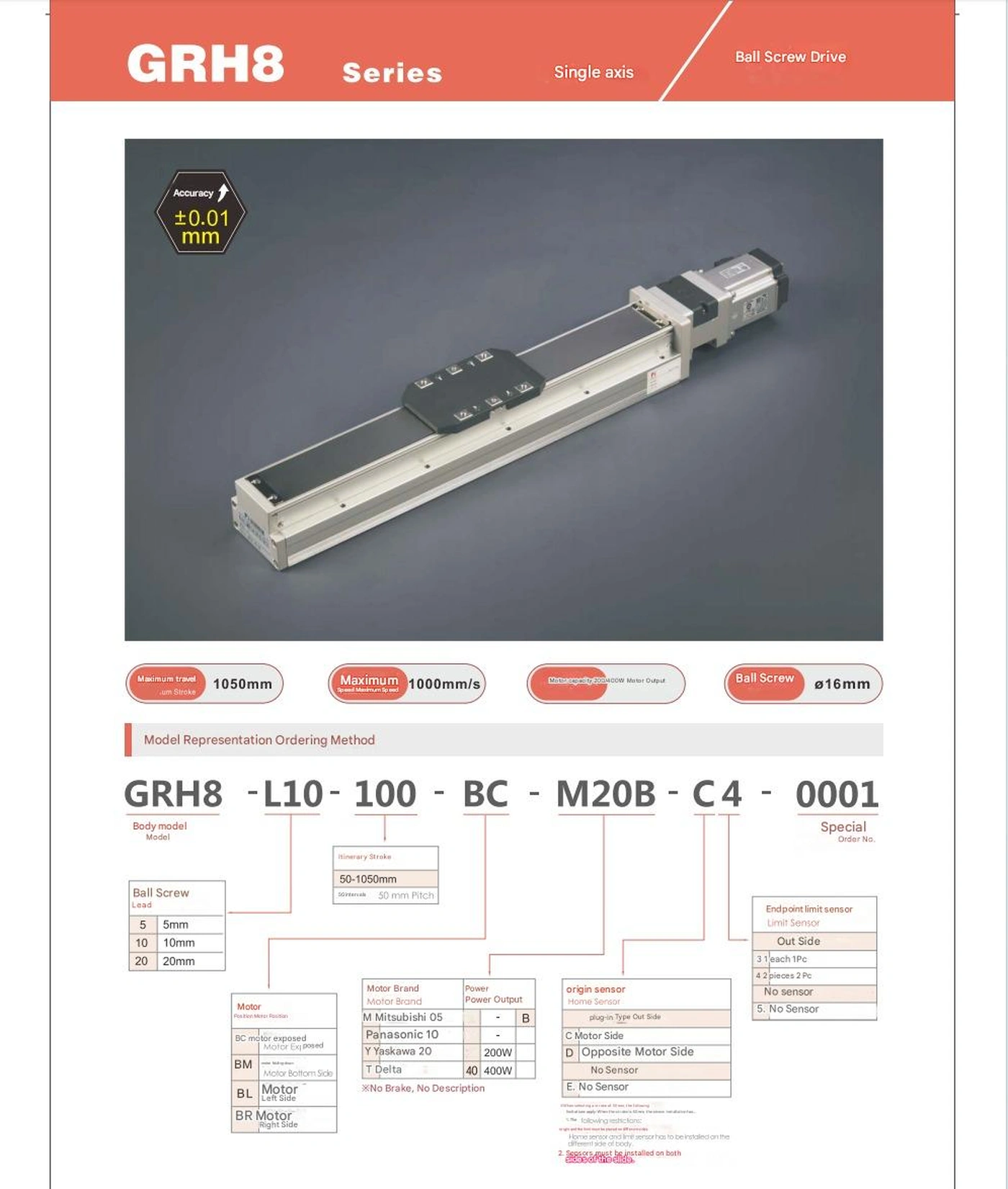

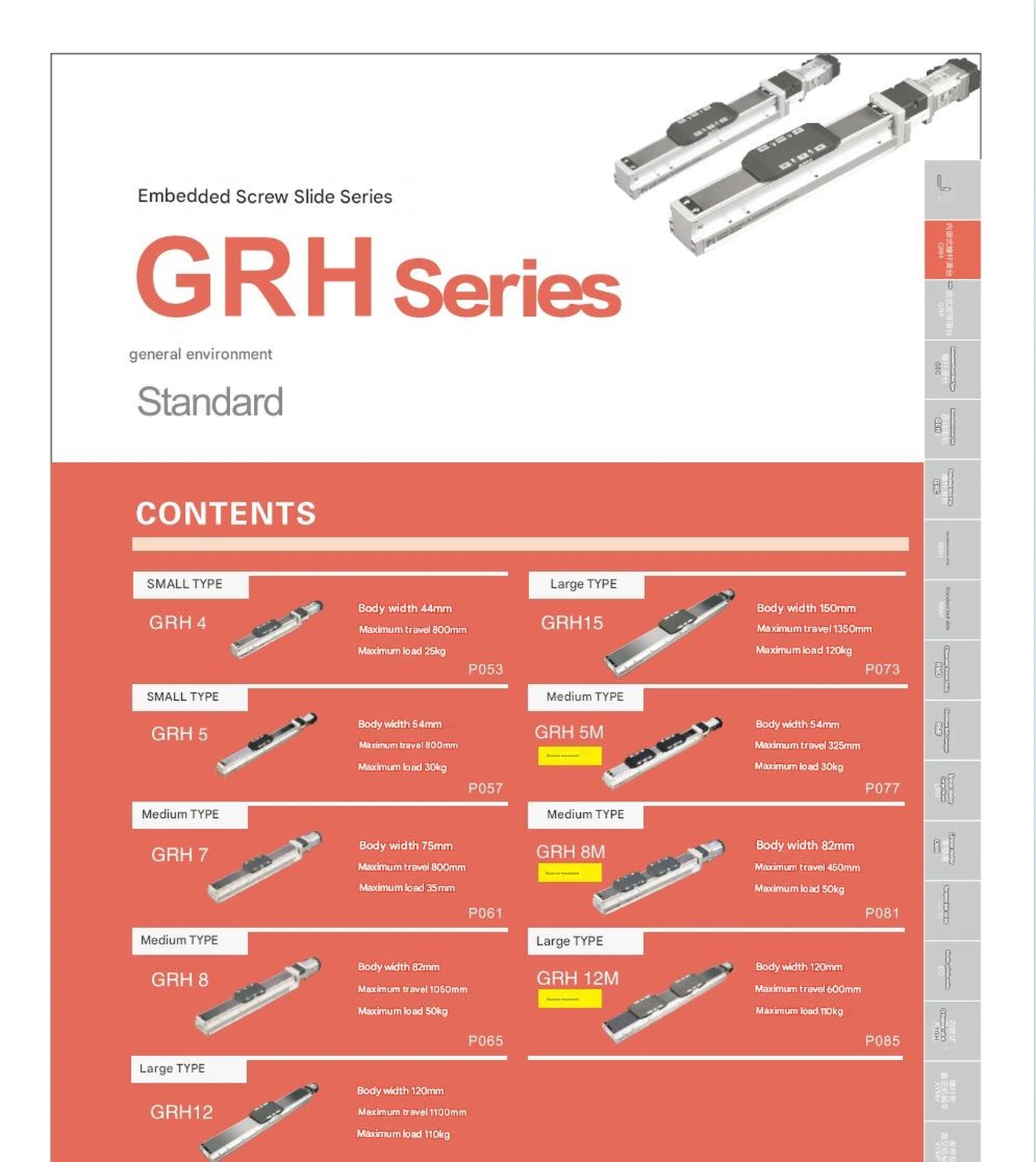

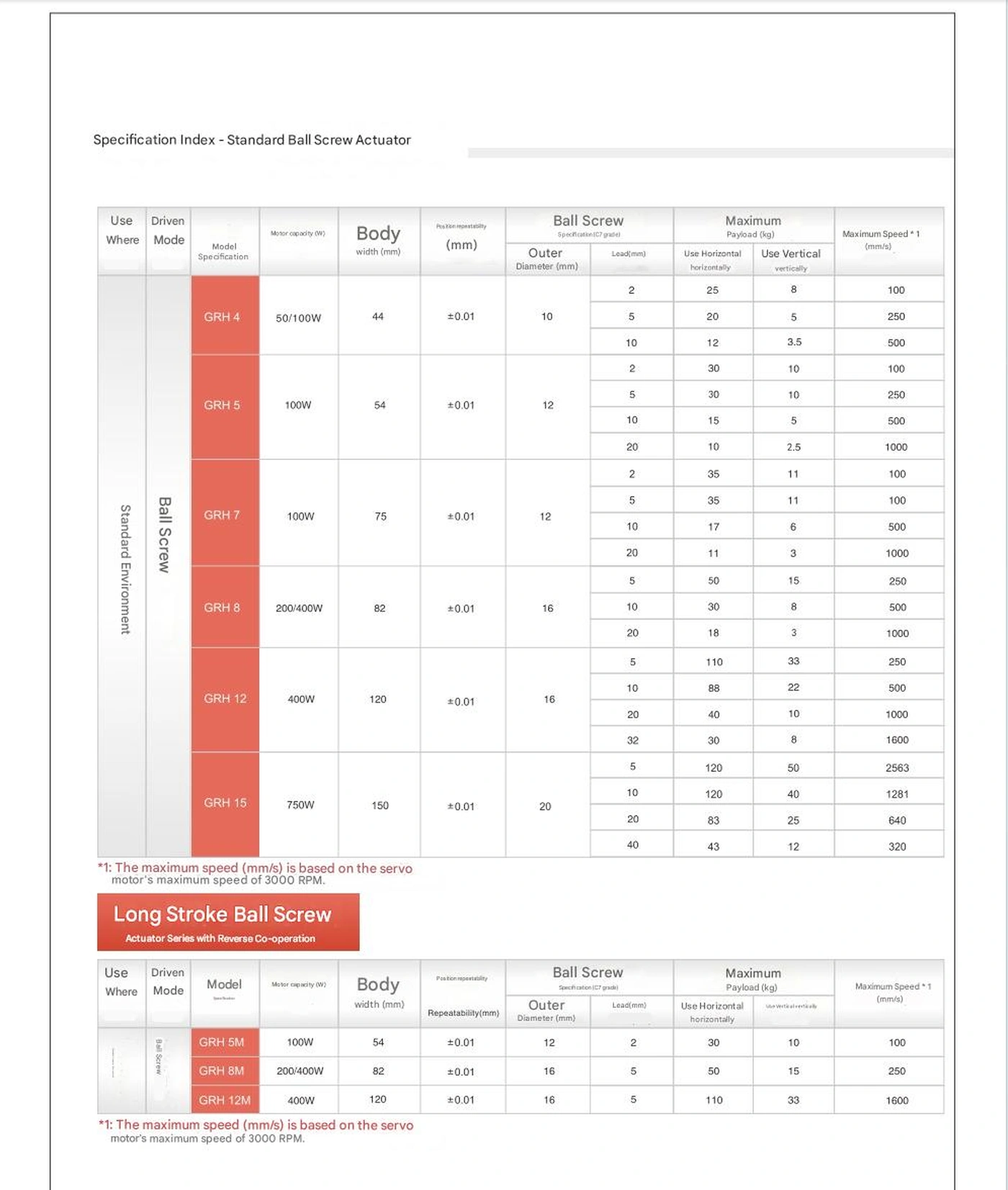

Optional Model	GRH4 /GRH5/GRH7 /GRH8/GRH12 /GRH15/GRH5M/GRH8M
Body width	82mm
Repeatability	±0.01mm
Horizontal Load	50kg
Vertical Load	15kg
Maximum Speed	1000mm/s
Travel Range	50-1050mm
