Leadshine ACM Series AC Servo Motor – High-Torque, Energy-Efficient Solution for Precision Motion Control in Industrial Automation and Robotics

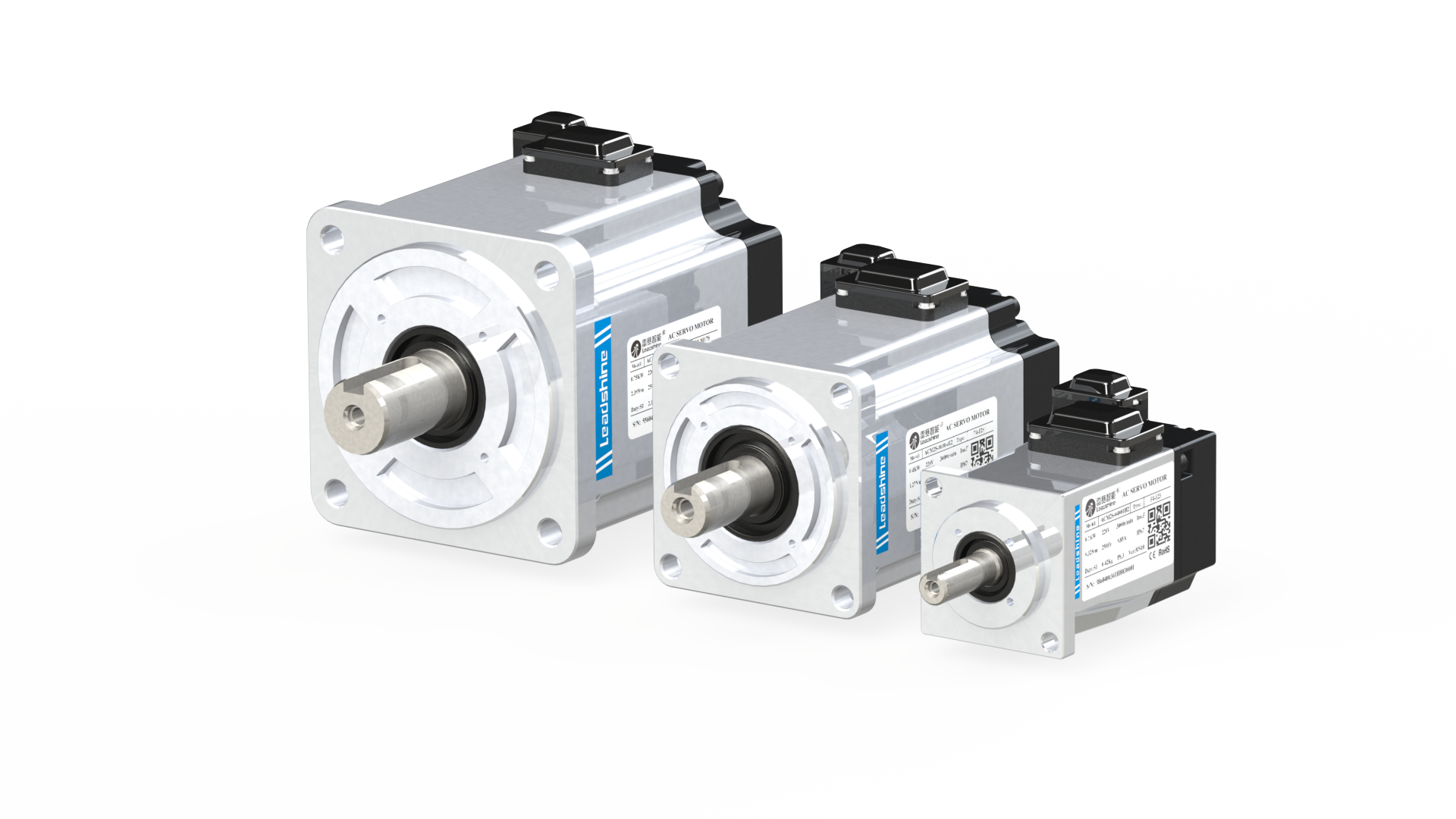

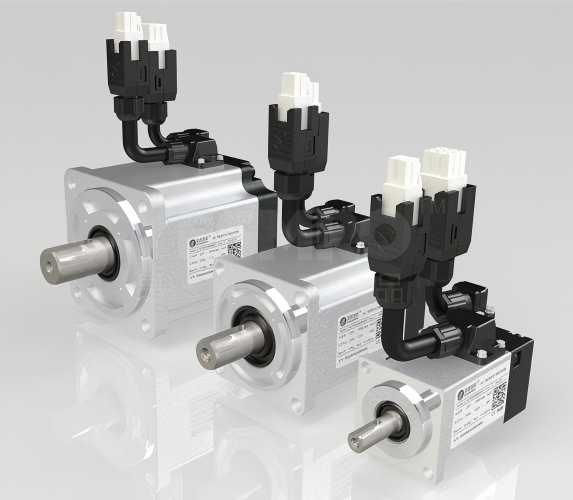

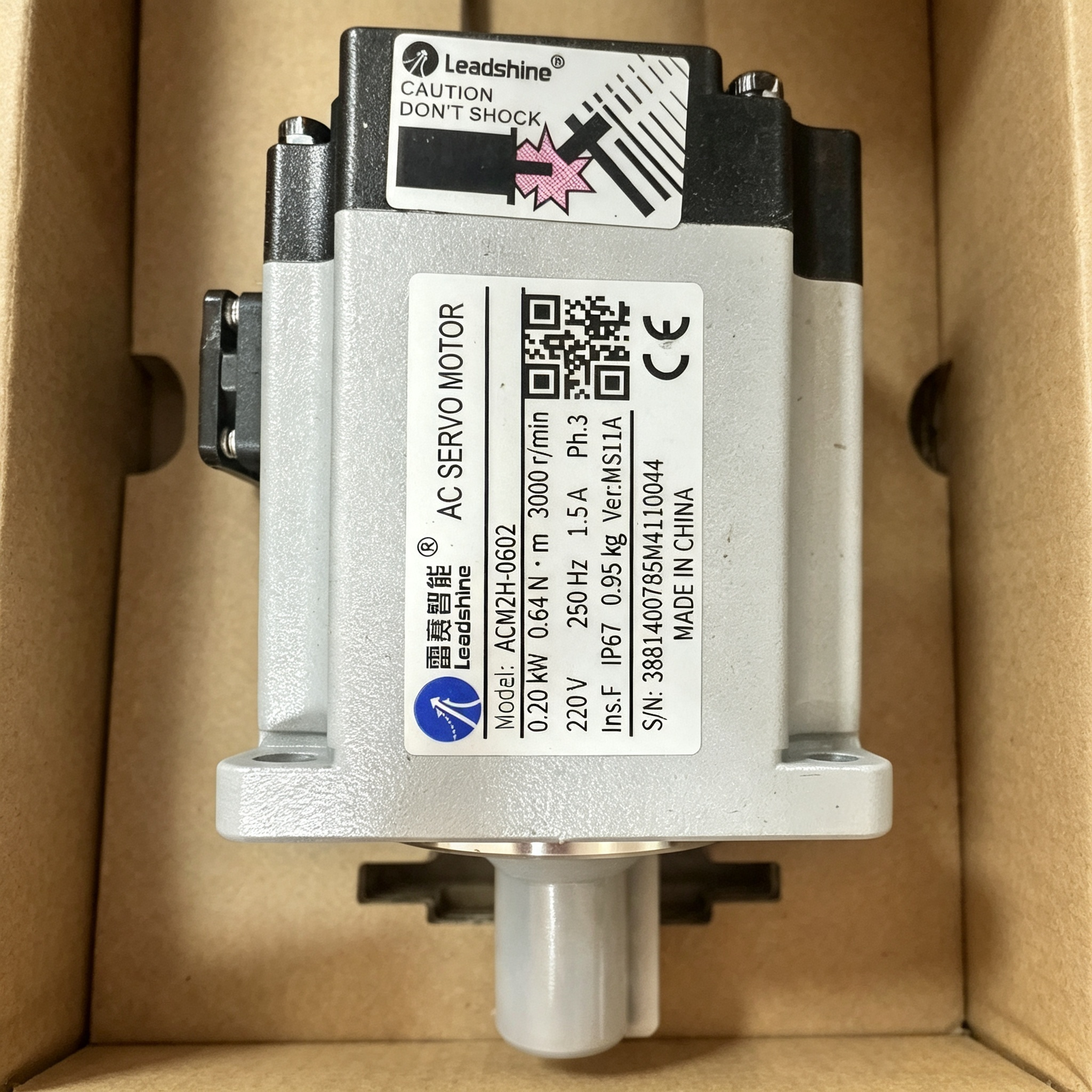

Leadshine ACM Series High Precision AC Servo Motor for Industrial Automation

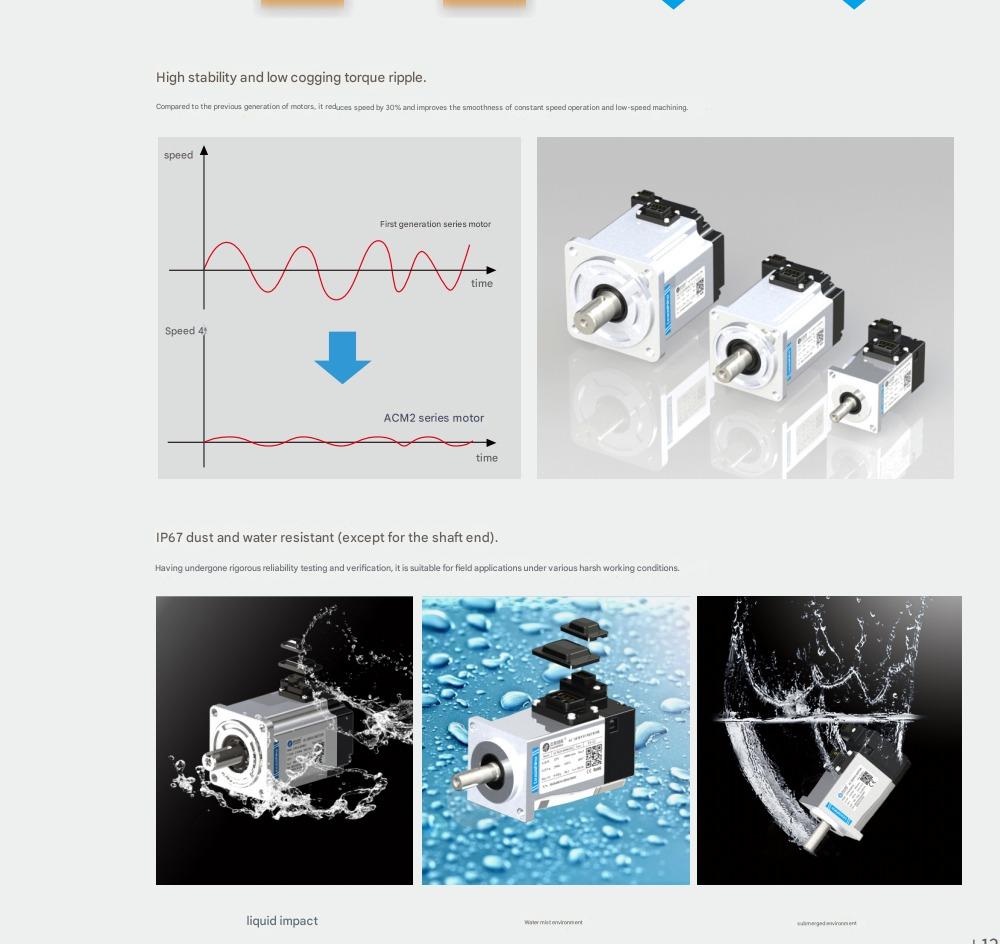

| The ACM Series Motor is a general-purpose AC servo motor independently developed by Leadrive Intelligent. This series uses Leadrive’s 24-bit encoder as the position feedback unit, offering higher feedback precision and improved response performance. The motor features a new magnetic circuit design, which reduces the motor body length by 30% compared to the previous model, resulting in significant improvements in both mechanical and electrical performance. The motor can withstand 3.6 times overload, exhibits low cogging torque ripple, and offers excellent low-speed stability, providing faster response times.
Core Advantages: 1.Compact motor size 2.Meets 3 times overload capacity 3.Standard 24-bit encoder 4.Maximum speed of 4500 rpm for 180-frame motors 5.Motors above 850W meet GB30253-1 Class 1 energy efficiency requirements 6.UL certified
Applicable Industries: |
| Model |
ACM Series (ACM2L/ ACM2H/ ACM2M) |
|---|---|
| Input Voltage |
220V / 380V AC |
| Rated Power(W) |
850-1800 |
| Rated Speed(PRM) |
1500 |
| Max Speed(PRM) |
4500 |
| Rated Torque(N.m) |
5.39-11.5 |
| Maximum Current (Arms) |
32 |
| Protection Class |
IP67 |
