Ultra Precise Motorized Stage For Fiber Coupling Alignment

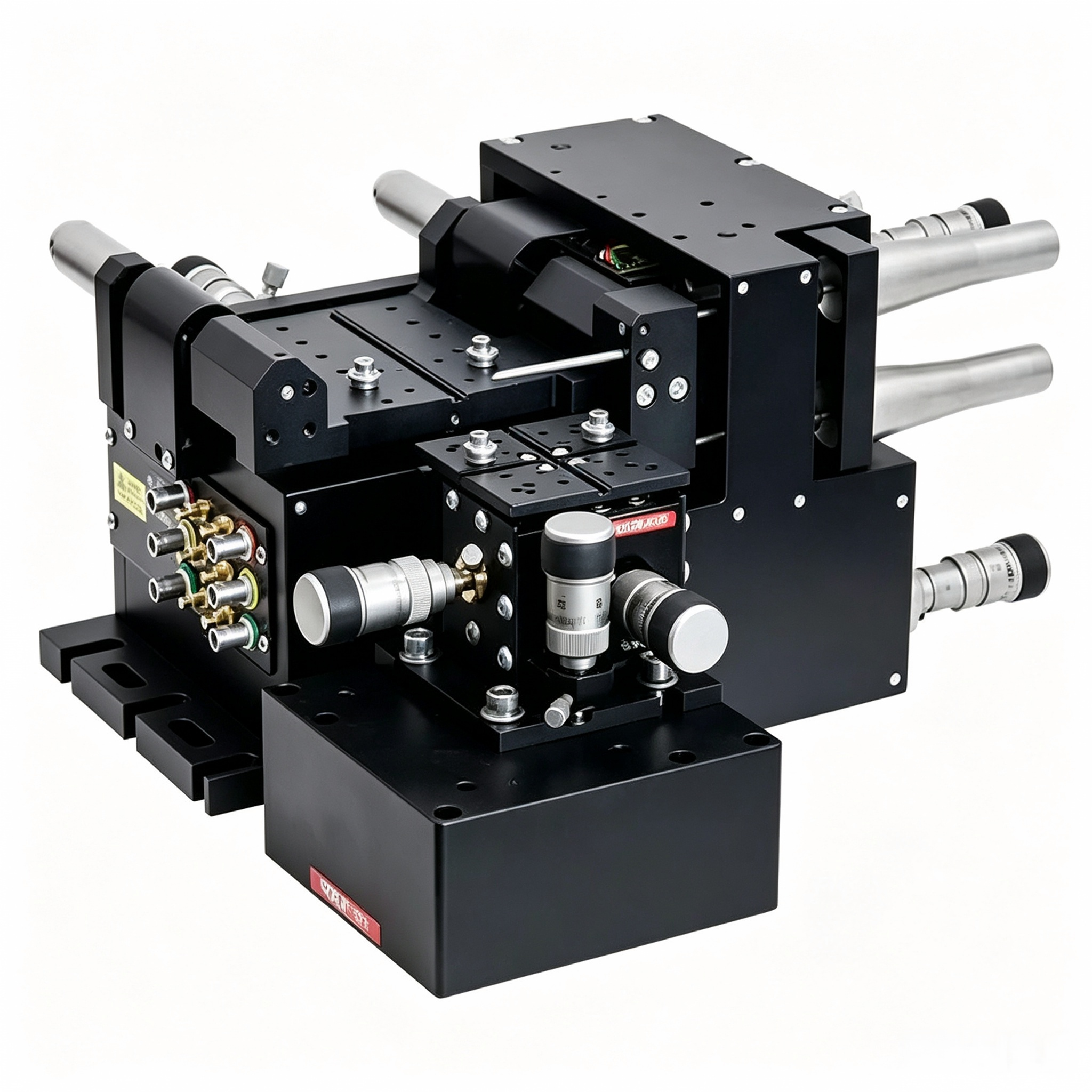

This motorized precision 6DOF stage integrates XYZ linear translation together with θX, θY, θZ angular deflection to deliver full six-degree-of-freedom automated regulation. It resolves the optical axis tilt & angular misalignment drawbacks of traditional 3-axis translation platforms, drastically cuts fiber coupling insertion loss, shortens optical debugging cycles, and delivers consistent repeat positioning for silicon photonics, CPO packaging, 400G/800G optical modules and optoelectronic automated production lines.

Ultra Precise Motorized 6DOF Stage | Automated Fiber Coupling Positioning Platform

This motorized precision 6DOF stage integrates XYZ linear translation together with θX, θY, θZ angular deflection to deliver full six-degree-of-freedom automated regulation. It resolves the optical axis tilt & angular misalignment drawbacks of traditional 3-axis translation platforms, drastically cuts fiber coupling insertion loss, shortens optical debugging cycles, and delivers consistent repeat positioning for silicon photonics, CPO packaging, 400G/800G optical modules and optoelectronic automated production lines.

Product Overview

Driven by the rapid iteration of optical communication, silicon photonic chips, laser diodes, photonic integrated circuits and precision optical systems, fiber coupling technology has raised stringent requirements for positioning accuracy, adjustment stability and overall coupling efficiency.

To ensure efficient optical signal transmission inside fiber coupling systems, optical fibers need micron to sub-micron spatial matching with photonic chips, laser devices, photodetectors and other optical components. Single-mode fiber features an ultra-small mode field diameter; trivial positional deviation or micro angular tilt will generate substantial coupling loss, which directly limits the overall performance of optoelectronic devices.

Conventional adjustment platforms merely support single-axis or XYZ 3-axis translational movement, unable to synchronously optimize spatial position and angular posture, hence failing to satisfy complex optical path debugging demands.

The motorized precision 6DOF stage adopts an integrated 6-degree-of-freedom mechanical framework: XYZ three-dimensional linear displacement plus θX, θY, θZ three-axis angular deflection control. It accomplishes multi-dimensional precise alignment for fiber coupling applications, greatly improving optical alignment efficiency and long-term system stability.

motorized‑linear‑translation‑stage-for-fiber-coupling-alignment



Working Principle & Performance Specifications

High-precision positioning between optical fibers and optical components is the decisive factor for coupling efficiency. Whether for laser chip-fiber coupling, fiber array docking with waveguide chips, or optical path matching between fibers and photodetectors, delicate fine-tuning is required to lock the optimal coupling operating point.

During practical commissioning, engineers continuously adjust the spatial posture of fibers according to real-time optical power readings to achieve maximum optical transmission efficiency. The motorized 6DOF stage covers all six degrees of freedom for fine adjustment, enabling precise control over fiber horizontal/vertical/axial position, pitch, yaw and rotational posture, which effectively shortens the debugging cycle of fiber coupling systems.

Traditional pure XYZ translation stages only execute linear displacement; once tilt deviation or optical axis misalignment exists on fiber end faces, translational adjustment alone cannot reach the optimal coupling state. Actual fiber coupling processes demand compensation for end-face inclination and axial rotation errors besides spatial movement.

The integrated XYZ-θX-θY-θZ structure allows synchronous fine-tuning of linear displacement and angular deflection, perfectly fitting fiber end faces to target optical paths and lowering optical insertion loss remarkably.

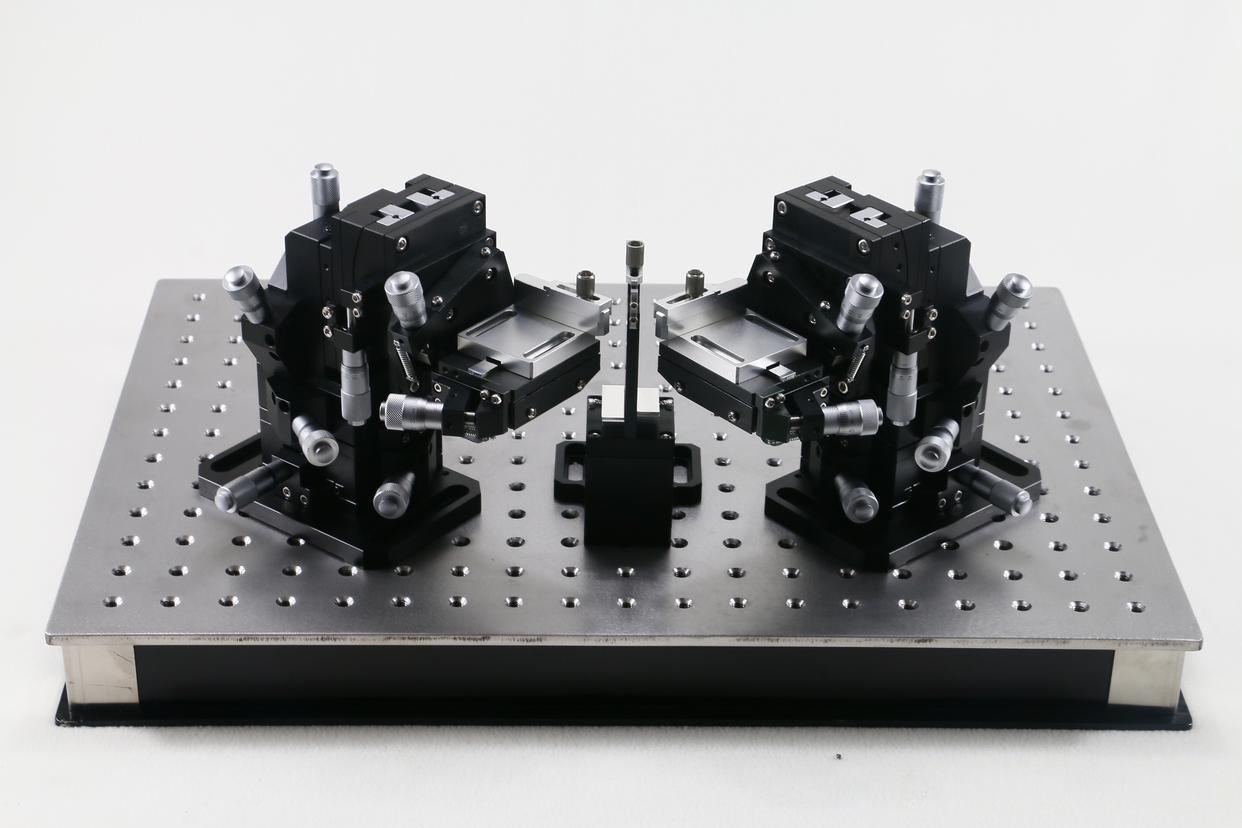

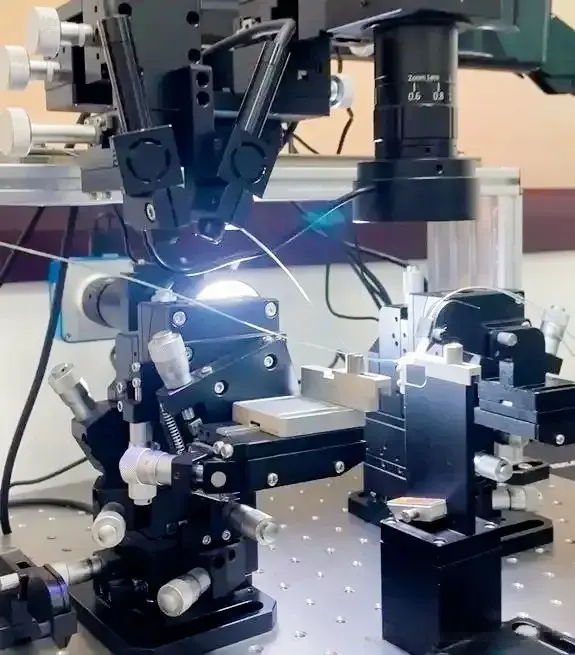

motorized 6-axis positioning platform

Motorized Linear Stage VS Manual Linear Stage— Comparison

Motorized Linear Stage VS Manual Linear Stage— Comparison
Comparison DimensionManual Linear StageMotorized Linear StageBest Suited For
Power SupplyNo power required; fully hand-operatedRequires external power supply and motor driverManual: field / lab setups without power; Motorized: automated production lines
Electromagnetic Interference (EMI)Zero EMI; no circuit noise, ideal for weak laser / fiber signalsGenerates EMI and electrical noise that may interfere with sensitive optical signalsManual: photonics, fiber coupling, optical alignment; Motorized: non-optical automation
Positioning AccuracyMicron-level via micrometer screw / differential head; depends on operator skillSub-micron to nanometer repeatability with closed-loop encoder feedbackManual: static precision calibration; Motorized: high-repeatability dynamic positioning
Control MethodHandwheel / micrometer manual adjustment; DIP or mechanical lockPulse / IO / bus control via PLC, motion controller or PC softwareManual: simple one-off adjustment; Motorized: programmable multi-axis motion
Automation LevelManual only; no automated cyclesFully automated; supports program recipes, batch cycles and remote controlManual: R&D, prototyping, low-volume; Motorized: mass production, 24/7 operation
Motion SpeedLow; limited by manual turning speedHigh; configurable velocity, acceleration and trapezoidal motion profilesManual: static alignment; Motorized: high-throughput pick & place, scanning
CostLow cost; simple mechanical structure, no electronicsHigher cost; includes motor, encoder, driver and controllerManual: budget-sensitive labs / startups; Motorized: ROI-driven production
Footprint & IntegrationCompact, lightweight, easy to stack and integrate into optical breadboardsLarger due to motor, coupling and cable management; requires wiringManual: space-limited optical benches; Motorized: cabinet / gantry systems
Programming RequiredNo programming; plug-and-play mechanical operationRequires parameter tuning, motion programming and driver configurationManual: users without motion-control expertise; Motorized: engineering teams
Heat GenerationNo heat generation during operationMotor and driver generate heat; may require cooling in long-run scenariosManual: thermally sensitive optical experiments; Motorized: general automation
Response TimeSlow; depends on operator reaction and handwheel turnsFast; millisecond-level response to control signalsManual: non-time-critical setup; Motorized: real-time / high-cycle tasks
Load CapacityLow to medium; constrained by manual drive torque and structureMedium to high; motor torque supports heavier payloadsManual: light optical components; Motorized: heavy fixtures / multi-axis stages
RepeatabilityModerate; operator-dependent, lower batch consistencyExcellent; closed-loop feedback ensures high batch-to-batch repeatabilityManual: single-point calibration; Motorized: repetitive manufacturing steps
MaintenanceMinimal; periodic lubrication of guide rail onlyMore maintenance; motor, encoder, driver and cabling require periodic checkManual: long-life low-upkeep use; Motorized: scheduled maintenance programs
Typical ApplicationsOptical experiments, fiber coupling, laser alignment, university labs, semiconductor wafer manual fine-tuning, biomedical microscopyAutomated inspection, 3C assembly, laser engraving, PV / lithium battery production, semiconductor handling, CNC machiningChoose based on automation need, EMI sensitivity and throughput target
Ideal Use Case SummaryPrecision static alignment where EMI-free, low-cost and compact manual tuning is prioritizedDynamic, high-throughput, programmable positioning where speed and repeatability dominate

Core Performance

  • Motion Freedom: 6DOF (XYZ Linear Translation + θX/θY/θZ Angular Tilt & Rotation)
  • Driving Mode: Closed-loop servo motor drive
  • Linear Resolution: Sub-micron fine-tuning precision
  • Angular Resolution: Micro-degree deflection accuracy
  • Mechanical Design: Anti-backlash rigid structure, no posture drift post locking
  • Control Method: PC programmable automatic scanning alignment
  • Applicable Objects: Single fiber, lensed fiber, multi-channel fiber arrays

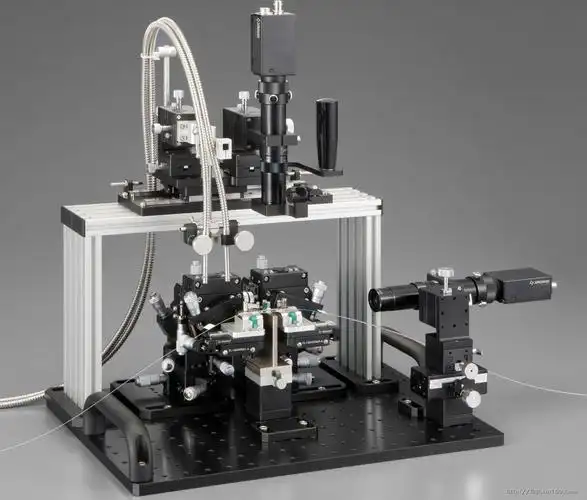

Motorized 6DOF Precision Stage

Core Competitive Advantages

1. Break the Limitations of Traditional 3-Axis Translation Stages

Pure XYZ platforms only realize spatial movement without angular compensation. This motorized 6DOF stage synchronously calibrates position, tilt and rotational deviation to eliminate extra coupling loss triggered by tiny optical axis misalignment.

2. Cut Optical Debugging Time Significantly

Combined with real-time optical power feedback, the system automatically searches for the peak optical power point, eliminating repeated manual fixture adjustment and trial-and-error work. R&D debugging efficiency is substantially lifted.

3. Superior Repeat Positioning & Locking Stability

Optimized rigid mechanical structure eliminates backlash and locking displacement drift. Test data stays consistent during repeated debugging, ensuring reliable experimental outcomes and uniform finished products in mass production.

4. Flexible Configuration for Diversified Photonics Processes

Supports freely configurable optical layouts to fit varied precision demands: high-efficiency laser-fiber coupling for optical modules, high-precision fiber array-waveguide docking for silicon photonics, and long-term stable multi-channel interconnection for photonic chip packaging.

5. Seamless Integration Into Automated Fiber Coupling Production Lines

Compatible with optical power meters, machine vision positioning systems, automatic dispensing units and UVLED curing equipment, forming a full closed-loop workflow: fiber positioning → optimal coupling searching → dispensing fixation → process inspection. Real-time optical power feedback speeds up production tact time, reduces manual repeated adjustment and improves batch product consistency.

6. Future-Proof for High-Speed Optical Communication Evolution

Adapts to the industry trend toward high precision, multi-channel layout and full automation, perfectly matching the manufacturing demands of 400G/800G optical modules, CPO co-packaged optics and silicon photonics.

Application Scenarios

  1. High-Speed Optical Module Packaging

    400G/800G transceiver assembly, TOSA & ROSA component fabrication, laser-fiber active alignment

  2. Passive Optical Component Calibration

    PLC optical splitter coupling, AWG arrayed waveguide device testing and performance tuning

  3. Silicon Photonics & PIC Chip Verification

    Fiber array alignment with waveguide chips, edge/grating coupling testing, wafer-level optical characterization

  4. CPO Co-Packaged Optics Prototyping & Manufacturing

    Multi-channel automated fiber alignment for next-generation AI data center optical engines

  5. Laser Diode & Photodetector Packaging

    Precise coupling between laser chips, detectors and optical fibers

  6. Academic Precision Optics Research

    Custom optical system construction, microscopic optical path debugging and frontier photonics prototype verification

Technical Parameters

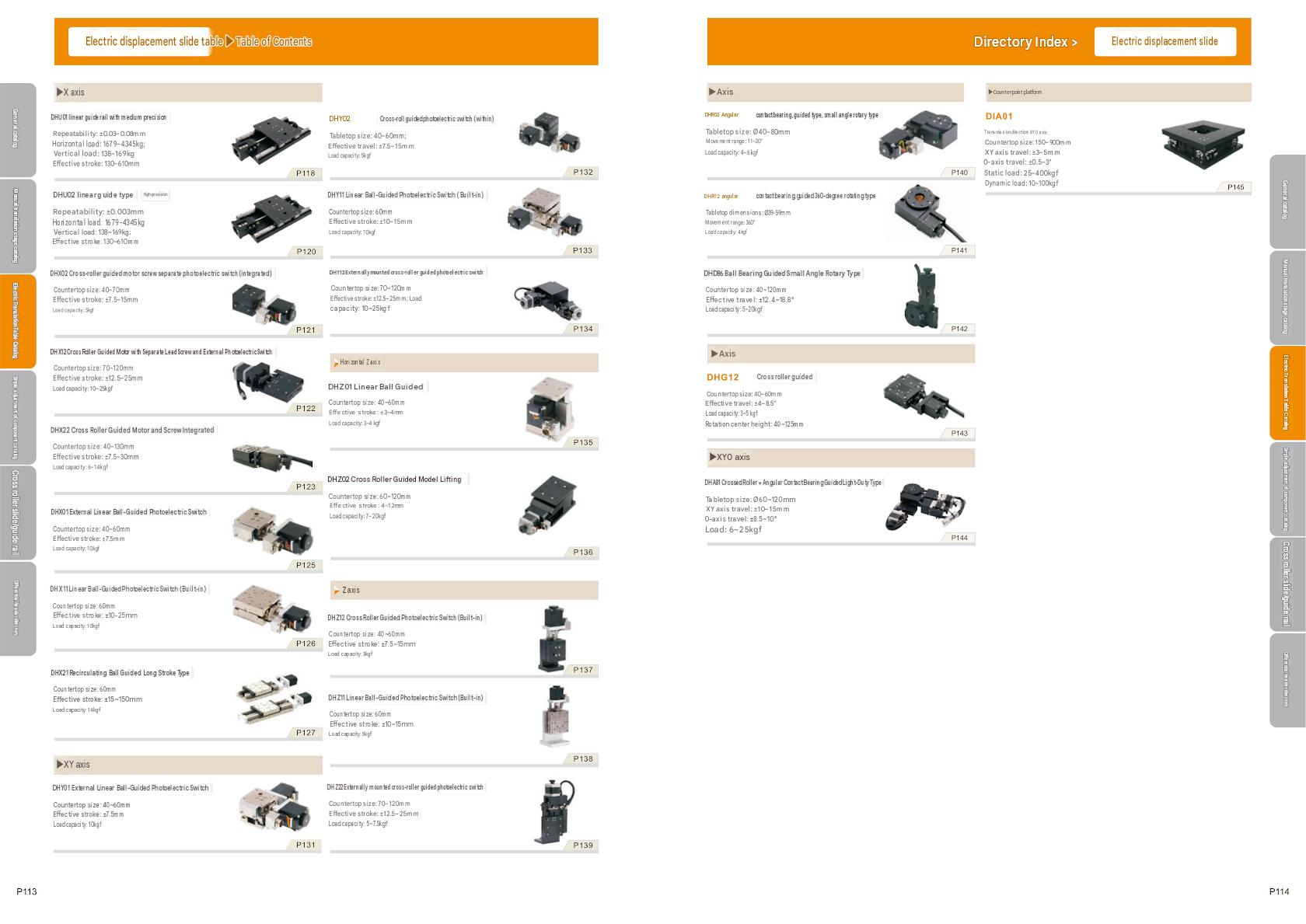

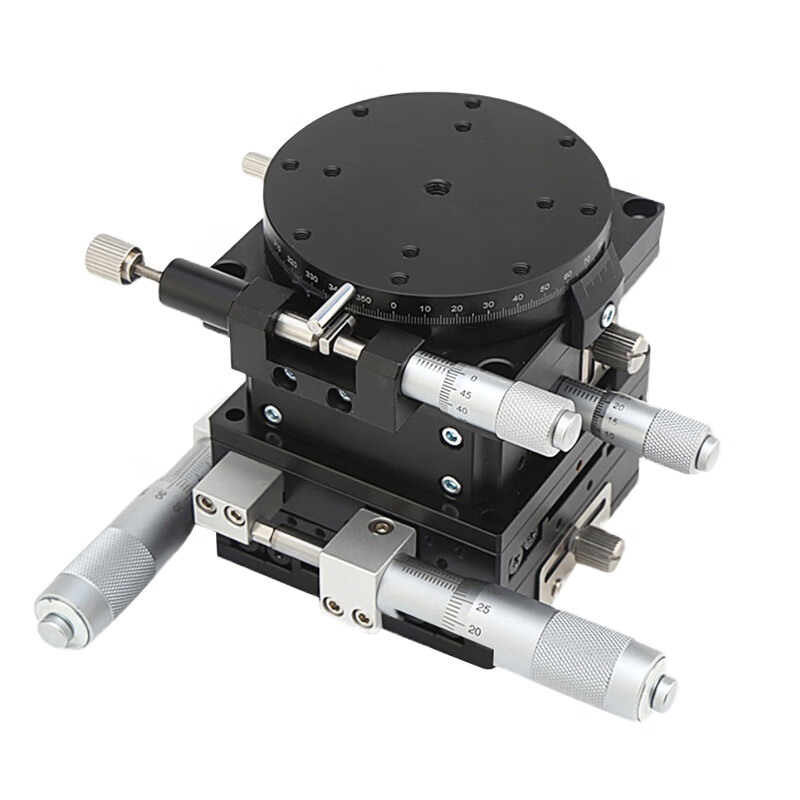

Types of Motorized Translation Stages

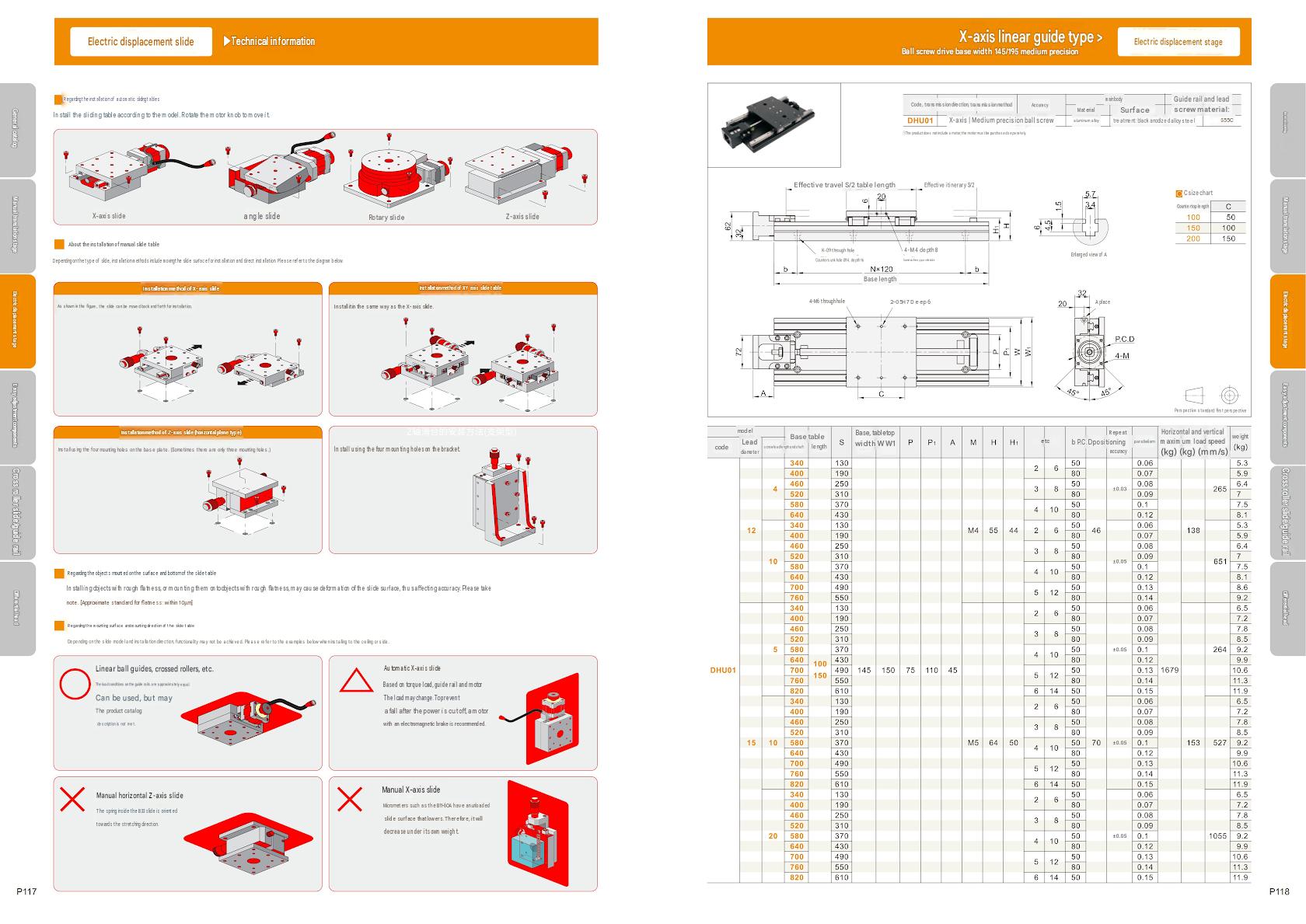

Motorized Linear Stage with ball screw drive parameters

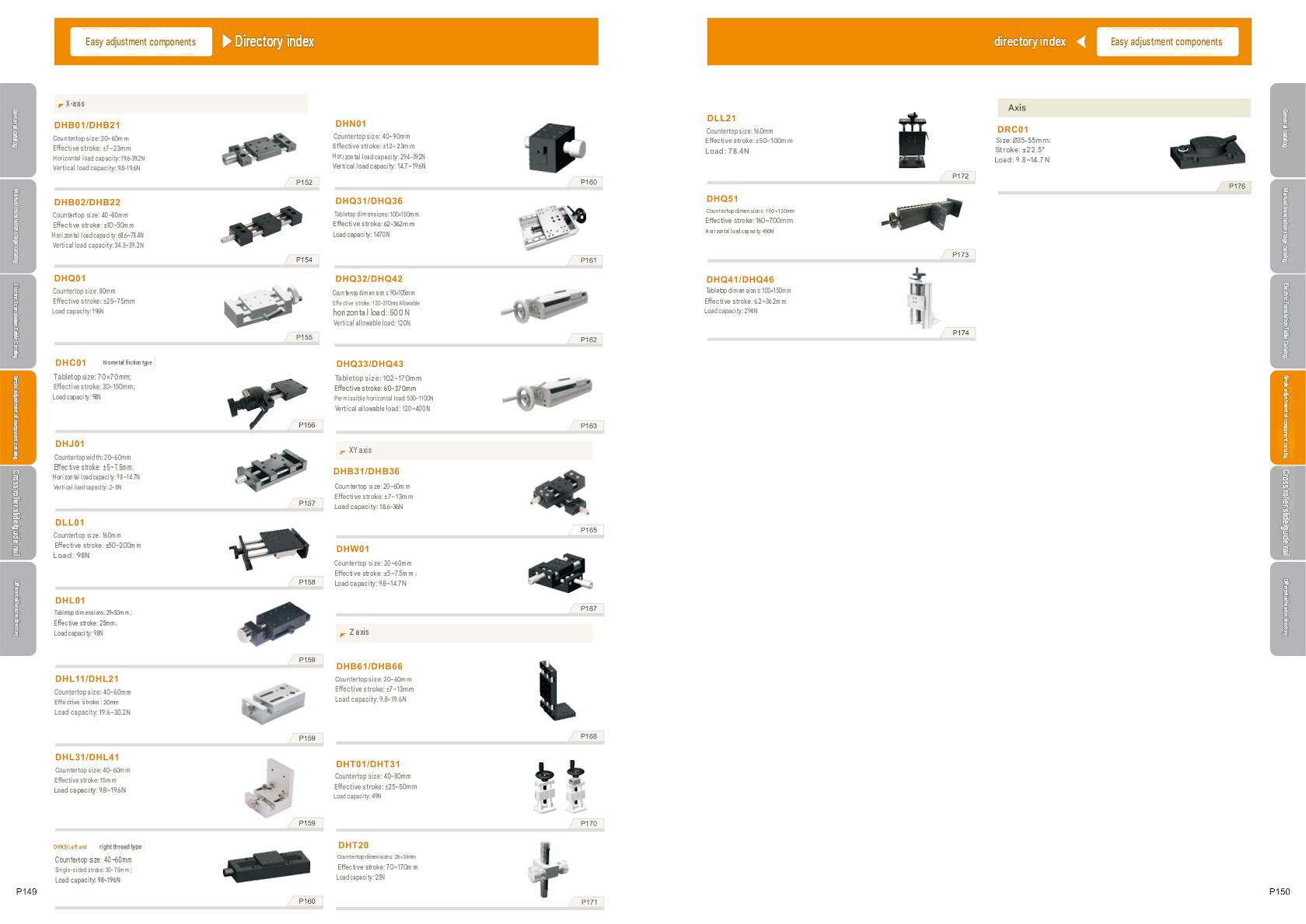

Fine adjustment unit

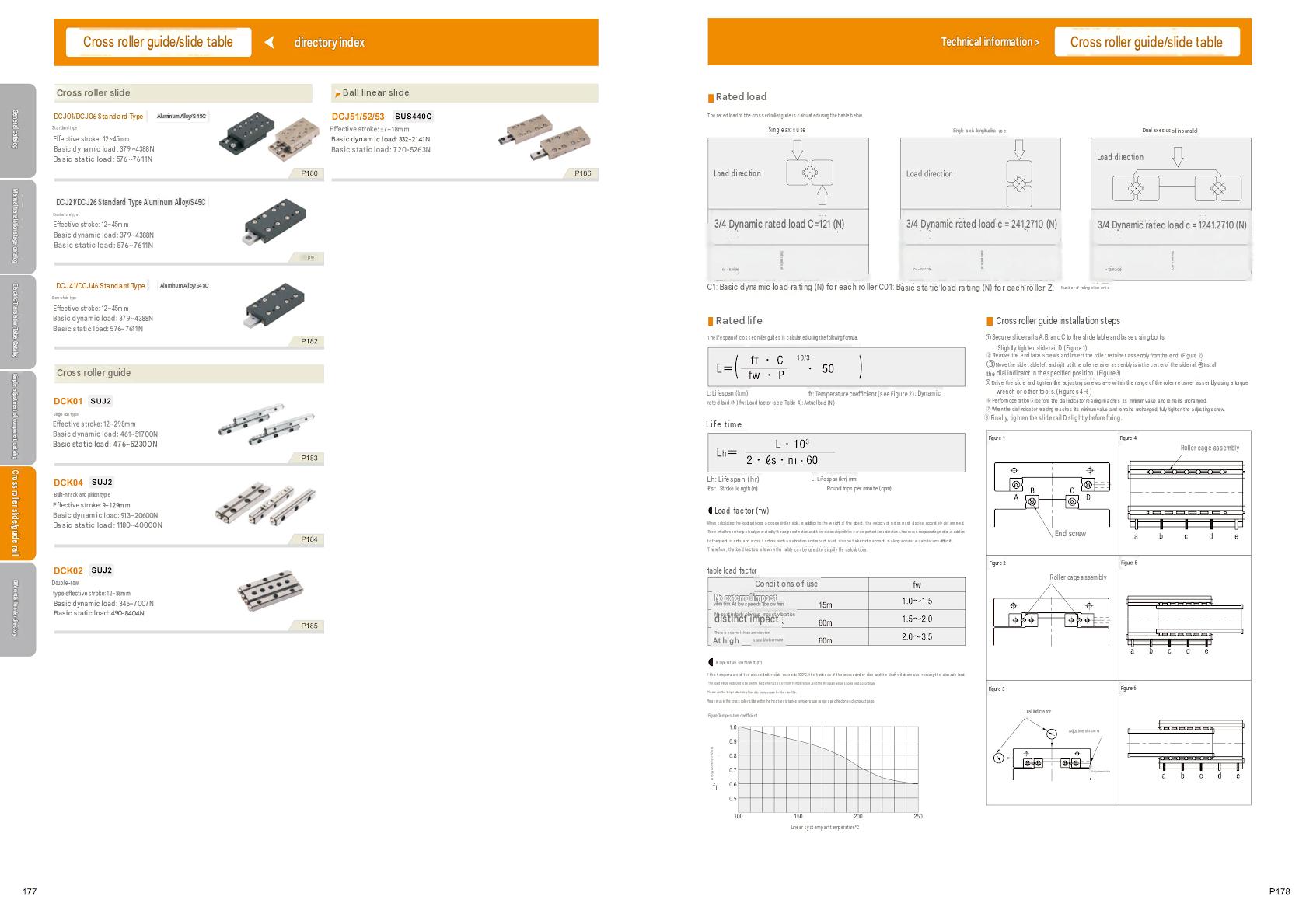

Linear guide rail and Linear stage

Frequently Asked Questions

Q1: What is the core difference between a 3-axis stage and a 6DOF motorized stage for fiber coupling?

A: A 3-axis platform only offers XYZ linear movement without angular adjustment, unable to correct fiber tilt and optical axis skew. The 6DOF motorized stage adds pitch, yaw and rotation compensation, which is indispensable for low-loss single-mode fiber coupling.

Q2: Can this stage work with fully automated fiber coupling production lines?

A: Yes. Equipped with automatic peak-search algorithms and closed-loop servo control, it supports uninterrupted batch operation and perfectly matches large-volume packaging of optical modules and photonic chips.

Q3: Will long-time continuous operation cause positioning drift?

A: The anti-backlash rigid locking structure and closed-loop motor control effectively suppress displacement drift, maintaining stable positioning accuracy during long-term running.

Q4: Can travel range, precision and mounting fixtures be customized?

A: Custom parameters, structural fixtures and control interfaces are available based on fiber specifications, chip dimensions and automation platform requirements.



Looking for stable, high-efficiency automated fiber coupling positioning solutions for your silicon photonics, CPO or optical module projects?

We provide full lifecycle technical support including parameter selection, prototype trial testing, process verification and customized structural design. Submit your detailed technical requirements to acquire official quotations and product datasheets right now

Type

Ball Screw Drive / Linear Rail Guided / Recirculating Ball Guided / Crossed Roller Guided / Horizontal Z-axis / Angular Contact Bearing Guided

Table Size(mm)

40-130

Horizontal Load Capacity(KG)

1679-4345

Positioning Repeatability(mm)

±0.03

Effective Stroke(mm)

130-610
